BCU1-D01-0214 | BCU1 COREMAKER Z2 3XD IC BUI
| Cooling |
|
|---|---|
| Tolerance | h7 |
| Coating | BetaUni Iron |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Versatile universal geometry
- Double-guided chip space for ideal chip evacuation
- Polished surfaces for minimised frictional resistance
- Specially curved face cutting edge for higher feed rates and secure centring
|

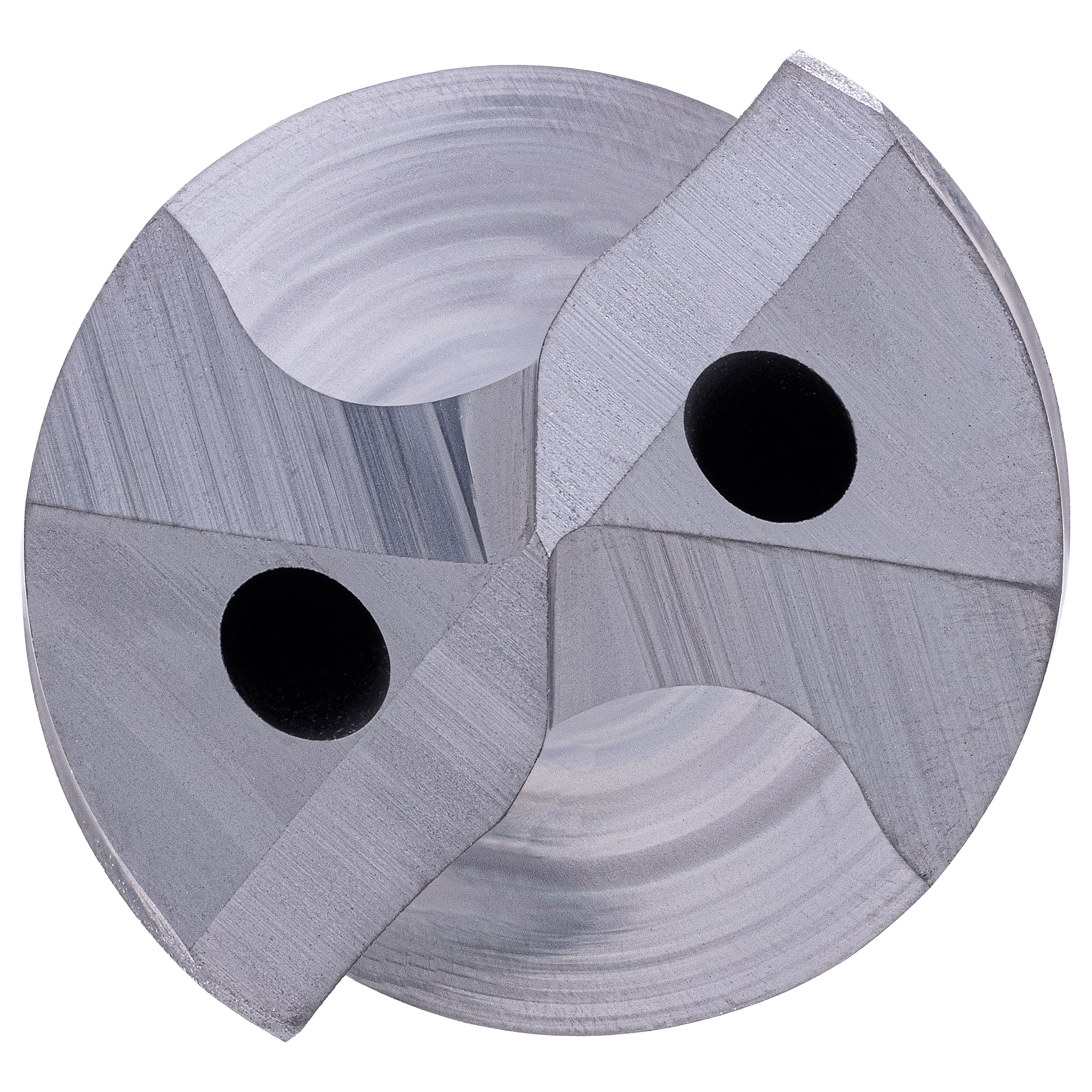

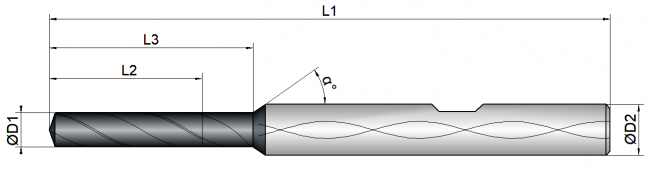

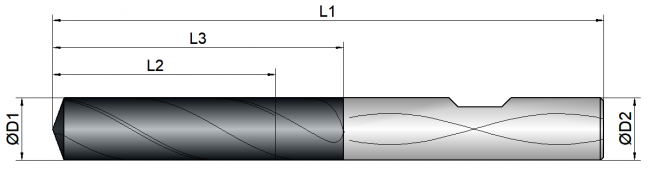

BCU1-D01-0214
|
D1
|
L2
|
L3
|
D2
|
L1
|
||
|---|---|---|---|---|---|---|---|
| 1/8 | 3.175 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3 | 3.0 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3/8 | 9.525 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 3/16 | 4.762 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 3,1 | 3.1 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3,2 | 3.2 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3,3 | 3.3 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3,4 | 3.4 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3,5 | 3.5 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3,6 | 3.6 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3,7 | 3.7 | 15.0 | 20.0 | 6.0 | 62.0 |
|
|
| 3,8 | 3.8 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 3,9 | 3.9 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4 | 4.0 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,1 | 4.1 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,2 | 4.2 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,3 | 4.3 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,4 | 4.4 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,5 | 4.5 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,6 | 4.6 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,7 | 4.7 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 4,8 | 4.8 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 4,9 | 4.9 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5 | 5.0 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5/16 | 7.938 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 5/32 | 3.969 | 18.0 | 24.0 | 6.0 | 66.0 |
|
|
| 5,1 | 5.1 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,2 | 5.2 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,3 | 5.3 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,4 | 5.4 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,5 | 5.5 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,6 | 5.6 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,7 | 5.7 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,8 | 5.8 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 5,9 | 5.9 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 6 | 6.0 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 6,1 | 6.1 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,15 | 6.15 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,2 | 6.2 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,3 | 6.3 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,35 | 6.35 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,4 | 6.4 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,5 | 6.5 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,6 | 6.6 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,7 | 6.7 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,8 | 6.8 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 6,9 | 6.9 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 7 | 7.0 | 25.0 | 34.0 | 8.0 | 79.0 |
|
|
| 7/16 | 11.112 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 7/32 | 5.556 | 21.0 | 28.0 | 6.0 | 66.0 |
|
|
| 7,1 | 7.1 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,2 | 7.2 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,3 | 7.3 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,4 | 7.4 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,5 | 7.5 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,6 | 7.6 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,7 | 7.7 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,8 | 7.8 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 7,9 | 7.9 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 8 | 8.0 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 8,1 | 8.1 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,2 | 8.2 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,3 | 8.3 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,4 | 8.4 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,5 | 8.5 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,6 | 8.6 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,7 | 8.7 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,8 | 8.8 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 8,9 | 8.9 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9 | 9.0 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9/32 | 7.144 | 31.0 | 41.0 | 8.0 | 79.0 |
|
|
| 9,1 | 9.1 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,2 | 9.2 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,3 | 9.3 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,4 | 9.4 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,5 | 9.5 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,6 | 9.6 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,7 | 9.7 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,8 | 9.8 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 9,9 | 9.9 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 10 | 10.0 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 10,1 | 10.1 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,2 | 10.2 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,3 | 10.3 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,4 | 10.4 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,5 | 10.5 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,6 | 10.6 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,7 | 10.7 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,8 | 10.8 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 10,9 | 10.9 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11 | 11.0 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11/32 | 8.731 | 36.0 | 47.0 | 10.0 | 89.0 |
|
|
| 11,1 | 11.1 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,2 | 11.2 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,3 | 11.3 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,4 | 11.4 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,5 | 11.5 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,6 | 11.6 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,7 | 11.7 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,8 | 11.8 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 11,9 | 11.9 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 12 | 12.0 | 41.0 | 55.0 | 12.0 | 102.0 |
|
|
| 13/32 | 10.319 | 41.0 | 55.0 | 12.0 | 102.0 |
|
