Basic

BCU1-M01-0104 | BCU1 Performmaker Z3 1,5xD BUI

Cooling air-cooled dry water min water max
Tolerance e8
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy High Performance Cutting Universal machining
Applications Trimming Full slot X helical
Features Weldon HB Unequal tooth pitch Center Cutting
  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation
Suitability for
Roughing Finishing


BCU1-M01-0104
BCU1-M01-0104
BCU1-M01-0104
BCU1-M01-0104
BCU1-M01-0104

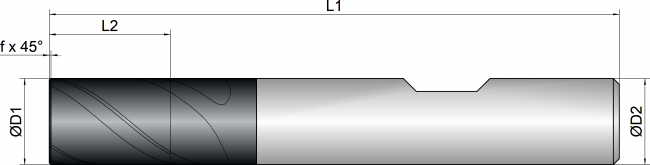

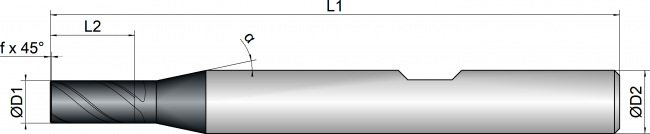

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
α
winkel_alpha
3 3.0 6.0 54.0 6.0 3 0.10 45 12 green
4 4.0 8.0 54.0 6.0 3 0.10 45 12 green
5 5.0 9.0 54.0 6.0 3 0.20 45 12 green
6 6.0 10.0 54.0 6.0 3 0.20 45 - green
8 8.0 12.0 58.0 8.0 3 0.20 45 - green
10 10.0 14.0 66.0 10.0 3 0.20 45 - green
12 12.0 16.0 73.0 12.0 3 0.20 45 - green
16 16.0 22.0 82.0 16.0 3 0.30 45 - green
20 20.0 26.0 92.0 20.0 3 0.30 45 - green
