BCU1-M01-0113 | BCU1 Performmaker Z3 2xD BUI
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | BetaUni Iron |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Angepasster Freiwinkel für eine prozesssichere Zerspanung
- Ungleichteilung für ruhigen Lauf
- Große Spankammern für gute Abfuhr der Späne
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

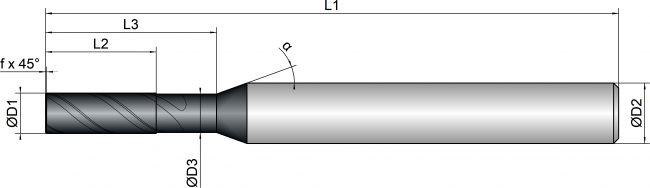

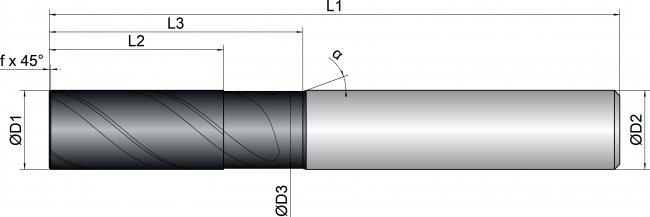

BCU1-M01-0113
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2,0 | 1,8 | 5,0 | 10,0 | 57,0 | 6,0 | 3 | 0,10 | 45 | 20 |
|
|
| 3 | 3,0 | 2,8 | 8,0 | 13,0 | 57,0 | 6,0 | 3 | 0,10 | 45 | 20 |
|
|
| 4 | 4,0 | 3,8 | 11,0 | 17,0 | 57,0 | 6,0 | 3 | 0,10 | 45 | 20 |
|
|
| 5 | 5,0 | 4,8 | 13,0 | 20,0 | 57,0 | 6,0 | 3 | 0,20 | 45 | 20 |
|
|
| 6 | 6,0 | 5,8 | 13,0 | 20,0 | 57,0 | 6,0 | 3 | 0,20 | 45 | 20 |
|
|
| 8 | 8,0 | 7,7 | 19,0 | 25,0 | 63,0 | 8,0 | 3 | 0,20 | 45 | 20 |
|
|
| 10 | 10,0 | 9,7 | 22,0 | 32,0 | 72,0 | 10,0 | 3 | 0,20 | 45 | 20 |
|
|
| 12 | 12,0 | 11,6 | 26,0 | 38,0 | 83,0 | 12,0 | 3 | 0,20 | 45 | 20 |
|
|
| 16 | 16,0 | 15,5 | 32,0 | 44,0 | 92,0 | 16,0 | 3 | 0,30 | 45 | 20 |
|
|
| 20 | 20,0 | 19,5 | 41,0 | 54,0 | 104,0 | 20,0 | 3 | 0,30 | 45 | 20 |
|
