Basic

BCU1-M01-0124 | BCU1 Performmaker Z3 3xD BUI

Cooling air-cooled dry water min water max
Tolerance e8
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy High Performance Cutting Universal machining
Applications Trimming Full slot X helical

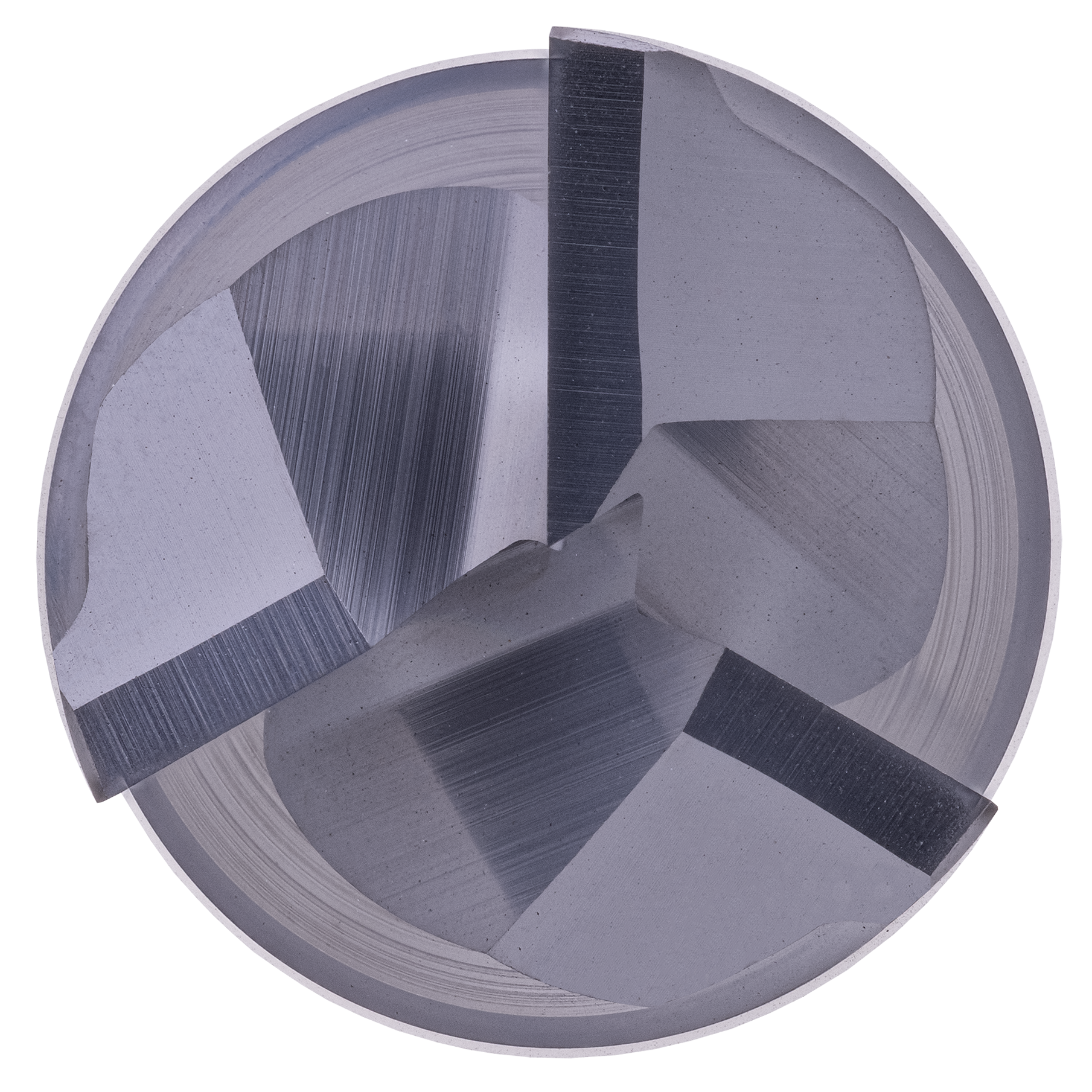

Features Weldon HB Unequal tooth pitch Center Cutting
  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation
Suitability for
Roughing Finishing


BCU1-M01-0124
BCU1-M01-0124
BCU1-M01-0124
BCU1-M01-0124
BCU1-M01-0124

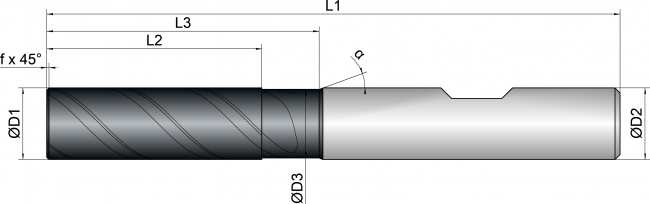

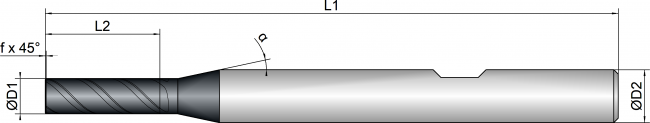

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
α
winkel_alpha
4 4.0 - 13.0 - 65.0 6.0 3 0.10 45 12 green
5 5.0 - 16.0 - 65.0 6.0 3 0.20 45 12 green
6 6.0 5.6 18.0 24.0 65.0 6.0 3 0.20 45 20 red
8 8.0 7.6 24.0 30.0 70.0 8.0 3 0.20 45 20 green
10 10.0 9.6 30.0 38.0 80.0 10.0 3 0.20 45 20 green
12 12.0 11.4 36.0 46.0 93.0 12.0 3 0.20 45 20 green
16 16.0 15.4 48.0 58.0 110.0 16.0 3 0.30 45 20 green
20 20.0 19.4 60.0 74.0 126.0 20.0 3 0.30 45 20 green
