BCU1-M01-0314 | BCU1 Performmaker Z5 2xD BUI

Cooling air-cooled dry water min water max
Tolerance e8
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting Universal machining
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch 2xD Dynamic helical pitch Center Cutting Corner bevel
  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running

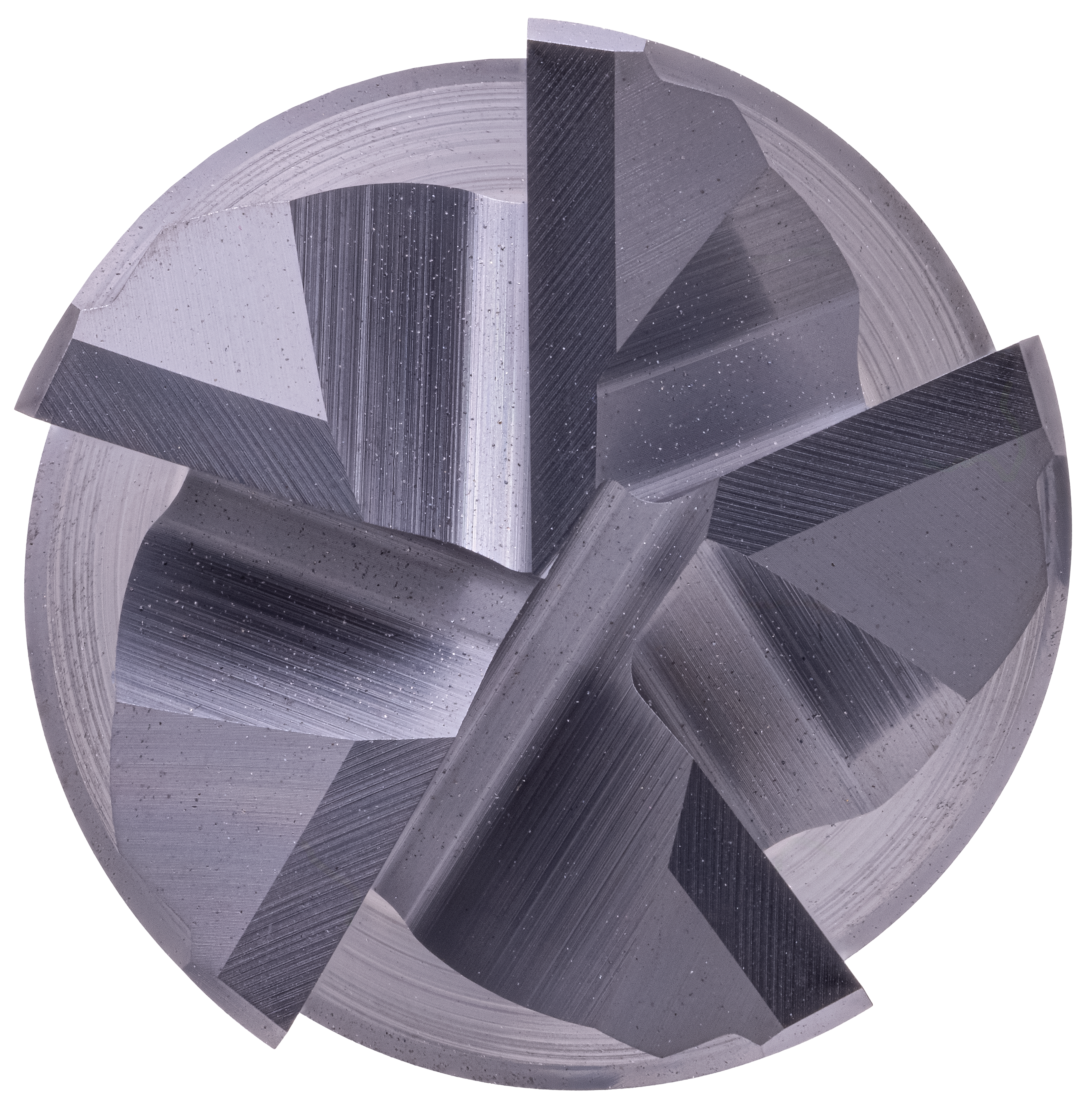

  • 5 cutting edges for high feedrates
Suitability for
Roughing Finishing


BCU1-M01-0314
BCU1-M01-0314
BCU1-M01-0314
BCU1-M01-0314
BCU1-M01-0314

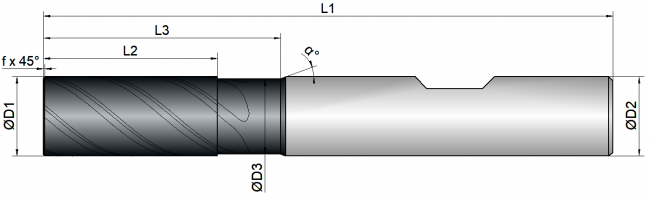

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
α
winkel_alpha
6 6.0 5.5 13.0 20.0 57.0 6.0 5 0.15 40 20 green

8 8.0 7.5 19.0 25.0 63.0 8.0 5 0.20 40 20 green

10 10.0 9.5 22.0 30.0 72.0 10.0 5 0.20 40 20 green

12 12.0 11.0 26.0 36.0 83.0 12.0 5 0.25 40 20 green

16 16.0 15.0 34.0 42.0 92.0 16.0 5 0.30 40 20 green

20 20.0 19.0 42.0 52.0 104.0 20.0 5 0.30 40 20 orange
