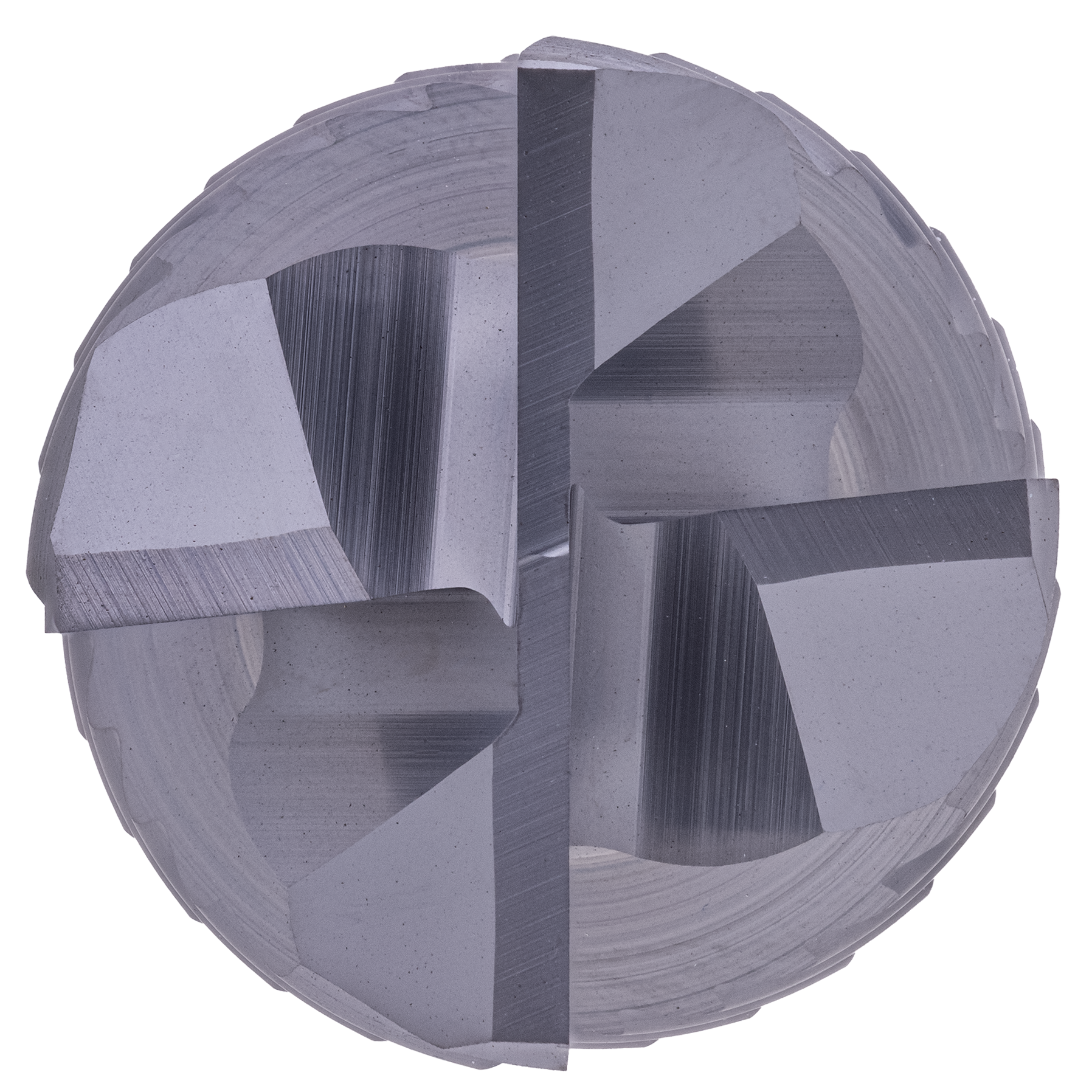

BCU1-M02-0113 | BCU1 Slotmaker Z4 3xD BUI

Cooling air-cooled dry water min water max
Tolerance e8
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy High Performance Cutting Universal machining
Applications Trimming Full slot X helical
Features No Weldon Unequal tooth pitch Serrated edge 3xD Center Cutting
  • Optimized chip chambers for a large chip volume
  • Adapted roughing teeth for small chips
  • For roughing under HPC conditions
Suitability for
Roughing Finishing


BCU1-M02-0113
BCU1-M02-0113
BCU1-M02-0113
BCU1-M02-0113
BCU1-M02-0113

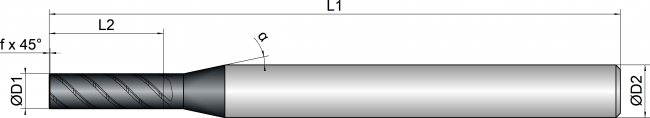

D1
schneiden_durchmesser

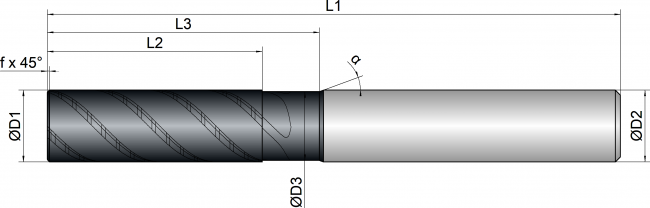

D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
α
winkel_alpha
4 4.0 - 13.0 - 65.0 6.0 4 0.10 45 12 red
5 5.0 - 16.0 - 65.0 6.0 4 0.20 45 12 red
6 6.0 5.6 18.0 24.0 65.0 6.0 4 0.20 45 20 red
8 8.0 7.6 24.0 30.0 70.0 8.0 4 0.20 45 20 red
10 10.0 9.6 30.0 38.0 80.0 10.0 4 0.32 45 20 red
12 12.0 11.4 36.0 46.0 93.0 12.0 4 0.32 45 20 red
16 16.0 15.4 48.0 58.0 110.0 16.0 4 0.32 45 20 red
20 20.0 19.4 60.0 74.0 126.0 20.0 4 0.50 45 20 red
