Basic

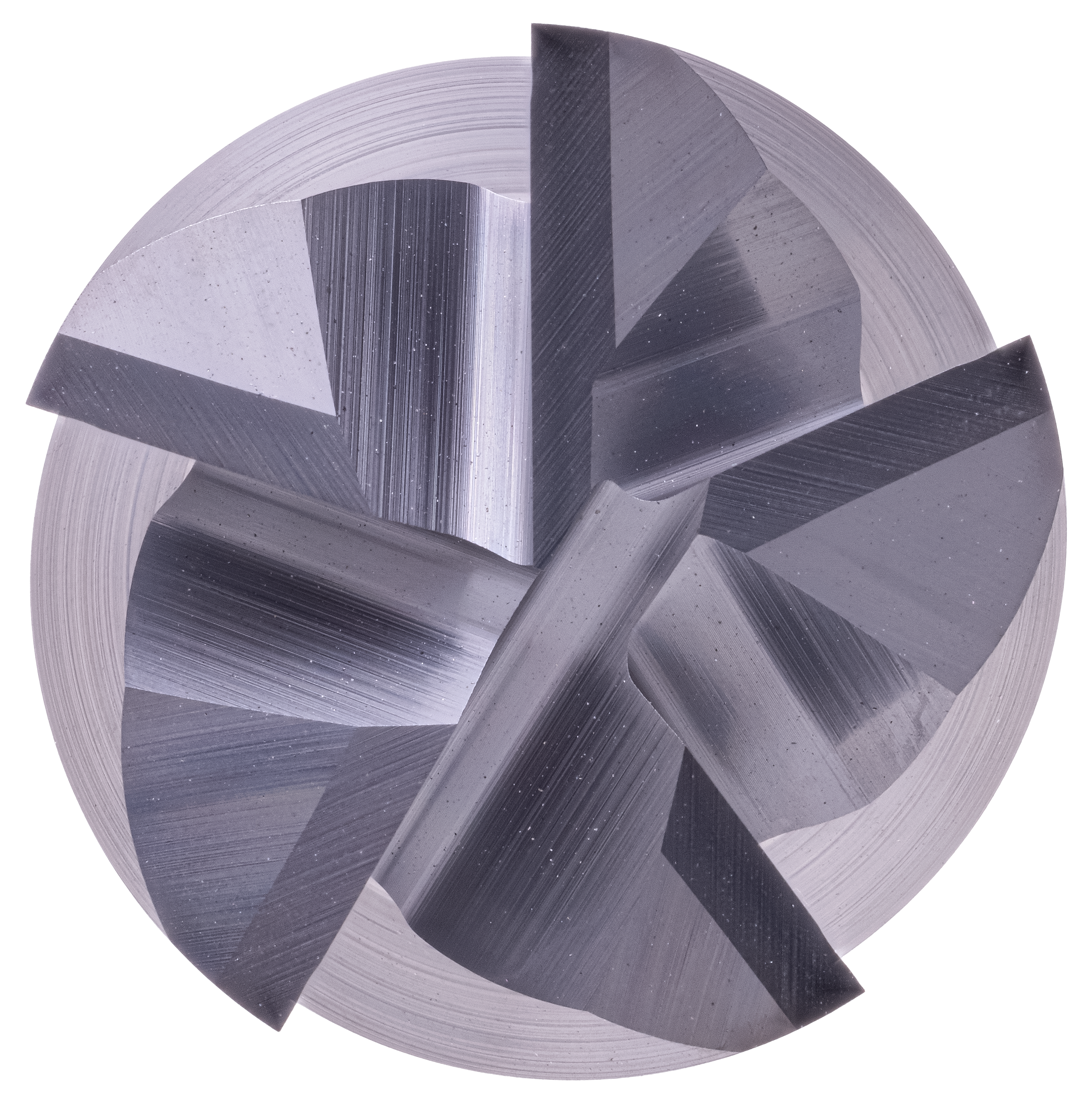

BCU1-M04-0123 | BCU1 Mirrormaker Z5 3.5xD BUI

Cooling air-cooled dry water min water max
Tolerance e8
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy High Performance Cutting Universal machining
Applications Trimming X
Features No Weldon Unequal tooth pitch Dynamic helical pitch Center Cutting 3,5xD Sharp-edged
  • 5 cutting edges for solid finishing surfaces in different materials
  • Unequal tooth pitch for smooth running
  • Groove profile for the removal of long chips
Suitability for
Roughing Finishing


BCU1-M04-0123
BCU1-M04-0123
BCU1-M04-0123
BCU1-M04-0123
BCU1-M04-0123

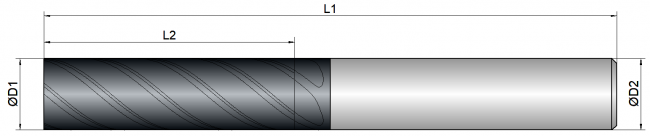

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
6 6.0 22.0 65.0 6.0 5 40 green

8 8.0 28.0 70.0 8.0 5 40 green

10 10.0 35.0 80.0 10.0 5 40 green

12 12.0 43.0 93.0 12.0 5 40 orange

16 16.0 56.0 110.0 16.0 5 40 red
