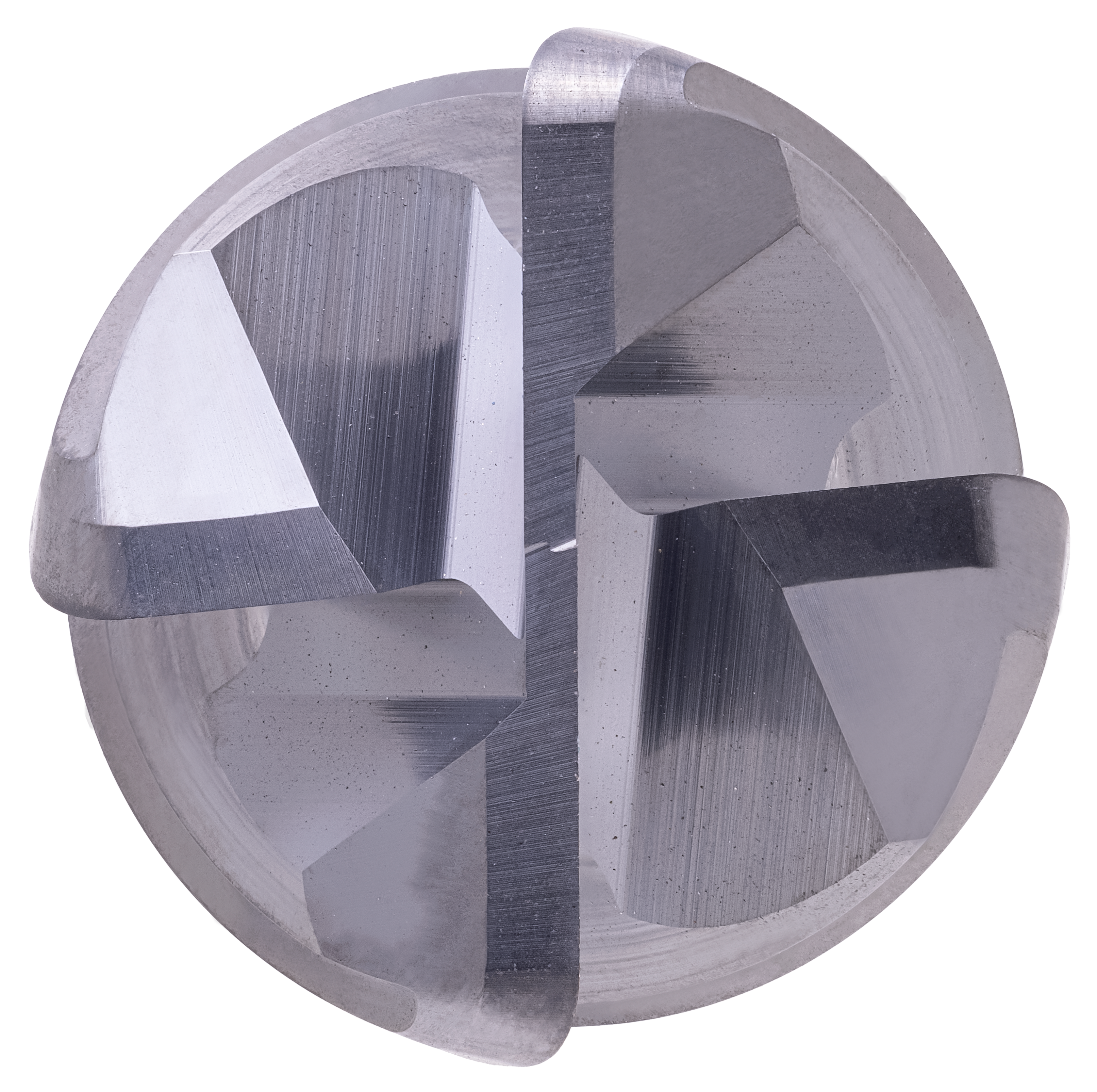

BCU1-M06-0124 | BCU1 Formmaker Z4 2xD BUI
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | BetaUni Iron |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Angepasster Freiwinkel für eine prozesssichere Zerspanung
- Ungleichteilung für ruhigen Lauf
- Große Spankammern für eine gute Spanabfuhr
- Mit großen Eckenradien zum Konturfräsen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

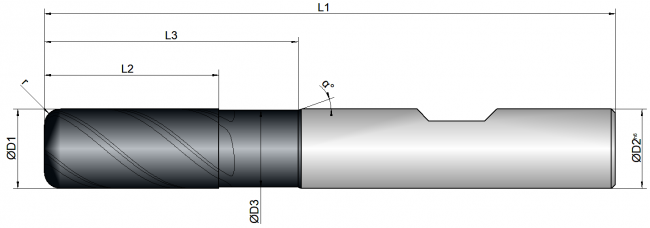

BCU1-M06-0124
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6/0,5 | 6,0 | 5,8 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 0,50 | 40 | 20 |
|
|
| 6/1 | 6,0 | 5,8 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 1,00 | 40 | 20 |
|
|
| 6/1,5 | 6,0 | 5,8 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 1,50 | 40 | 20 |
|
|
| 8/0,5 | 8,0 | 7,7 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 0,50 | 40 | 20 |
|
|
| 8/1 | 8,0 | 7,7 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 1,00 | 40 | 20 |
|
|
| 8/2 | 8,0 | 7,7 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 2,00 | 40 | 20 |
|
|
| 8/3 | 8,0 | 7,7 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 3,00 | 40 | 20 |
|
|
| 10/0,5 | 10,0 | 9,7 | 22,0 | 32,0 | 72,0 | 10,0 | 4 | 0,50 | 40 | 20 |
|
|
| 10/1 | 10,0 | 9,7 | 22,0 | 32,0 | 72,0 | 10,0 | 4 | 1,00 | 40 | 20 |
|
|
| 10/2 | 10,0 | 9,7 | 22,0 | 32,0 | 72,0 | 10,0 | 4 | 2,00 | 40 | 20 |
|
|
| 10/3 | 10,0 | 9,7 | 22,0 | 32,0 | 72,0 | 10,0 | 4 | 3,00 | 40 | 20 |
|
|
| 12/0,5 | 12,0 | 11,6 | 26,0 | 38,0 | 83,0 | 12,0 | 4 | 0,50 | 40 | 20 |
|
|
| 12/1 | 12,0 | 11,6 | 26,0 | 38,0 | 83,0 | 12,0 | 4 | 1,00 | 40 | 20 |
|
|
| 12/2 | 12,0 | 11,6 | 26,0 | 38,0 | 83,0 | 12,0 | 4 | 2,00 | 40 | 20 |
|
|
| 12/3 | 12,0 | 11,6 | 26,0 | 38,0 | 83,0 | 12,0 | 4 | 3,00 | 40 | 20 |
|
|
| 16/0,5 | 16,0 | 15,5 | 32,0 | 44,0 | 92,0 | 16,0 | 4 | 0,50 | 40 | 20 |
|
|
| 16/1 | 16,0 | 15,5 | 32,0 | 44,0 | 92,0 | 16,0 | 4 | 1,00 | 40 | 20 |
|
|
| 16/2 | 16,0 | 15,5 | 32,0 | 44,0 | 92,0 | 16,0 | 4 | 2,00 | 40 | 20 |
|
|
| 16/3 | 16,0 | 15,5 | 32,0 | 44,0 | 92,0 | 16,0 | 4 | 3,00 | 40 | 20 |
|
|
| 20/1 | 20,0 | 19,5 | 41,0 | 54,0 | 104,0 | 20,0 | 4 | 1,00 | 40 | 20 |
|
|
| 20/2 | 20,0 | 19,5 | 41,0 | 54,0 | 104,0 | 20,0 | 4 | 2,00 | 40 | 20 |
|
|
| 20/3 | 20,0 | 19,5 | 41,0 | 54,0 | 104,0 | 20,0 | 4 | 3,00 | 40 | 20 |
|
|
| 20/4 | 20,0 | 19,5 | 41,0 | 54,0 | 104,0 | 20,0 | 4 | 4,00 | 40 | 20 |
|
