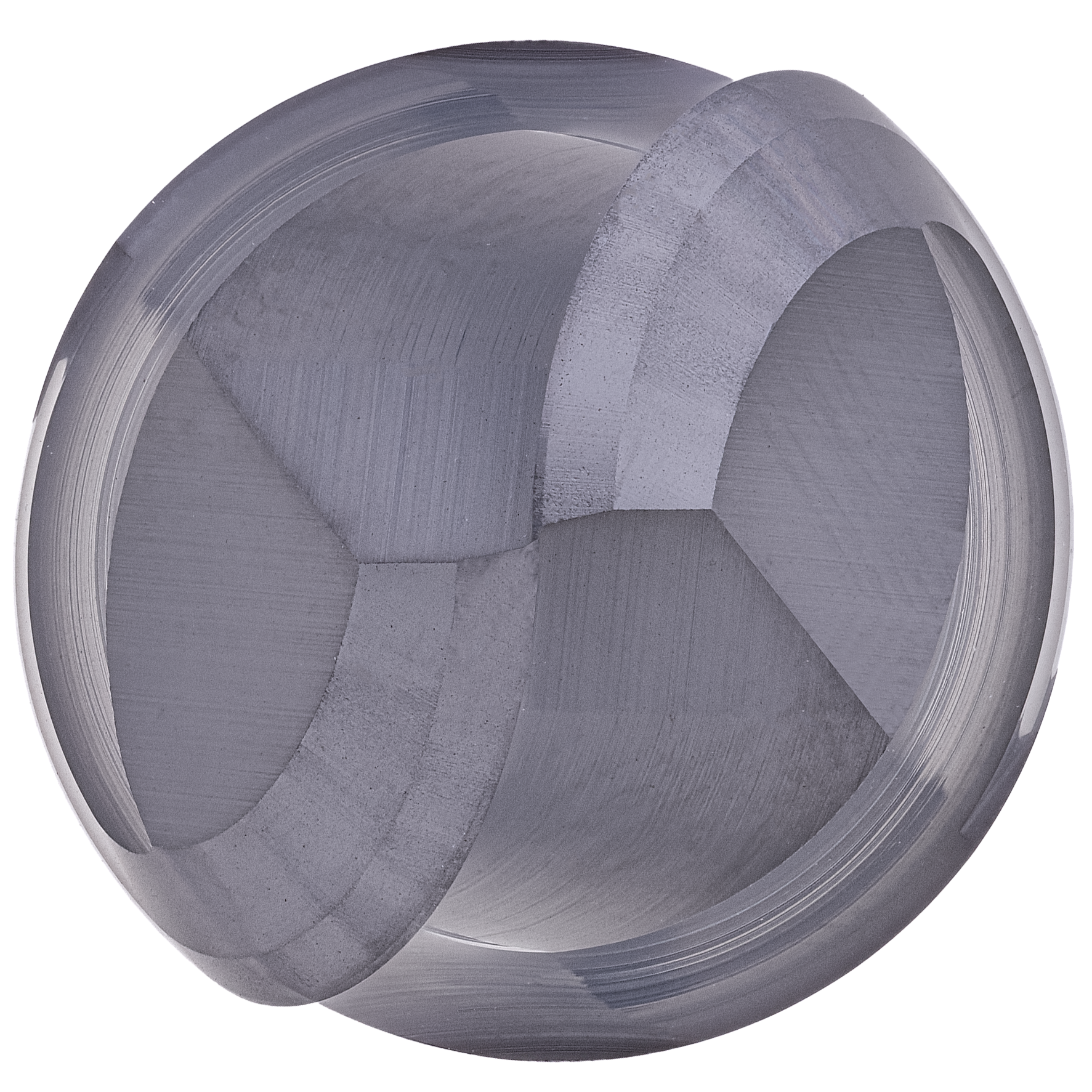

BCU1-M08-0053 | BCU1 Rowmaker Z2 1xD short BUI
| Kühlung |
|
|---|---|
| Toleranz | f8 |
| Beschichtung | BetaUni Iron |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Geometrie der Stirnschneide ausgelegt für weichen und gleichmäßigen Schnitt
- Angepasste Spankammern zum Schruppen und Schlichten
- Kurze Ausführung
- Zur Nass- und Trockenbearbeitung geeignet
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

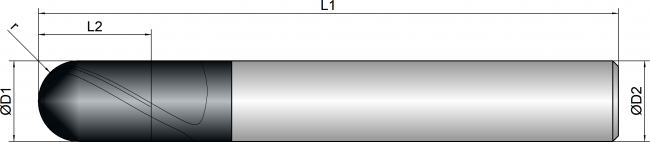

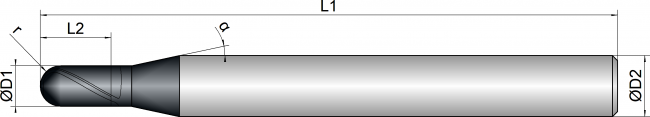

BCU1-M08-0053
|
D1
|
L2
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 | 0,5 | 1,5 | 57,0 | 6,0 | 2 | 0,25 | 30 | 12 |
|
|
| 1 | 1,0 | 2,0 | 57,0 | 6,0 | 2 | 0,50 | 30 | 12 |
|
|
| 1,5 | 1,5 | 3,0 | 57,0 | 6,0 | 2 | 0,75 | 30 | 12 |
|
|
| 2 | 2,0 | 4,0 | 57,0 | 6,0 | 2 | 1,00 | 30 | 12 |
|
|
| 2,5 | 2,5 | 5,0 | 57,0 | 6,0 | 2 | 1,25 | 30 | 12 |
|
|
| 3 | 3,0 | 6,0 | 57,0 | 6,0 | 2 | 1,50 | 30 | 12 |
|
|
| 4 | 4,0 | 7,0 | 57,0 | 6,0 | 2 | 2,00 | 30 | 12 |
|
|
| 5 | 5,0 | 8,0 | 57,0 | 6,0 | 2 | 2,50 | 30 | 12 |
|
|
| 6 | 6,0 | 10,0 | 57,0 | 6,0 | 2 | 3,00 | 30 | - |
|
|
| 8 | 8,0 | 12,0 | 63,0 | 8,0 | 2 | 4,00 | 30 | - |
|
|
| 10 | 10,0 | 14,0 | 72,0 | 10,0 | 2 | 5,00 | 30 | - |
|
|
| 12 | 12,0 | 16,0 | 83,0 | 12,0 | 2 | 6,00 | 30 | - |
|
