Basic

BCU1-M08-0073 | BCU1 Rowmaker Z2 1,5xD overlong BUI

Cooling air-cooled dry water min water max
Tolerance f8
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy High Speed Cutting Universal machining
Applications Engraving Multipass milling X, Y, Z
Features No Weldon Center Cutting

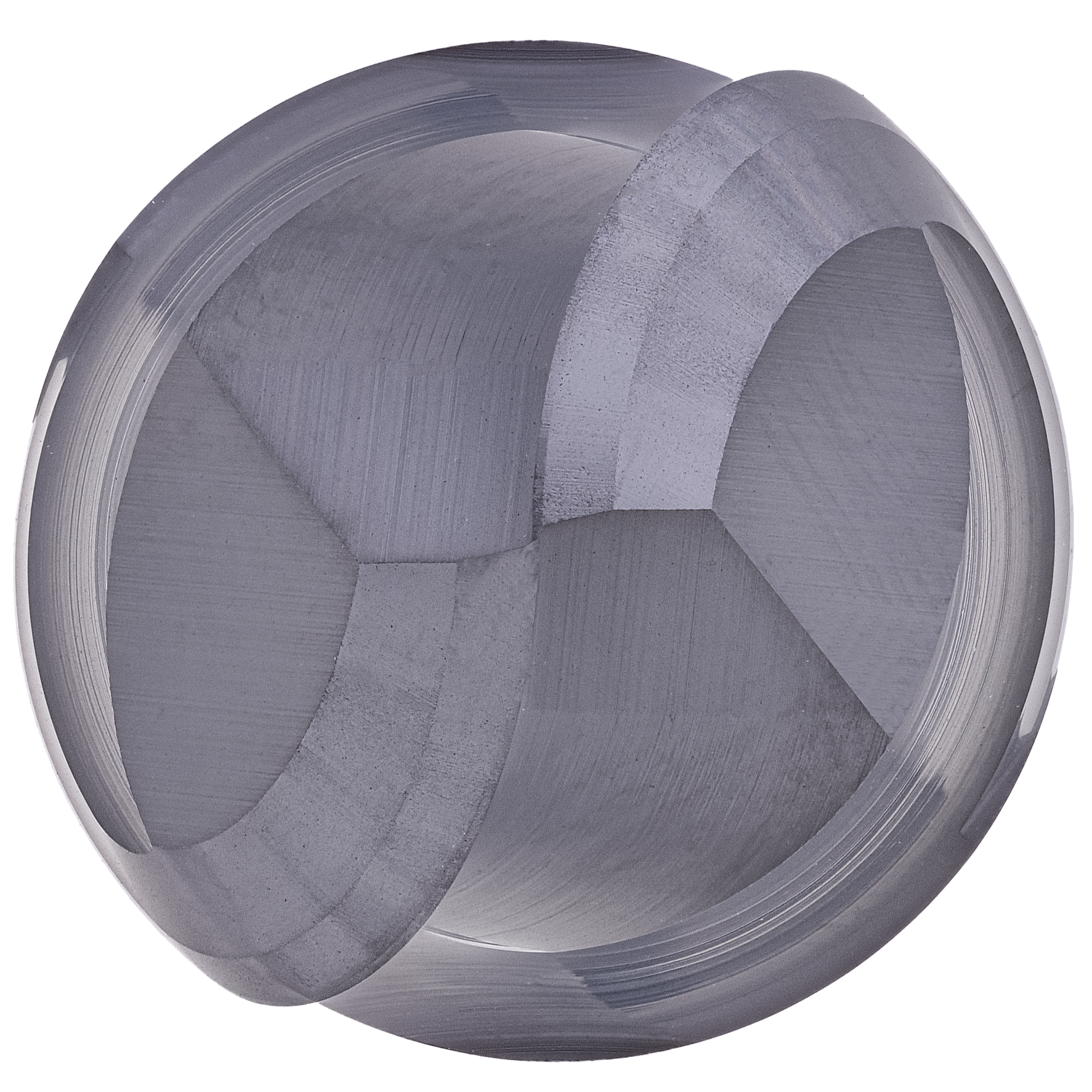

  • Geometry of the face cutting edge designed for a soft and even cut
  • Adapted chip chambers for roughing and finishing
  • Overlong version
  • Suitable for wet and dry machining
Suitability for
Roughing Finishing


BCU1-M08-0073
BCU1-M08-0073
BCU1-M08-0073
BCU1-M08-0073
BCU1-M08-0073

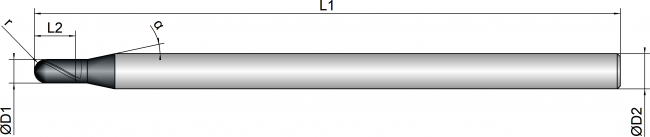

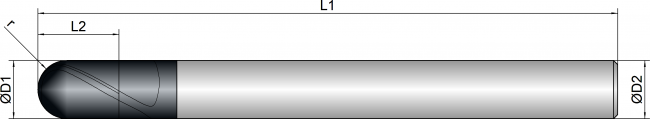

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
1 1.0 2.0 100.0 6.0 2 0.50 30 12 green
1,5 1.5 3.0 100.0 6.0 2 0.75 30 12 red
2 2.0 4.0 100.0 6.0 2 1.00 30 12 red
2,5 2.5 5.0 100.0 6.0 2 1.25 30 12 red
3 3.0 6.0 100.0 6.0 2 1.50 30 12 red
4 4.0 7.0 100.0 6.0 2 2.00 30 12 green
5 5.0 8.0 100.0 6.0 2 2.50 30 12 red
6 6.0 10.0 100.0 6.0 2 3.00 30 - green
8 8.0 12.0 100.0 8.0 2 4.00 30 - green
10 10.0 14.0 100.0 10.0 2 5.00 30 - green
12 12.0 16.0 120.0 12.0 2 6.00 30 - green
