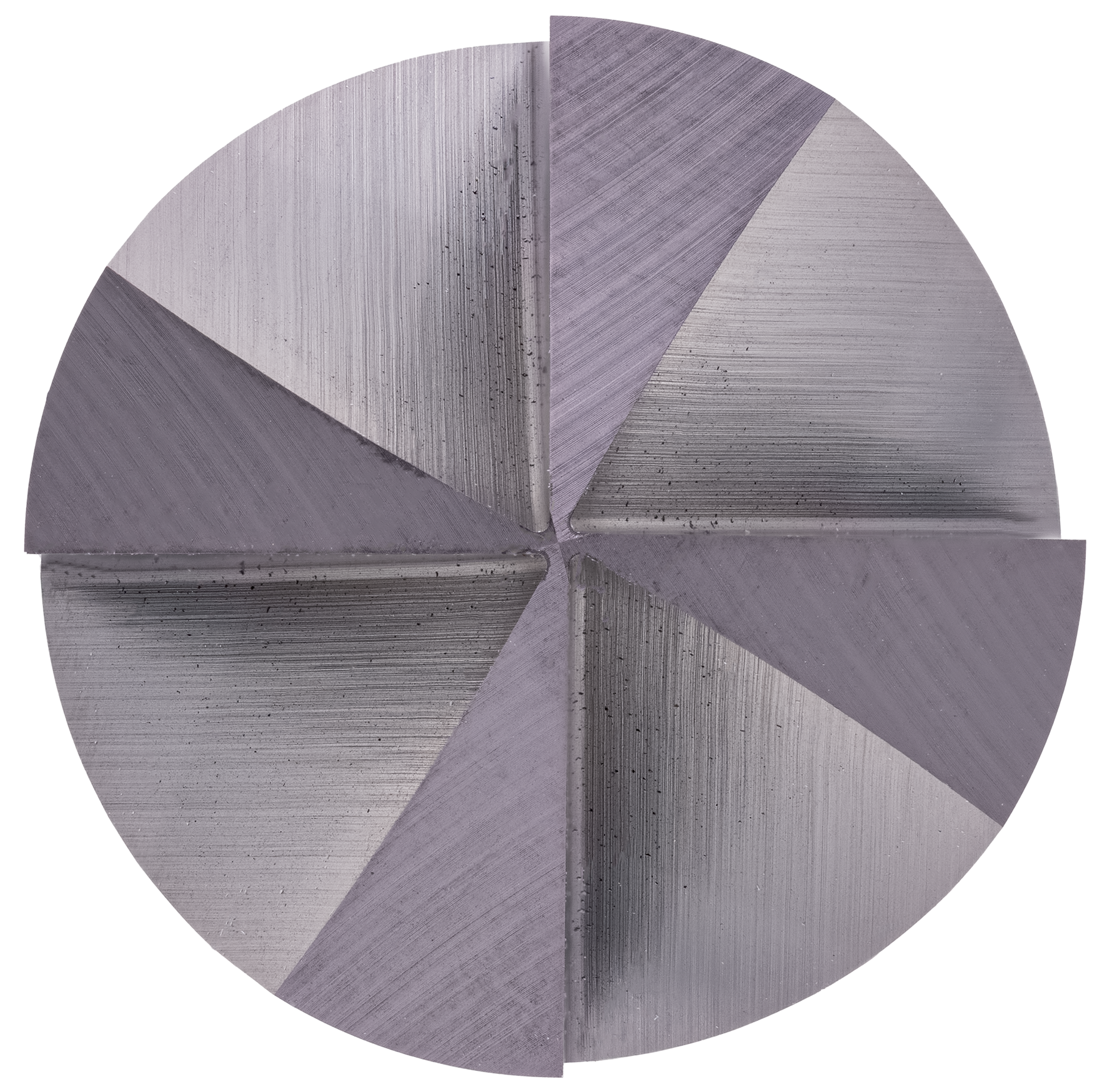

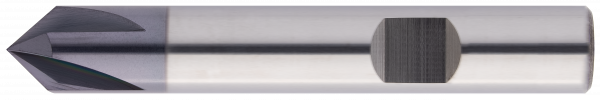

BCU1-M09-0154 | BCU1 Chamfmaker Z4 90° BUI

Cooling air-cooled dry water min water max
Tolerance -
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy Universal machining
Applications Deburring
Features Weldon HB
  • For universal chamfering of work pieces
Suitability for
Roughing Finishing


BCU1-M09-0154
BCU1-M09-0154
BCU1-M09-0154
BCU1-M09-0154
BCU1-M09-0154

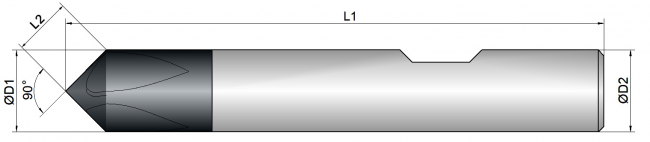

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
6 6.0 4.2 50.0 6.0 4 green

8 8.0 5.6 58.0 8.0 4 green

10 10.0 7.0 66.0 10.0 4 green

12 12.0 8.5 73.0 12.0 4 green

16 16.0 11.2 82.0 16.0 4 green
