Basic

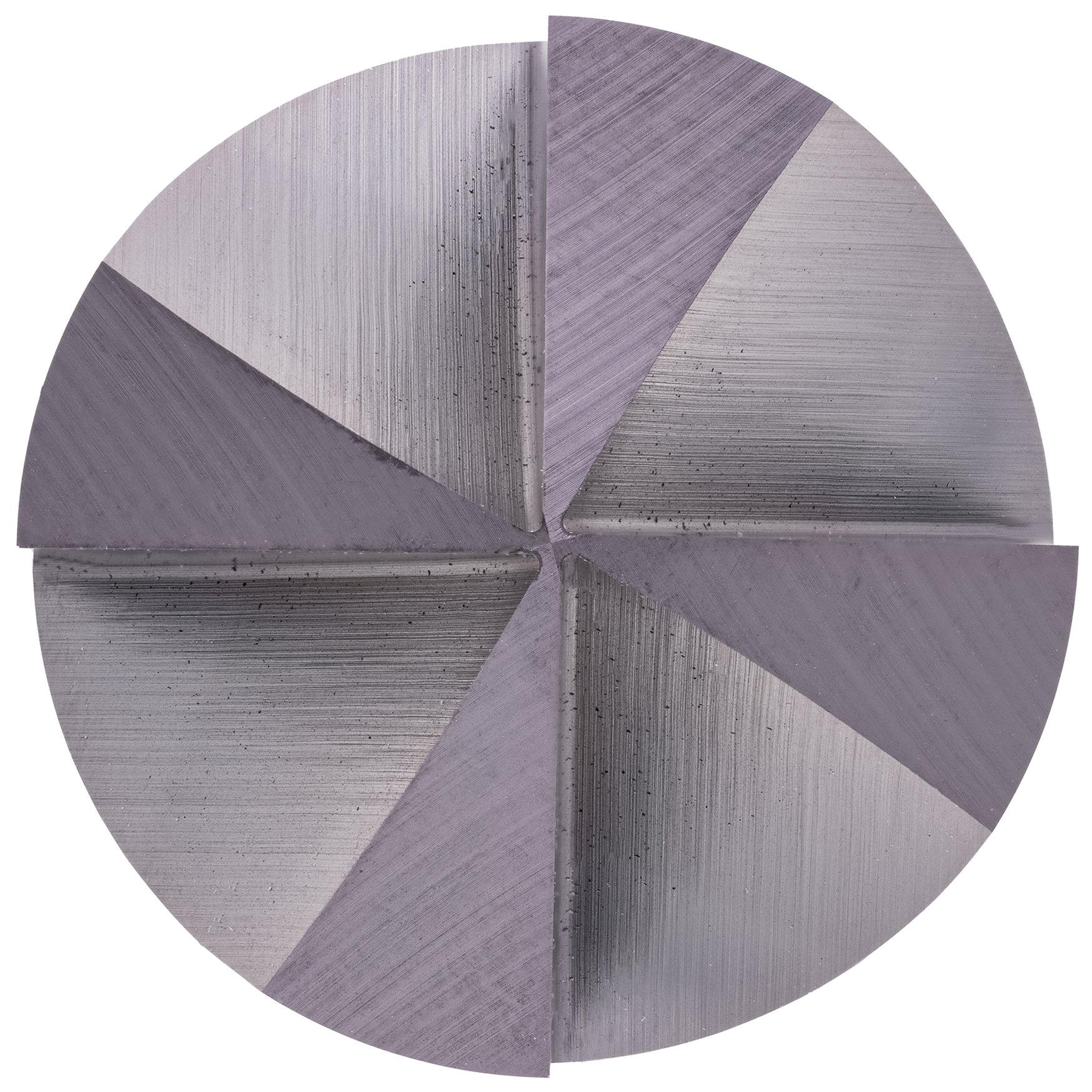

BCU1-M09-0253 | BCU1 Chamfmaker Z4 90° BUI

Cooling air-cooled dry water min water max
Tolerance a9
Coating BetaUni Iron
Downloads Catalog page & Cutting data
interactive Cutting data calculator
Strategy Universal machining
Applications Deburring
Features No Weldon 90° tip
  • For universal chamfering of work pieces
Suitability for
Roughing Finishing


BCU1-M09-0253
BCU1-M09-0253
BCU1-M09-0253
BCU1-M09-0253
BCU1-M09-0253

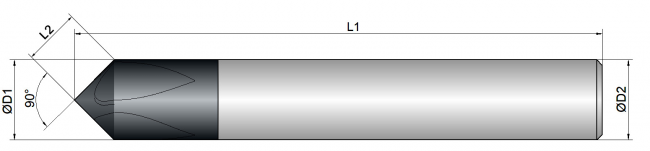

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
4 4.0 2.8 54.0 4.0 4 green

6 6.0 4.2 57.0 6.0 4 green

8 8.0 5.6 63.0 8.0 4 green

10 10.0 7.0 72.0 10.0 4 green

12 12.0 8.5 83.0 12.0 4 green

16 16.0 11.2 92.0 16.0 4 orange
