BCU1-M10-0023 | BCU1 FB Chamfmaker Z4 90° BUI

Cooling air-cooled dry water min water max
Tolerance -
Coating BetaUni Iron
Downloads Catalog page & Cutting data
Strategy Universal machining
Applications Forward and backward deburring
Features No Weldon
  • For universal chamfering of work pieces
  • Forwards and backwards cutting
Suitability for
Roughing Finishing


BCU1-M10-0023
BCU1-M10-0023
BCU1-M10-0023
BCU1-M10-0023
BCU1-M10-0023

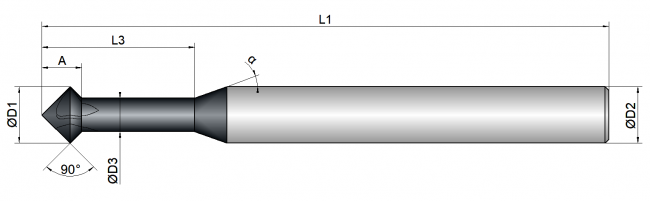

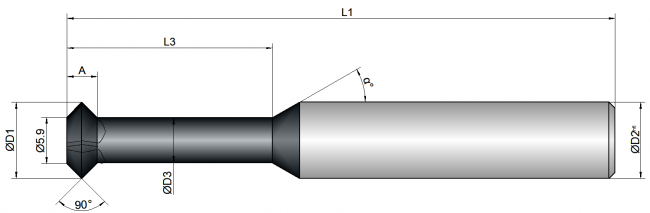

D1
schneiden_durchmesser
D3
freistich_durchmesser
A
gesamt_fasenlaenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
α
winkel_alpha
2 2.0 1.0 1.5 9.5 50.0 4.0 4 20 green

3 3.0 2.2 2.0 12.0 50.0 4.0 4 20 green

4 4.0 2.9 2.5 12.5 50.0 4.0 4 20 green

5 5.0 3.9 3.0 18.0 65.0 6.0 4 20 green

6 6.0 3.9 4.0 19.0 65.0 6.0 4 20 green

8 8.0 5.9 2.5 22.5 70.0 8.0 4 30 green

10 10.0 5.9 4.0 27.0 72.0 10.0 4 30 green

12 12.0 5.9 6.0 29.0 73.0 12.0 4 30 green
