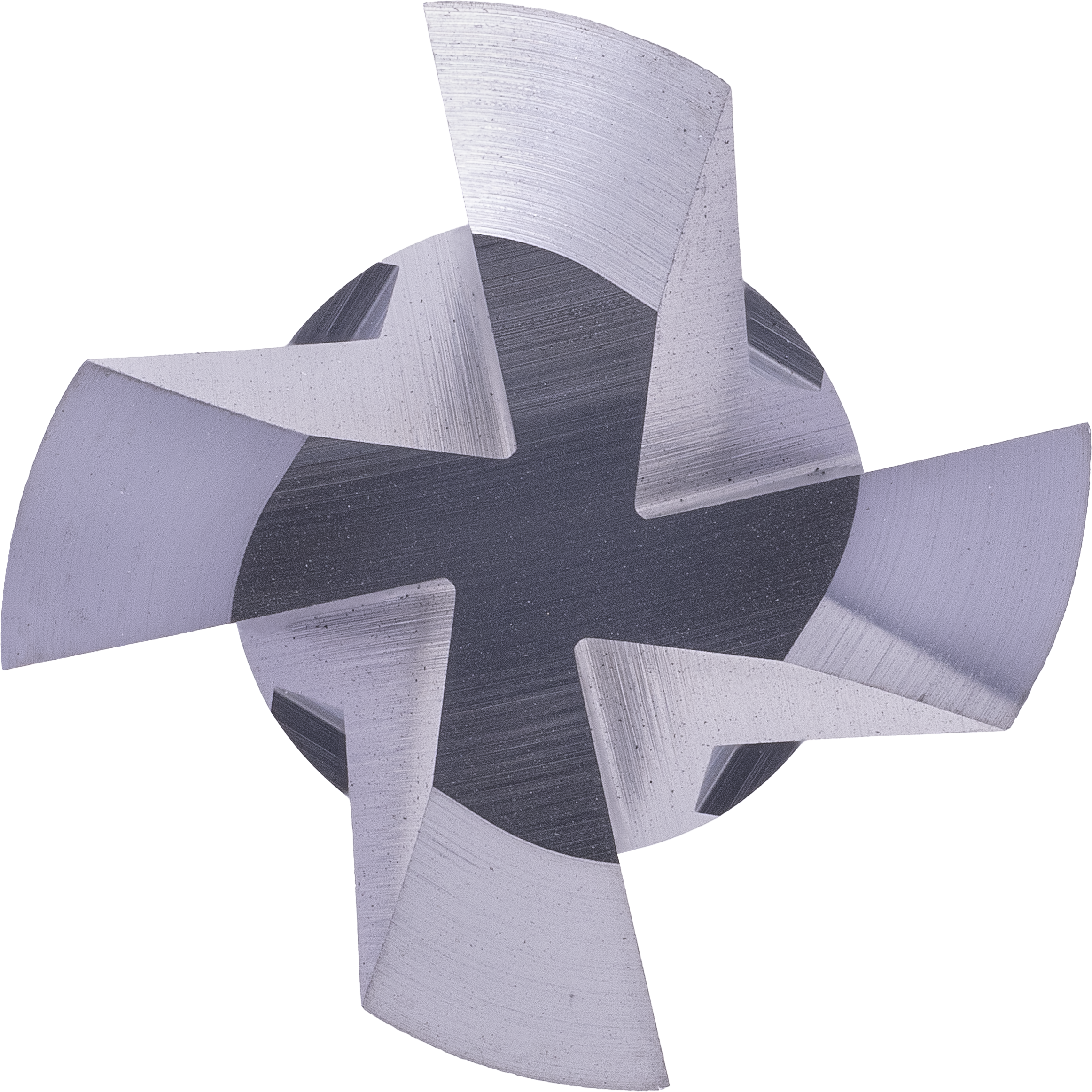

BCU1-M10-0123 | BCU1 FB Chamfmaker Z4 90° BUI
| Cooling |
|
|---|---|
| Tolerance | rs |
| Coating | BetaUni Iron |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- For universal chamfering of work pieces
- Forwards and backwards cutting
- Variant made of blank form for deep cavities
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

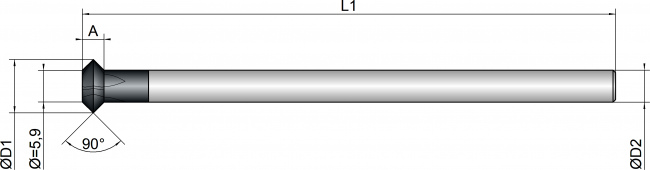

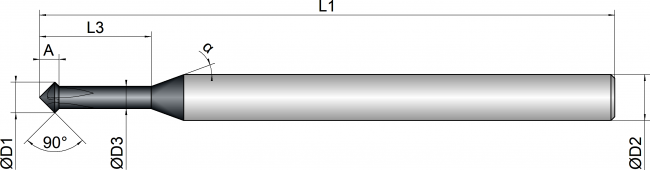

BCU1-M10-0123
|
D1
|
D3
|
A
|
L3
|
L1
|
D2
|
z
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.0 | 2.2 | 2.0 | 10.0 | 75.0 | 4.0 | 4 | 20 |
|
|
| 3,8 | 3.8 | 2.9 | 2.7 | 13.0 | 75.0 | 4.0 | 4 | 20 |
|
|
| 4 | 4.0 | 2.9 | 2.7 | 13.0 | 75.0 | 4.0 | 4 | 20 |
|
|
| 4,8 | 4.8 | 3.9 | 3.0 | 15.0 | 75.0 | 5.0 | 4 | 20 |
|
|
| 5 | 5.0 | 3.9 | 3.0 | 15.0 | 75.0 | 5.0 | 4 | 20 |
|
|
| 5,8 | 5.8 | 3.9 | 4.0 | 15.0 | 100.0 | 6.0 | 4 | 20 |
|
|
| 6 | 6.0 | 3.9 | 4.0 | 15.0 | 100.0 | 6.0 | 4 | 20 |
|
|
| 7,8 | 7.8 | - | 2.0 | - | 100.0 | 6.0 | 4 | - |
|
|
| 8 | 8.0 | - | 2.0 | - | 100.0 | 6.0 | 4 | - |
|
|
| 9,8 | 9.8 | - | 4.0 | - | 100.0 | 6.0 | 4 | - |
|
|
| 10 | 10.0 | - | 4.0 | - | 100.0 | 6.0 | 4 | - |
|
|
| 11,8 | 11.8 | - | 6.0 | - | 100.0 | 6.0 | 4 | - |
|
|
| 12 | 12.0 | - | 6.0 | - | 100.0 | 6.0 | 4 | - |
|
