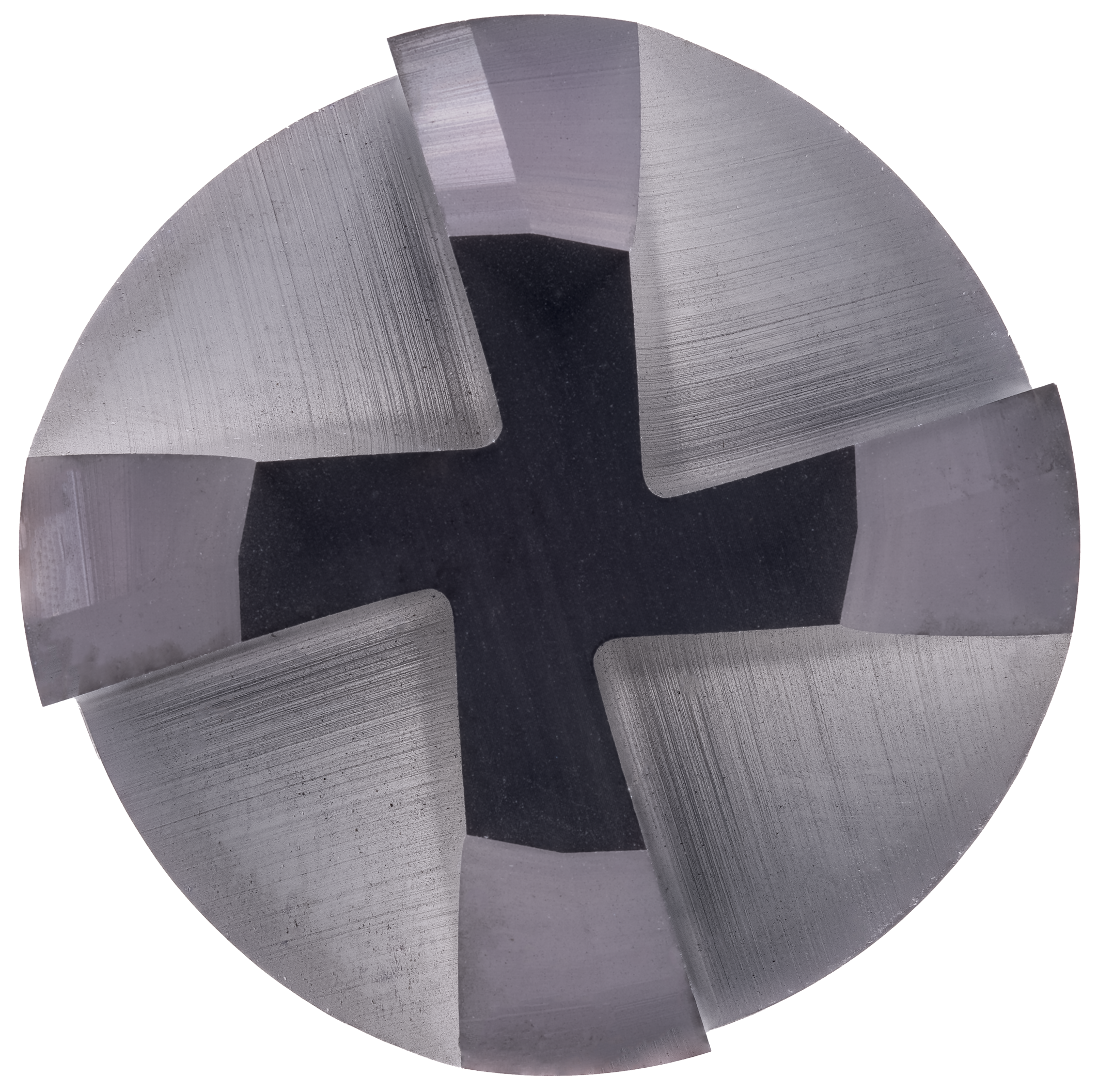

BCU1-M11-0023 | BCU1 Roundmaker Z4 BUI
| Kühlung |
|
|---|---|
| Toleranz | V1 |
| Beschichtung | BetaUni Iron |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Zur universellen Herstellung von Radien an Bauteilen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

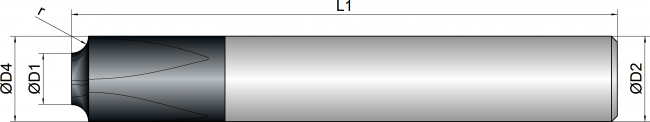

BCU1-M11-0023
|
r
|
D1
|
D4
|
L1
|
D2
|
z
|
||
|---|---|---|---|---|---|---|---|---|
| 3/0,5 | 0,50 | 3,0 | 4,0 | 50,0 | 4,0 | 4 |
|
|
| 3,2/0,4 | 0,40 | 3,2 | 4,0 | 50,0 | 4,0 | 4 |
|
|
| 3,4/0,3 | 0,30 | 3,4 | 4,0 | 50,0 | 4,0 | 4 |
|
|
| 3,6/0,2 | 0,20 | 3,6 | 4,0 | 50,0 | 4,0 | 4 |
|
|
| 4/1 | 1,00 | 4,0 | 6,0 | 50,0 | 6,0 | 4 |
|
|
| 4,4/0,8 | 0,80 | 4,4 | 6,0 | 50,0 | 6,0 | 4 |
|
|
| 4,8/0,6 | 0,60 | 4,8 | 6,0 | 50,0 | 6,0 | 4 |
|
|
| 5/10 | 10,00 | 5,0 | 25,0 | 100,0 | 25,0 | 4 |
|
|
| 6/2 | 2,00 | 6,0 | 10,0 | 66,0 | 10,0 | 4 |
|
|
| 6/3 | 3,00 | 6,0 | 12,0 | 73,0 | 12,0 | 4 |
|
|
| 7/1,5 | 1,50 | 7,0 | 10,0 | 66,0 | 10,0 | 4 |
|
|
| 7/2,5 | 2,50 | 7,0 | 12,0 | 73,0 | 12,0 | 4 |
|
|
| 7/4,5 | 4,50 | 7,0 | 16,0 | 82,0 | 16,0 | 4 |
|
|
| 8/4 | 4,00 | 8,0 | 16,0 | 82,0 | 16,0 | 4 |
|
|
| 8/6 | 6,00 | 8,0 | 20,0 | 80,0 | 20,0 | 4 |
|
|
| 9/3,5 | 3,50 | 9,0 | 16,0 | 82,0 | 16,0 | 4 |
|
|
| 9/8 | 8,00 | 9,0 | 25,0 | 100,0 | 25,0 | 4 |
|
|
| 10/5 | 5,00 | 10,0 | 20,0 | 80,0 | 20,0 | 4 |
|
