BCU1-M12-0023 | BCU1 FB Roundmaker Z4 BUI
Kühlung |
![]() ![]() ![]() ![]() |
---|---|
Toleranz | V1 |
Beschichtung | BetaUni Iron |
Downloads | Katalogseite & Schnittdaten |
Strategie |
|
---|---|
Anwendung |
|
Eigenschaften |
|
- Zur universellen Herstellung von Radien an Bauteilen
- Vor- und rückwärts schneidend
- Variante aus Formrohling für tiefe Kavitäten
Eignung | |
---|---|
Schruppen | Schlichten |
|
|

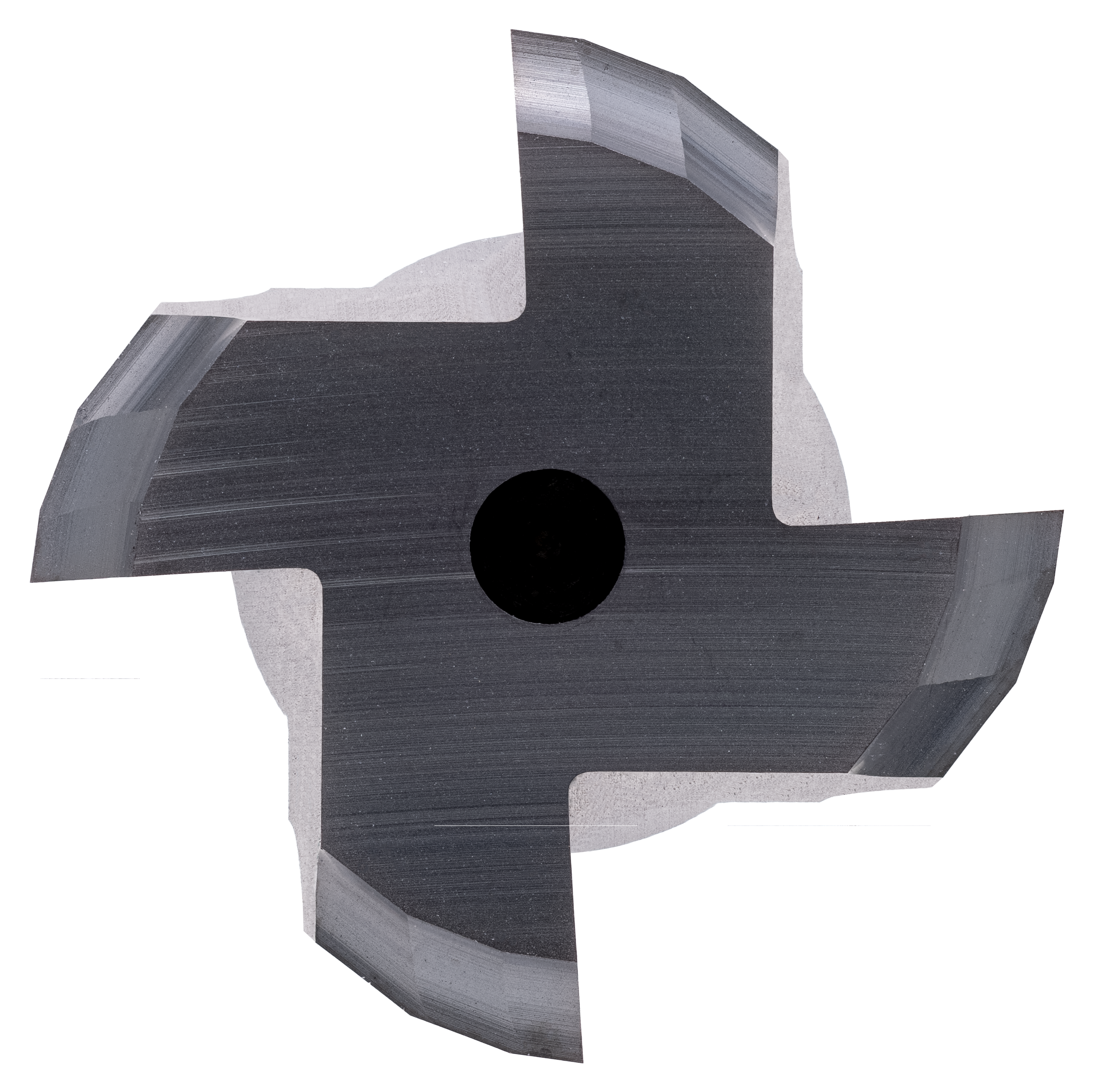

![BCU1-M12-0023 BCU1-M12-0023](https://fn.hofmann-vratny.de/resources/images/fraeser_face_none.png)
![BCU1-M12-0023 BCU1-M12-0023](https://fn.hofmann-vratny.de/resources/images/fraeser_none.png)
![BCU1-M12-0023 BCU1-M12-0023](https://fn.hofmann-vratny.de/resources/images/fraeser_tech_none.png)
![BCU1-M12-0023 BCU1-M12-0023](https://fn.hofmann-vratny.de/resources/images/fraeser_tech_none.png)

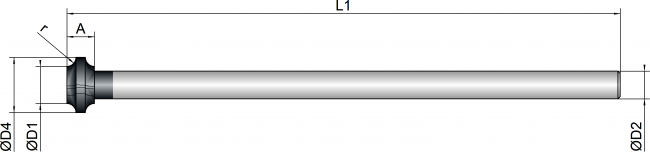

BCU1-M12-0023
|
r
|
D1
|
D4
|
A
|
L1
|
D2
|
z
|
||
---|---|---|---|---|---|---|---|---|---|
5/0,5 | 0,50 | 5,0 | 6,0 | 2,0 | 75,0 | 4,0 | 4 |
![]() |
|
5,2/0,4 | 0,40 | 5,2 | 6,0 | 2,0 | 75,0 | 4,0 | 4 |
![]() |
|
5,4/0,3 | 0,30 | 5,4 | 6,0 | 2,0 | 75,0 | 4,0 | 4 |
![]() |
|
5,6/0,2 | 0,20 | 5,6 | 6,0 | 2,0 | 75,0 | 4,0 | 4 |
![]() |
|
7/0,5 | 0,50 | 7,0 | 8,0 | 2,0 | 100,0 | 6,0 | 4 |
![]() |
|
7/1,5 | 1,50 | 7,0 | 10,0 | 5,0 | 100,0 | 6,0 | 4 |
![]() |
|
7/2,5 | 2,50 | 7,0 | 12,0 | 8,0 | 100,0 | 6,0 | 4 |
![]() |
|
7,2/0,4 | 0,40 | 7,2 | 8,0 | 2,0 | 100,0 | 6,0 | 4 |
![]() |
|
7,4/0,3 | 0,30 | 7,4 | 8,0 | 2,0 | 100,0 | 6,0 | 4 |
![]() |
|
7,6/0,2 | 0,20 | 7,6 | 8,0 | 2,0 | 100,0 | 6,0 | 4 |
![]() |
|
7,6/1,2 | 1,20 | 7,6 | 10,0 | 5,0 | 100,0 | 6,0 | 4 |
![]() |
|
8/1 | 1,00 | 8,0 | 10,0 | 4,0 | 100,0 | 6,0 | 4 |
![]() |
|
8/2 | 2,00 | 8,0 | 12,0 | 7,0 | 100,0 | 6,0 | 4 |
![]() |
|
8,4/0,8 | 0,80 | 8,4 | 10,0 | 4,0 | 100,0 | 6,0 | 4 |
![]() |
|
8,4/1,8 | 1,80 | 8,4 | 12,0 | 6,0 | 100,0 | 6,0 | 4 |
![]() |
