BCU1-M27-0143 | BCU1 Bevelmaker Z2 90° BUI
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | BetaUni Iron |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Universalwerkzeug zum Anbohren, Senken, Entgraten und Zentrieren in verschiedenen Werkstoffen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

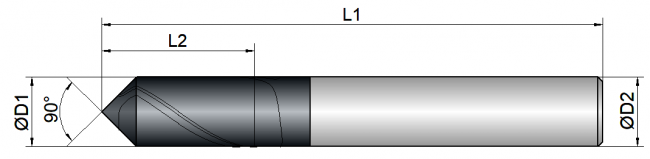

BCU1-M27-0143
|
D1
|
L2
|
L1
|
D2
|
z
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1,0 | 2,5 | 50,0 | 4,0 | 2 | 35 | 12 |
|
|
| 1,2 | 1,2 | 3,0 | 50,0 | 4,0 | 2 | 35 | 12 |
|
|
| 1,5 | 1,5 | 3,5 | 50,0 | 4,0 | 2 | 35 | 12 |
|
|
| 2 | 2,0 | 5,0 | 50,0 | 4,0 | 2 | 35 | 12 |
|
|
| 2,5 | 2,5 | 6,0 | 50,0 | 4,0 | 2 | 35 | 12 |
|
|
| 3 | 3,0 | 8,0 | 57,0 | 6,0 | 2 | 35 | 12 |
|
|
| 4 | 4,0 | 11,0 | 57,0 | 6,0 | 2 | 35 | 12 |
|
|
| 5 | 5,0 | 13,0 | 57,0 | 6,0 | 2 | 35 | 12 |
|
|
| 6 | 6,0 | 13,0 | 57,0 | 6,0 | 2 | 35 | - |
|
|
| 8 | 8,0 | 19,0 | 63,0 | 8,0 | 2 | 35 | - |
|
|
| 10 | 10,0 | 22,0 | 72,0 | 10,0 | 2 | 35 | - |
|
|
| 12 | 12,0 | 26,0 | 83,0 | 12,0 | 2 | 35 | - |
|
