EXM1-M01-0113 | EXM1 Performmaker Z4 1,5xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y, Z helical
Features No Weldon Unequal tooth pitch Dynamic helical pitch Center Cutting

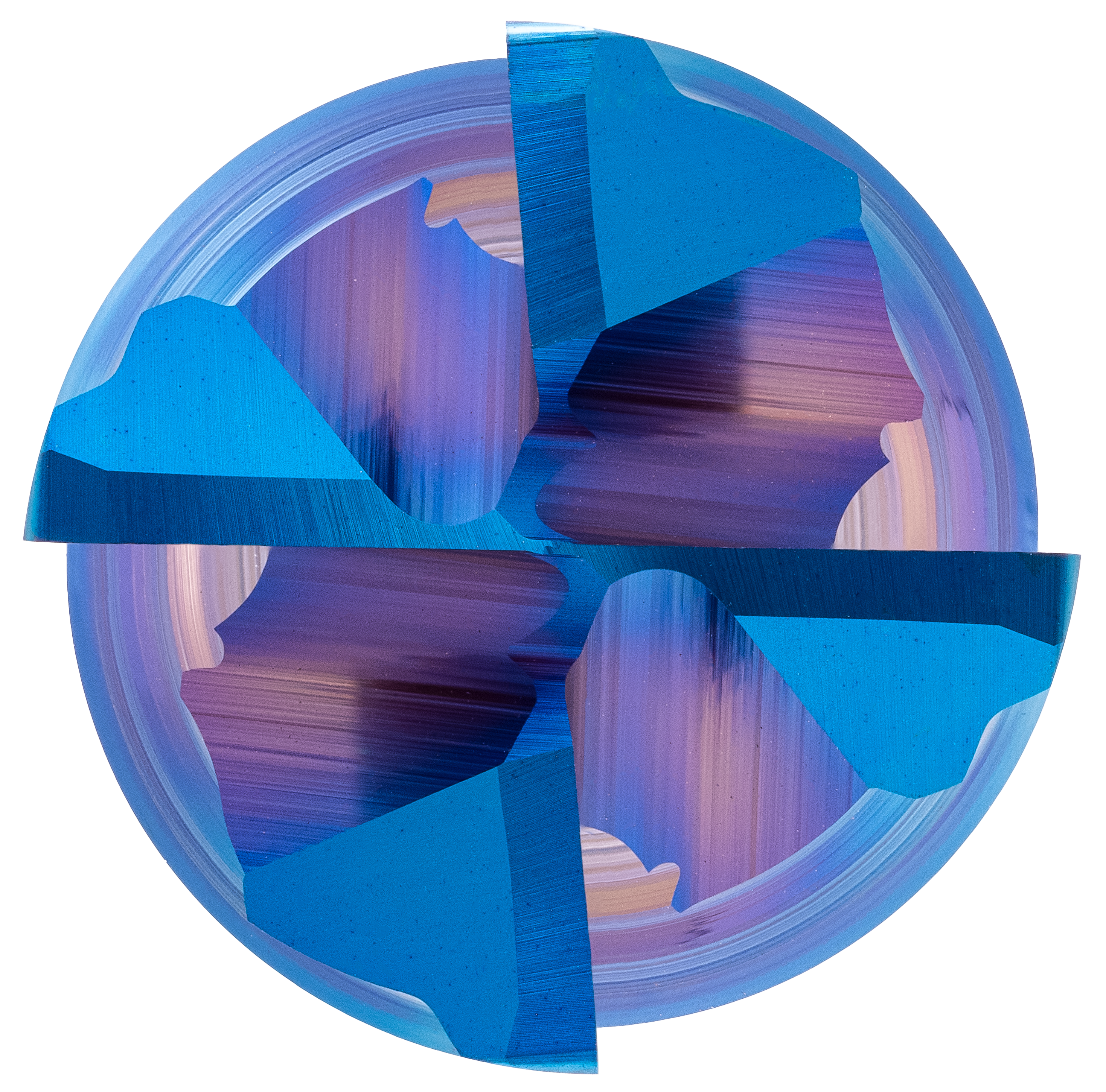

  • Extra stable tool core with a slightly conical course
  • Special unequal tooth pitch combined with variable helical pitch for smooth running
  • Innovative grinding of the flute back for constant, ideal cooling of the cutting edges and prevention of thermal shocks
  • Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1xD
  • For process reliable ramping, helical immersion and diving (drilling) up to 1xD
Suitability for
Roughing Finishing


EXM1-M01-0113
EXM1-M01-0113
EXM1-M01-0113
EXM1-M01-0113
EXM1-M01-0113

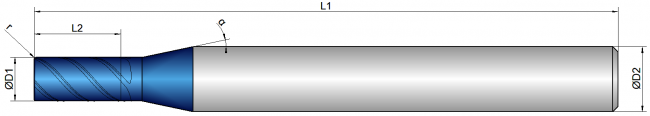

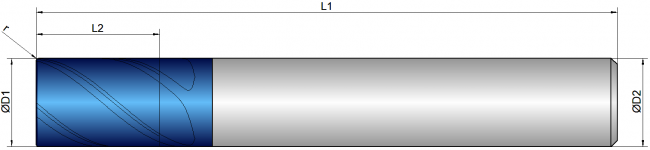

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
3 3.0 6.0 54.0 6.0 4 0.10 40 12 orange

4 4.0 8.0 54.0 6.0 4 0.10 40 12 green

5 5.0 9.0 54.0 6.0 4 0.20 40 12 green

6 6.0 10.0 54.0 6.0 4 0.20 40 - green

8 8.0 12.0 58.0 8.0 4 0.20 40 - green

10 10.0 14.0 66.0 10.0 4 0.20 40 - green

12 12.0 16.0 73.0 12.0 4 0.20 40 - green

16 16.0 22.0 82.0 16.0 4 0.30 40 - orange

20 20.0 26.0 92.0 20.0 4 0.30 40 - green
