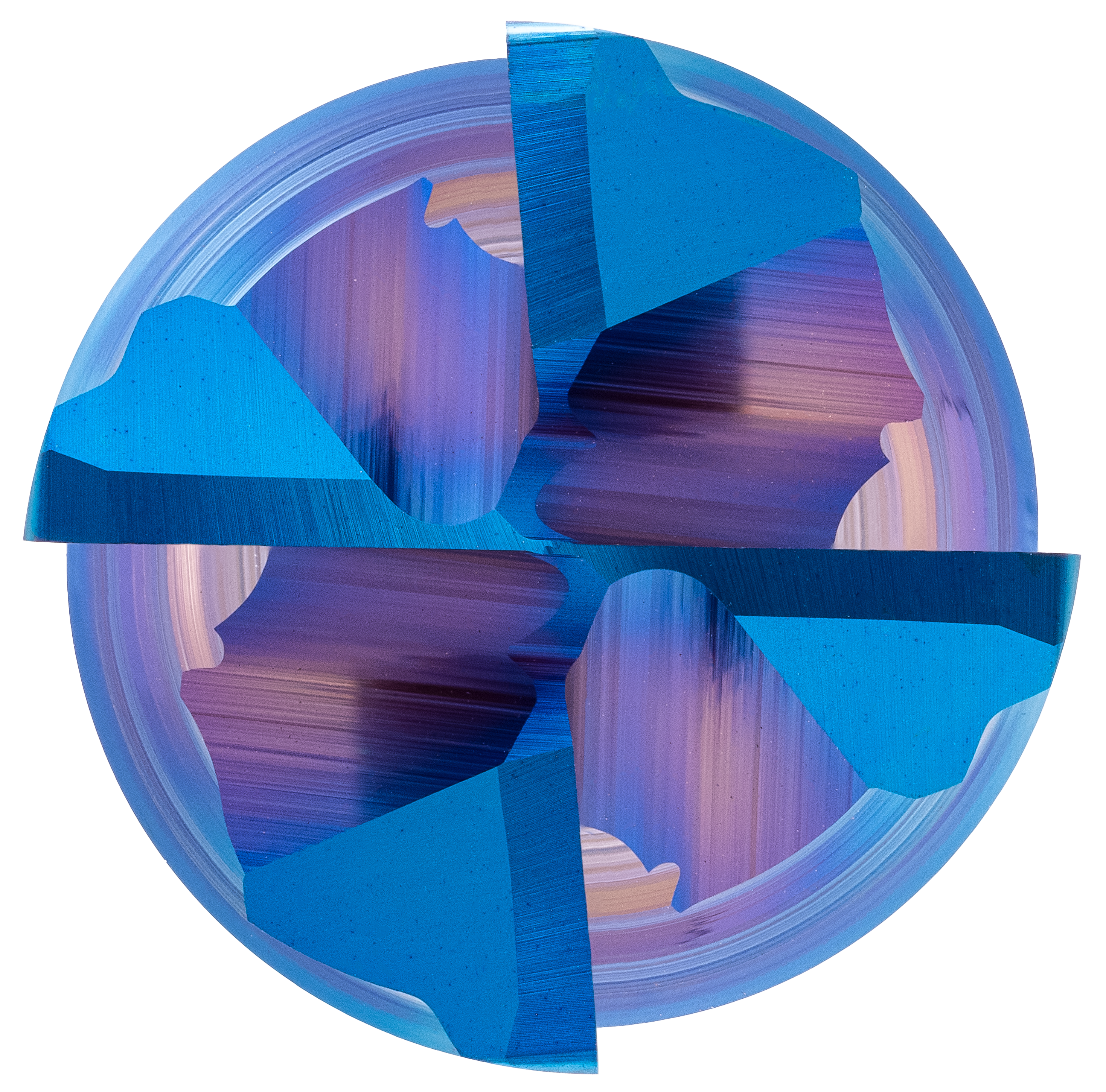

EXM1-M01-0124 | EXM1 Performmaker Z4 2xD ANNX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaNox Navy X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Extra stable tool core with a slightly conical course
- Special unequal tooth pitch combined with variable helical pitch for smooth running
- Innovative grinding of the flute back for constant, ideal cooling of the cutting edges and prevention of thermal shocks
- Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1.5xD
- For process reliable ramping, helical immersion and diving (drilling) up to 1xD
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

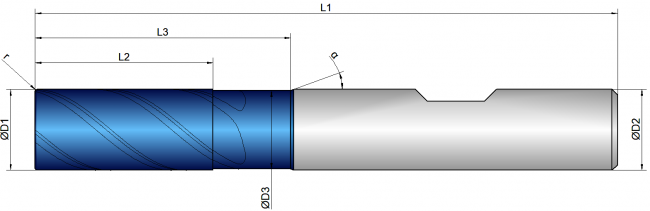

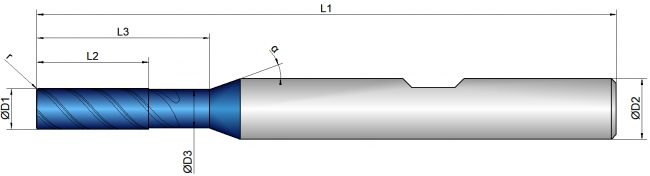

EXM1-M01-0124
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2.0 | 1.8 | 5.0 | 10.0 | 57.0 | 6.0 | 4 | 0.10 | 40 | 20 |
|
|
| 3 | 3.0 | 2.8 | 8.0 | 13.0 | 57.0 | 6.0 | 4 | 0.10 | 40 | 20 |
|
|
| 4 | 4.0 | 3.8 | 11.0 | 17.0 | 57.0 | 6.0 | 4 | 0.10 | 40 | 20 |
|
|
| 5 | 5.0 | 4.8 | 13.0 | 20.0 | 57.0 | 6.0 | 4 | 0.20 | 40 | 20 |
|
|
| 6 | 6.0 | 5.8 | 13.0 | 20.0 | 57.0 | 6.0 | 4 | 0.20 | 40 | 20 |
|
|
| 8 | 8.0 | 7.7 | 19.0 | 25.0 | 63.0 | 8.0 | 4 | 0.20 | 40 | 20 |
|
|
| 10 | 10.0 | 9.7 | 22.0 | 32.0 | 72.0 | 10.0 | 4 | 0.20 | 40 | 20 |
|
|
| 12 | 12.0 | 11.6 | 26.0 | 38.0 | 83.0 | 12.0 | 4 | 0.20 | 40 | 20 |
|
|
| 16 | 16.0 | 15.5 | 32.0 | 44.0 | 92.0 | 16.0 | 4 | 0.30 | 40 | 20 |
|
|
| 20 | 20.0 | 19.5 | 41.0 | 54.0 | 104.0 | 20.0 | 4 | 0.30 | 40 | 20 |
|
