EXM1-M01-0213 | EXM1 Performmaker Z4 1,5xD ANNX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaNox Navy X |
| Downloads |
Catalog page & Cutting data
interactive Cutting data calculator |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Optimized microgeometry with higher vibration resistance and increased cutting edge stability
- Special unequal tooth pitch combined with variable helical pitch for smooth running
- Update version and successor product for EXM1-M01-0113
- Universally applicable in all stainless steels
- Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1xD
- For process reliable ramping, helical immersion and diving (drilling) up to 1xD
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

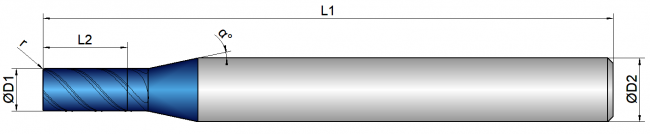

EXM1-M01-0213
|
D1
|
L2
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 | 0.5 | 0.9 | 50.0 | 4.0 | 4 | 0.02 | 40 | 12 |
|
|
| 0,8 | 0.8 | 1.4 | 50.0 | 4.0 | 4 | 0.03 | 40 | 12 |
|
|
| 1 | 1.0 | 1.7 | 50.0 | 4.0 | 4 | 0.05 | 40 | 12 |
|
|
| 1,5 | 1.5 | 2.4 | 50.0 | 4.0 | 4 | 0.05 | 40 | 12 |
|
|
| 2 | 2.0 | 3.0 | 54.0 | 6.0 | 4 | 0.10 | 40 | 12 |
|
|
| 2,5 | 2.5 | 4.5 | 54.0 | 6.0 | 4 | 0.10 | 40 | 12 |
|
|
| 3 | 3.0 | 5.0 | 54.0 | 6.0 | 4 | 0.10 | 40 | 12 |
|
|
| 4 | 4.0 | 8.0 | 54.0 | 6.0 | 4 | 0.10 | 40 | 12 |
|
|
| 5 | 5.0 | 9.0 | 54.0 | 6.0 | 4 | 0.15 | 40 | 12 |
|
|
| 6 | 6.0 | 10.0 | 54.0 | 6.0 | 4 | 0.15 | 40 | - |
|
|
| 8 | 8.0 | 12.0 | 58.0 | 8.0 | 4 | 0.20 | 40 | - |
|
|
| 10 | 10.0 | 16.0 | 66.0 | 10.0 | 4 | 0.20 | 40 | - |
|
|
| 12 | 12.0 | 19.0 | 73.0 | 12.0 | 4 | 0.25 | 40 | - |
|
|
| 16 | 16.0 | 25.0 | 82.0 | 16.0 | 4 | 0.30 | 40 | - |
|
|
| 20 | 20.0 | 32.0 | 92.0 | 20.0 | 4 | 0.30 | 40 | - |
|
