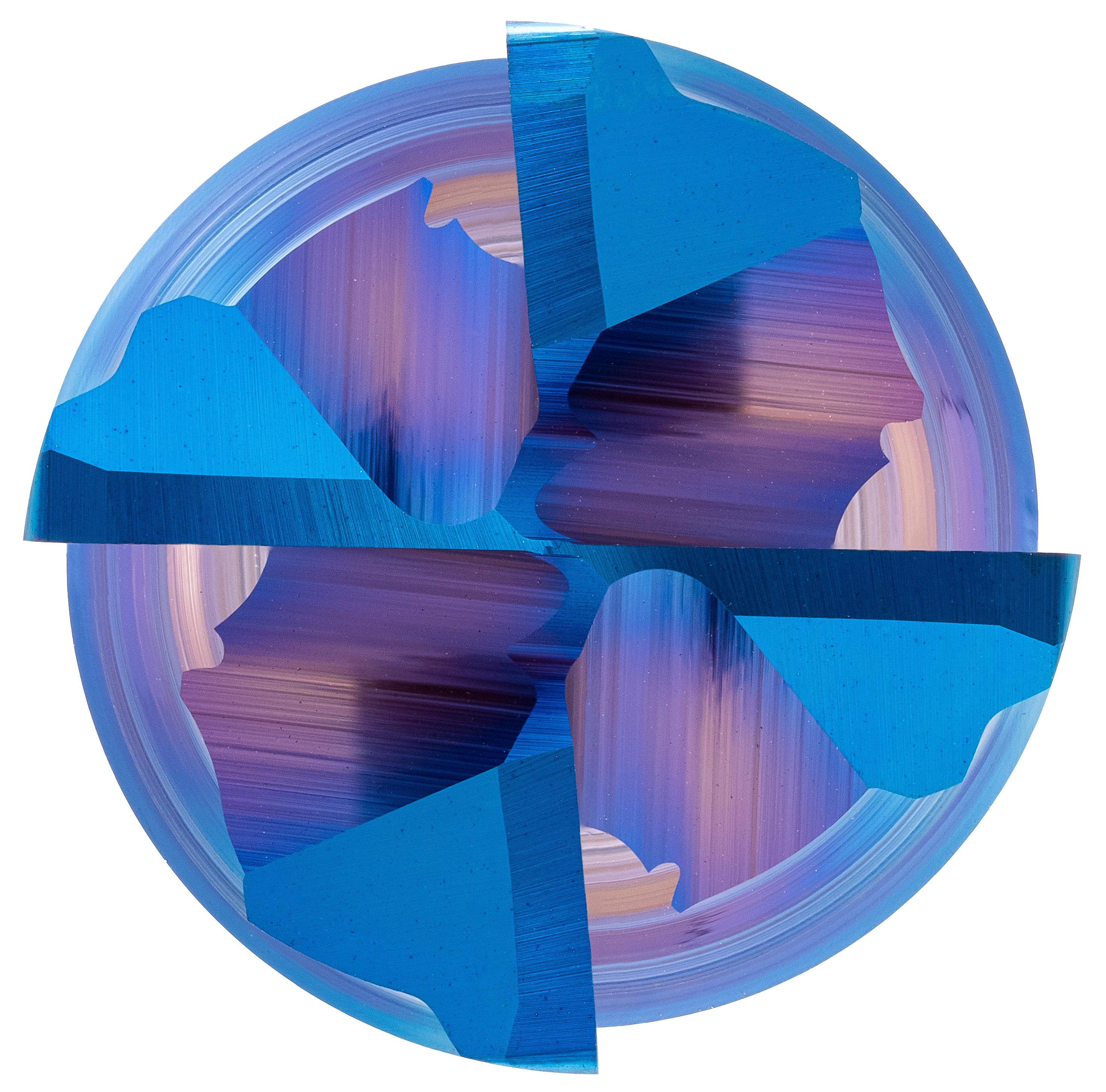

EXM1-M01-0214 | EXM1 Performmaker Z4 1,5xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y, Z helical
Features Weldon HB Unequal tooth pitch Dynamic helical pitch Center Cutting 1,5xD Corner radius
  • Optimized microgeometry with higher vibration resistance and increased cutting edge stability
  • Special unequal tooth pitch combined with variable helical pitch for smooth running
  • Update version and successor product for EXM1-M01-0114
  • Universally applicable in all stainless steels
  • Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1xD
  • For process reliable ramping, helical immersion and diving (drilling) up to 1xD
Suitability for
Roughing Finishing


EXM1-M01-0214
EXM1-M01-0214
EXM1-M01-0214
EXM1-M01-0214
EXM1-M01-0214

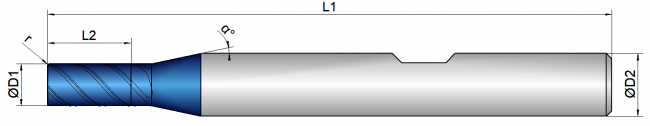

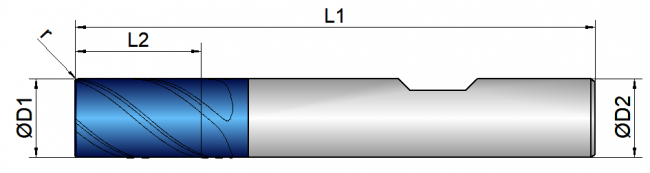

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
3 3.0 5.0 54.0 6.0 4 0.10 40 12 green

4 4.0 8.0 54.0 6.0 4 0.10 40 12 green

5 5.0 9.0 54.0 6.0 4 0.15 40 12 green

6 6.0 10.0 54.0 6.0 4 0.15 40 - orange

8 8.0 12.0 58.0 8.0 4 0.20 40 - green

10 10.0 16.0 66.0 10.0 4 0.20 40 - green

12 12.0 19.0 73.0 12.0 4 0.25 40 - green

16 16.0 25.0 82.0 16.0 4 0.30 40 - green

20 20.0 32.0 92.0 20.0 4 0.30 40 - green
