EXM1-M01-0324 | EXM1 Performmaker Z4 3xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming X, Y, Z helical
Features Weldon HB Unequal tooth pitch 3xD Dynamic helical pitch Center Cutting Corner radius
  • Optimized microgeometry with higher vibration resistance and increased cutting edge stability
  • Special unequal tooth pitch combined with variable helical pitch for smooth running
  • Universally applicable in all stainless steels
  • Designed for maximum removal rate when milling with high radial depth of cut and for trochoidal milling
  • For process reliable ramping, helical immersion and diving (drilling) up to 1xD
Suitability for
Roughing Finishing


EXM1-M01-0324
EXM1-M01-0324
EXM1-M01-0324
EXM1-M01-0324
EXM1-M01-0324

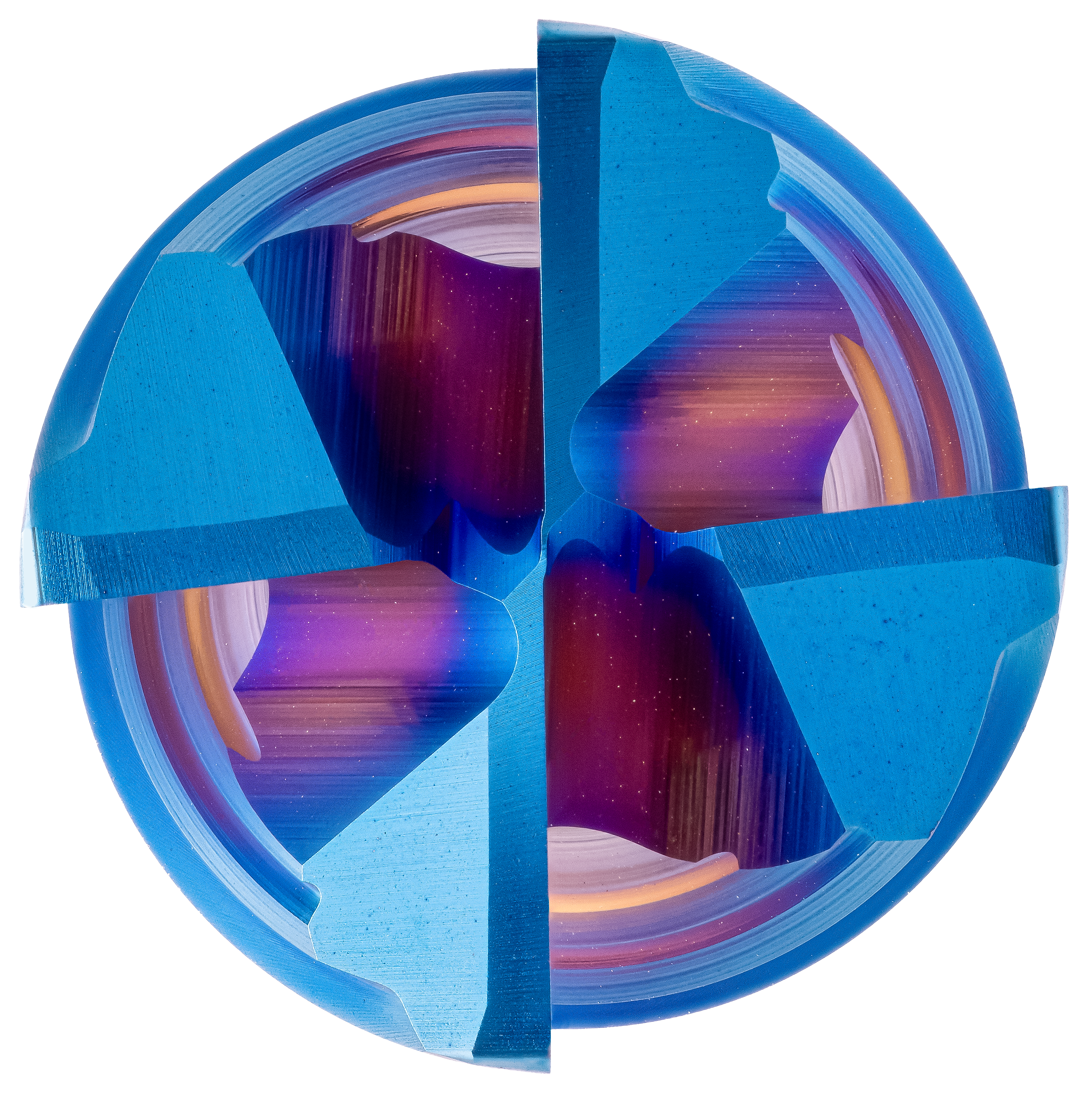

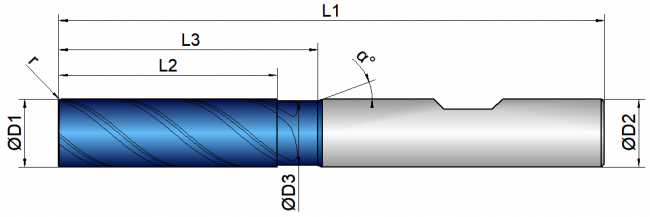

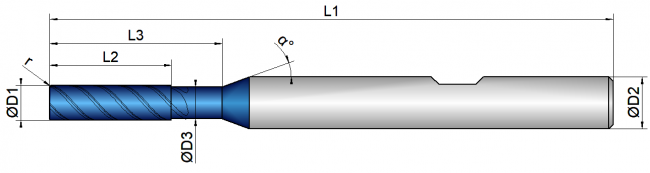

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
3 3.0 2.8 11.0 15.0 65.0 6.0 4 0.10 40 20 green

4 4.0 3.7 14.0 20.0 65.0 6.0 4 0.10 40 20 green

5 5.0 4.7 16.0 26.0 65.0 6.0 4 0.15 40 20 orange

6 6.0 5.5 19.0 26.0 65.0 6.0 4 0.15 40 20 red

8 8.0 7.5 26.0 32.0 70.0 8.0 4 0.20 40 20 green

10 10.0 9.5 32.0 38.0 80.0 10.0 4 0.20 40 20 orange

12 12.0 11.0 38.0 46.0 93.0 12.0 4 0.25 40 20 orange

16 16.0 15.0 50.0 60.0 110.0 16.0 4 0.30 40 20 orange

20 20.0 19.0 62.0 74.0 125.0 20.0 4 0.30 40 20 orange
