EXM1-M01-0423 | EXM1 Performmaker Z4 2xD overlong ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy High Performance Cutting
Applications Trimming X, Y helical

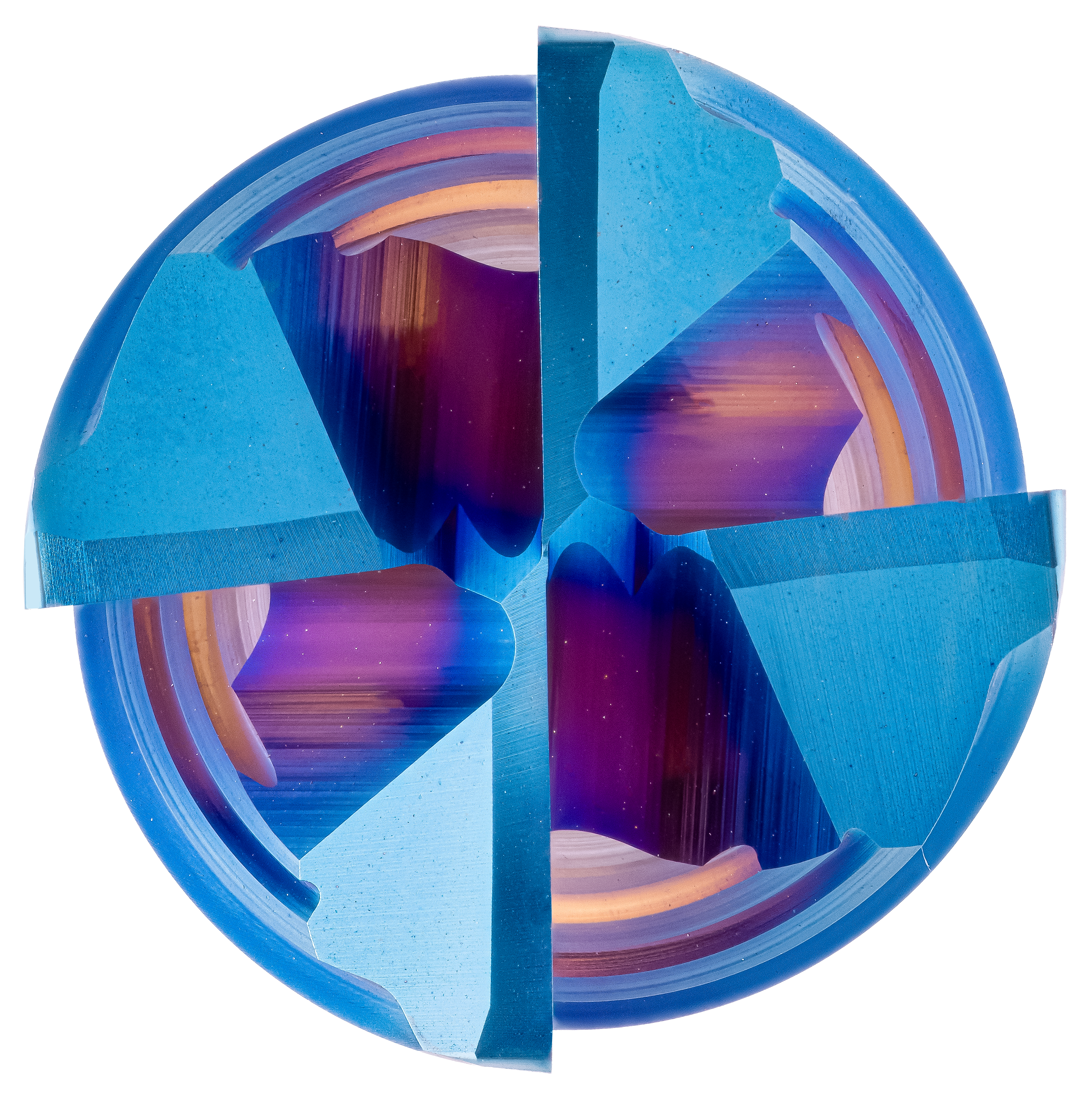

Features No Weldon Unequal tooth pitch 2xD Dynamic helical pitch Center Cutting Corner radius
  • Optimized microgeometry with higher vibration resistance and increased cutting edge stability
  • Special unequal tooth pitch combined with variable helical pitch for smooth running
  • Universally applicable in all stainless steels
  • Designed for high stability with particularly long projection lengths
  • Overlong version for deepest cavities
Suitability for
Roughing Finishing


EXM1-M01-0423
EXM1-M01-0423
EXM1-M01-0423
EXM1-M01-0423
EXM1-M01-0423

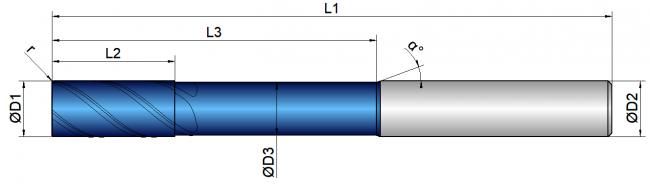

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
6 6.0 5.5 13.0 42.0 83.0 6.0 4 0.15 40 20 green
