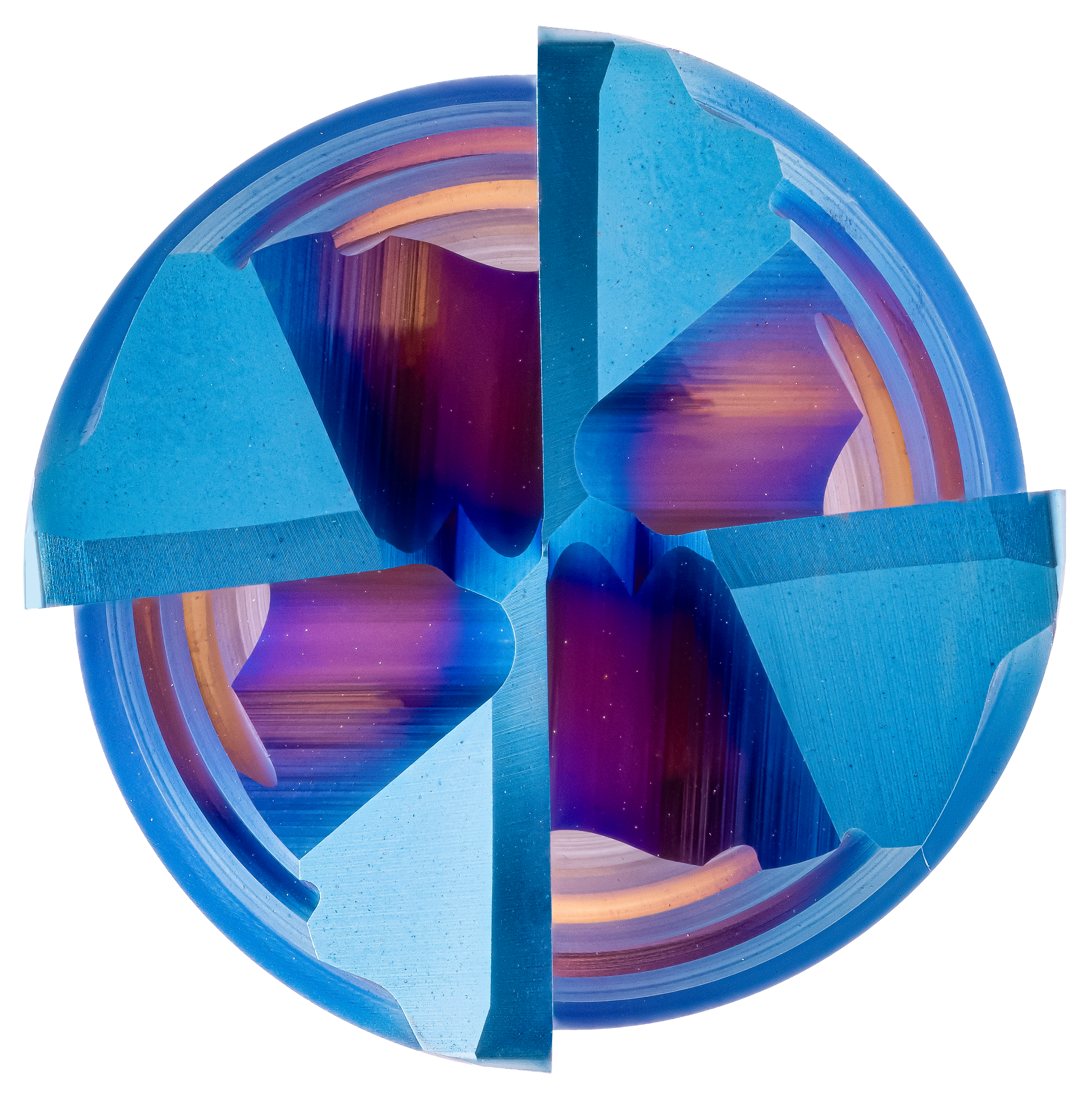

EXM1-M01-0424 | EXM1 Performmaker Z4 2xD overlong ANNX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaNox Navy X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Optimized microgeometry with higher vibration resistance and increased cutting edge stability
- Special unequal tooth pitch combined with variable helical pitch for smooth running
- Universally applicable in all stainless steels
- Designed for high stability with particularly long projection lengths
- Overlong version for deepest cavities
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

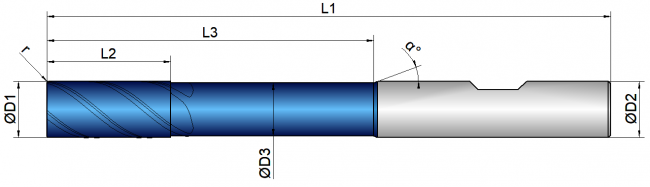

EXM1-M01-0424
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6.0 | 5.5 | 13.0 | 42.0 | 83.0 | 6.0 | 4 | 0.15 | 40 | 20 |
|
|
| 8 | 8.0 | 7.5 | 19.0 | 52.0 | 100.0 | 8.0 | 4 | 0.20 | 40 | 20 |
|
|
| 10 | 10.0 | 9.5 | 22.0 | 58.0 | 100.0 | 10.0 | 4 | 0.20 | 40 | 20 |
|
|
| 12 | 12.0 | 11.0 | 26.0 | 72.0 | 119.0 | 12.0 | 4 | 0.25 | 40 | 20 |
|
|
| 16 | 16.0 | 15.0 | 34.0 | 94.0 | 150.0 | 16.0 | 4 | 0.30 | 40 | 20 |
|
|
| 20 | 20.0 | 19.0 | 42.0 | 98.0 | 150.0 | 20.0 | 4 | 0.30 | 40 | 20 |
|
