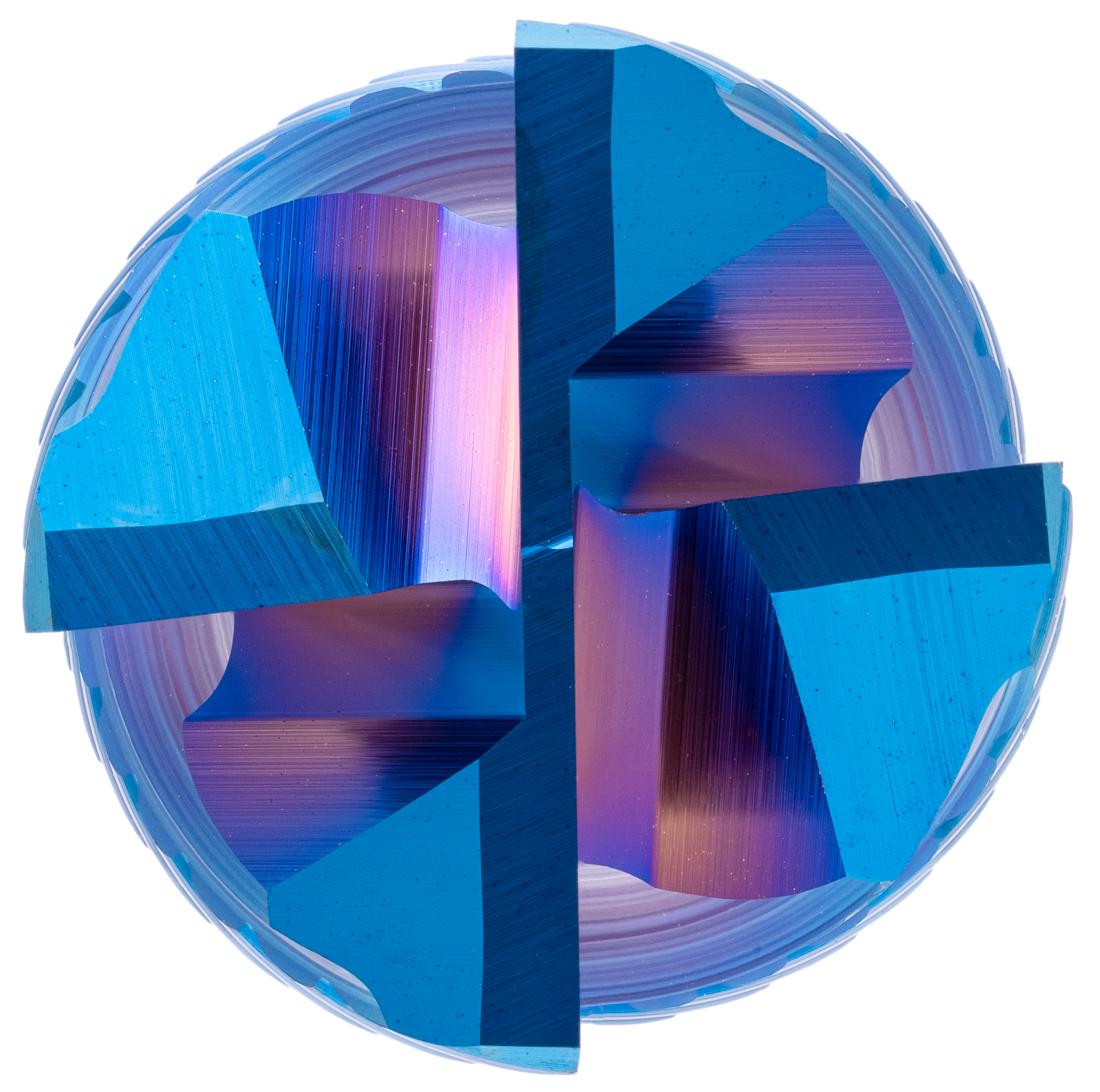

EXM1-M02-0153 | EXM1 Slotmaker Z4 3xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch Serrated edge 3xD Dynamic helical pitch Center Cutting Corner radius
  • Extra stable tool core with a slightly conical shape
  • Optimized roughing teeth for soft cut and small chips
  • Special unequal tooth pitch paired with variable helical pitch
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical immersion
  • For high radial cutting depths
Suitability for
Roughing Finishing


EXM1-M02-0153
EXM1-M02-0153
EXM1-M02-0153
EXM1-M02-0153
EXM1-M02-0153

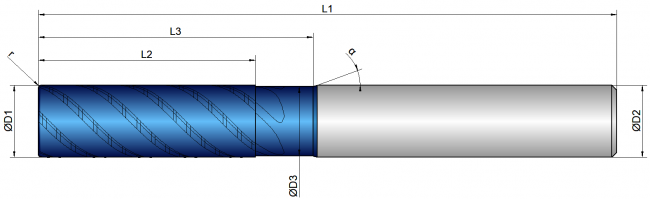

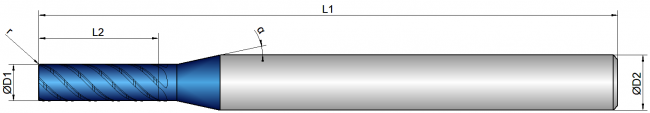

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
4 4.0 - 13.0 - 65.0 6.0 4 0.10 40 12 orange
