Expert

EXM1-M02-0154 | EXM1 Slotmaker Z4 3xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical

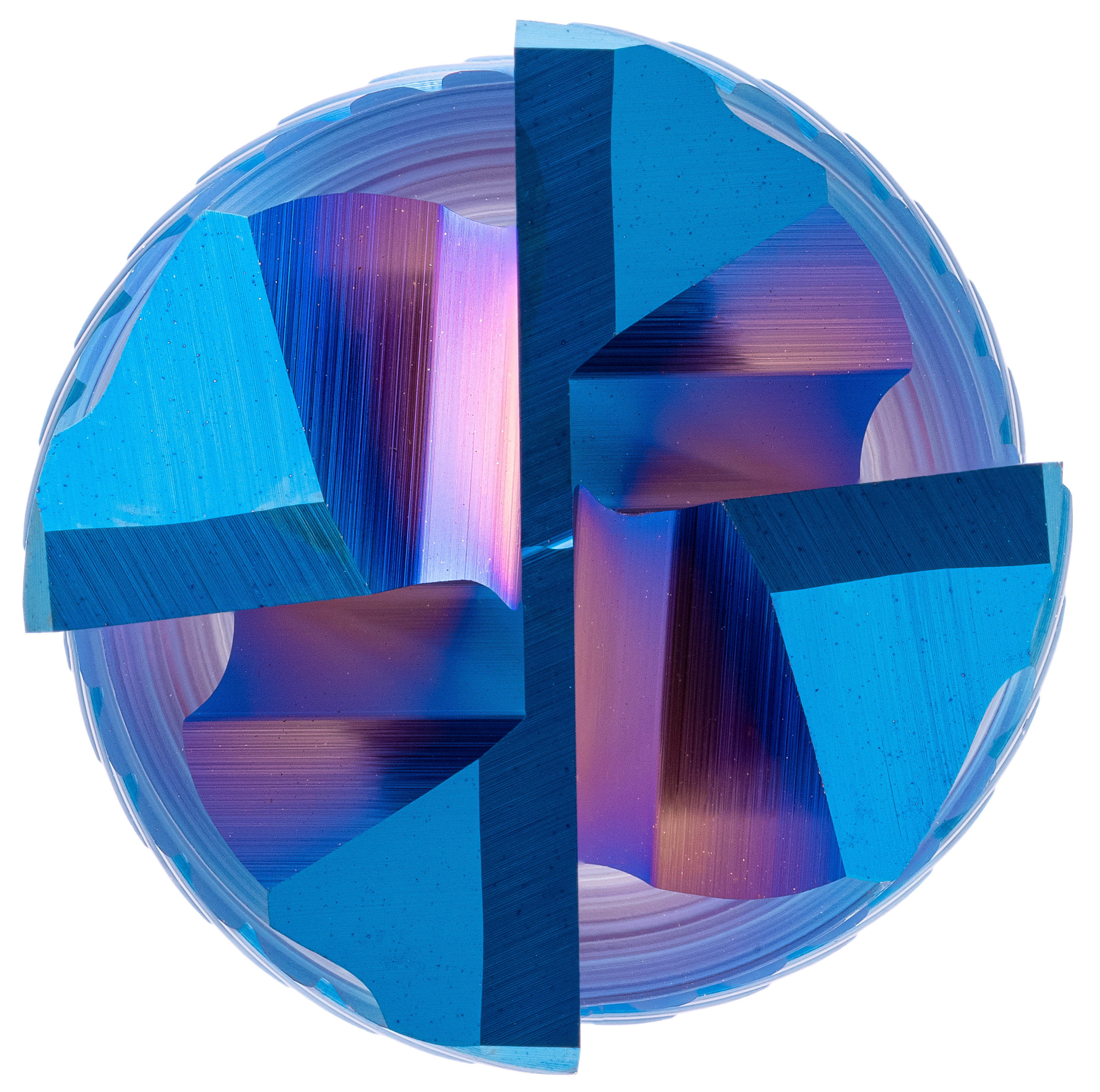

Features Weldon HB Unequal tooth pitch Serrated edge 3xD Dynamic helical pitch Center Cutting
  • Extra stable tool core with a slightly conical shape
  • Optimized roughing teeth for soft cut and small chips
  • Special unequal tooth pitch paired with variable helical pitch
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical immersion
  • For high radial cutting depths
Suitability for
Roughing Finishing


EXM1-M02-0154
EXM1-M02-0154
EXM1-M02-0154
EXM1-M02-0154
EXM1-M02-0154

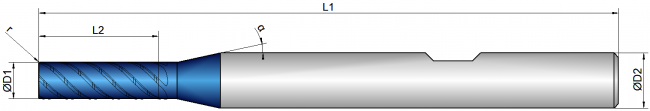

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
4 4.0 - 13.0 - 67.0 6.0 4 0.10 40 12 red
5 5.0 - 16.0 - 67.0 6.0 4 0.20 40 12 red
6 6.0 5.6 18.0 24.0 67.0 6.0 4 0.20 40 20 red
8 8.0 7.6 24.0 30.0 70.0 8.0 4 0.20 40 20 green
10 10.0 9.6 30.0 38.0 80.0 10.0 4 0.32 40 20 green
12 12.0 11.4 36.0 46.0 93.0 12.0 4 0.32 40 20 green
16 16.0 15.4 48.0 58.0 110.0 16.0 4 0.32 40 20 green
20 20.0 19.4 60.0 74.0 125.0 20.0 4 0.50 40 20 green
