EXM1-M02-0324 | EXM1 Slotmaker Z4 4xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch Serrated edge 4xD Dynamic helical pitch Center Cutting Corner radius
  • Extra stable tool core with a slightly conical shape
  • Optimized roughing teeth for soft cut and small chips
  • Special unequal tooth pitch paired with variable helical pitch
  • Excellent for trochoidal milling
  • For process reliable, helical immersion
  • For high radial cutting depths
Suitability for
Roughing Finishing


EXM1-M02-0324
EXM1-M02-0324
EXM1-M02-0324
EXM1-M02-0324
EXM1-M02-0324

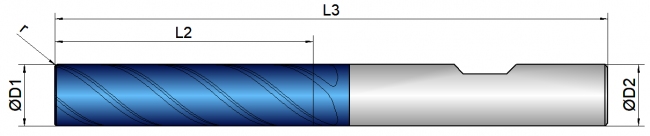

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6 6.0 25.0 65.0 6.0 4 0.20 40 red

8 8.0 34.0 75.0 8.0 4 0.25 40 red

10 10.0 42.0 90.0 10.0 4 0.25 40 red

12 12.0 50.0 100.0 12.0 4 0.30 40 red

16 16.0 66.0 130.0 16.0 4 0.40 40 red

20 20.0 82.0 150.0 20.0 4 0.50 40 red
