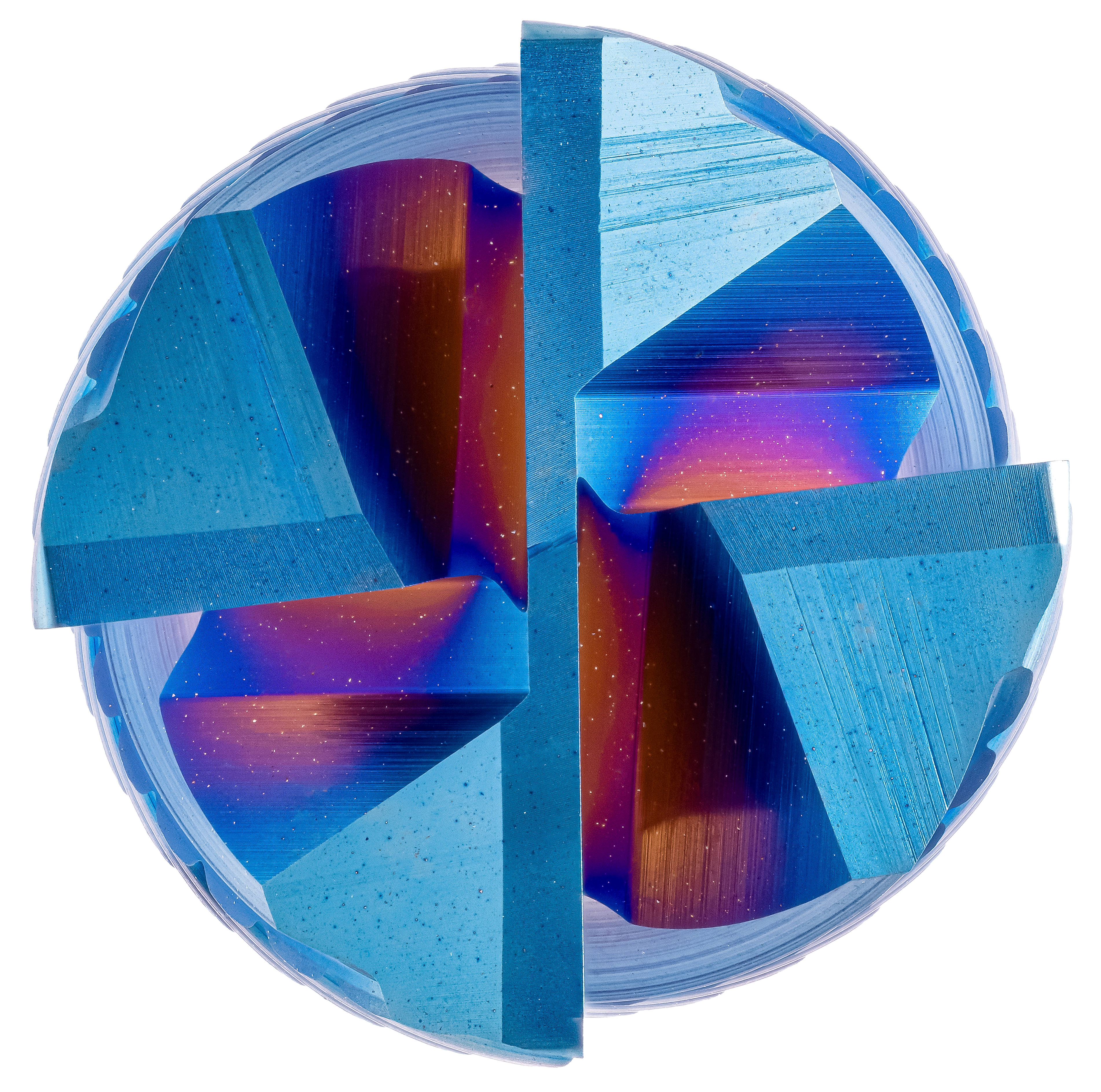

EXM1-M02-0623 | EXM1 Slotmaker Z4 2xD overlong ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy High Performance Cutting
Applications Trimming X, Y helical
Features No Weldon Unequal tooth pitch Serrated edge 2xD Dynamic helical pitch Center Cutting Corner radius
  • Extra stable tool core with a slightly conical shape
  • Optimized roughing teeth for soft cut and small chips
  • Special unequal tooth pitch paired with variable helical pitch
  • For process reliable, helical immersion
  • For high radial cutting depths
  • Overlong version for deepest cavities
Suitability for
Roughing Finishing


EXM1-M02-0623
EXM1-M02-0623
EXM1-M02-0623
EXM1-M02-0623
EXM1-M02-0623

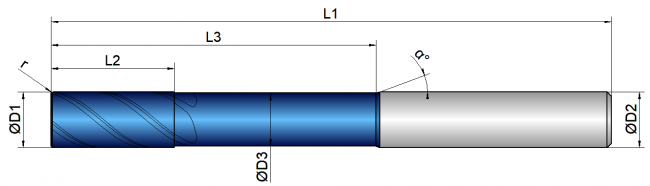

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
6 6.0 5.5 13.0 42.0 83.0 6.0 4 0.20 40 20 red

8 8.0 7.5 19.0 52.0 100.0 8.0 4 0.25 40 20 red

10 10.0 9.5 22.0 58.0 100.0 10.0 4 0.25 40 20 red

12 12.0 11.0 26.0 72.0 120.0 12.0 4 0.30 40 20 red

16 16.0 15.0 34.0 94.0 150.0 16.0 4 0.40 40 20 red

20 20.0 19.0 42.0 98.0 150.0 20.0 4 0.50 40 20 red
