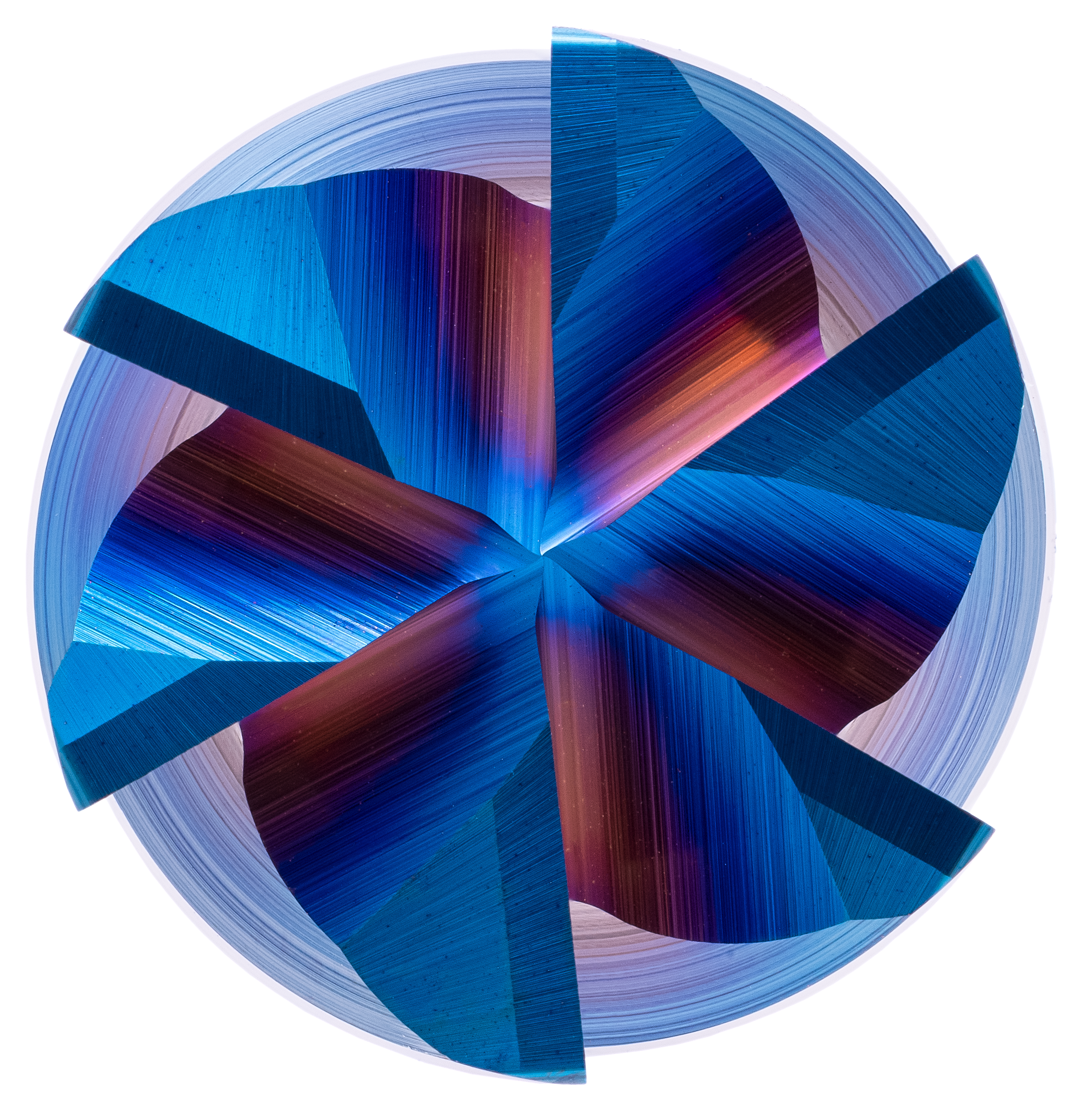

EXM1-M03-0104 | EXM1 Chipmaker Z6 2xD ANNX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaNox Navy X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- 6 cutting edges for best performance and an excellent material removal rate
- Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
- Ideal chip evacuation, even with high feed rates and big radial depth of cutting
- For roughing and finishing under ETC conditions
- For process reliable, helical immersion
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

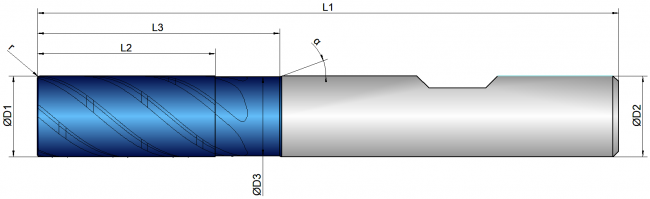

EXM1-M03-0104
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6.0 | 5.8 | 15.0 | 19.0 | 57.0 | 6.0 | 6 | 0.15 | 40 | 20 |
|
|
| 6/0,5 | 6.0 | 5.8 | 15.0 | 19.0 | 57.0 | 6.0 | 6 | 0.50 | 40 | 20 |
|
|
| 6/1 | 6.0 | 5.8 | 15.0 | 19.0 | 57.0 | 6.0 | 6 | 1.00 | 40 | 20 |
|
|
| 6/2 | 6.0 | 5.8 | 15.0 | 19.0 | 57.0 | 6.0 | 6 | 2.00 | 40 | 20 |
|
|
| 8 | 8.0 | 7.8 | 21.0 | 25.0 | 63.0 | 8.0 | 6 | 0.20 | 40 | 20 |
|
|
| 8/0,5 | 8.0 | 7.8 | 21.0 | 25.0 | 63.0 | 8.0 | 6 | 0.50 | 40 | 20 |
|
|
| 8/1 | 8.0 | 7.8 | 21.0 | 25.0 | 63.0 | 8.0 | 6 | 1.00 | 40 | 20 |
|
|
| 8/2 | 8.0 | 7.8 | 21.0 | 25.0 | 63.0 | 8.0 | 6 | 2.00 | 40 | 20 |
|
|
| 10 | 10.0 | 9.8 | 24.0 | 30.0 | 72.0 | 10.0 | 6 | 0.20 | 40 | 20 |
|
|
| 10/0,5 | 10.0 | 9.8 | 24.0 | 30.0 | 72.0 | 10.0 | 6 | 0.50 | 40 | 20 |
|
|
| 10/1 | 10.0 | 9.8 | 24.0 | 30.0 | 72.0 | 10.0 | 6 | 1.00 | 40 | 20 |
|
|
| 10/2 | 10.0 | 9.8 | 24.0 | 30.0 | 72.0 | 10.0 | 6 | 2.00 | 40 | 20 |
|
|
| 12 | 12.0 | 11.8 | 29.0 | 36.0 | 83.0 | 12.0 | 6 | 0.20 | 40 | 20 |
|
|
| 12/0,5 | 12.0 | 11.8 | 29.0 | 36.0 | 83.0 | 12.0 | 6 | 0.50 | 40 | 20 |
|
|
| 12/1 | 12.0 | 11.8 | 29.0 | 36.0 | 83.0 | 12.0 | 6 | 1.00 | 40 | 20 |
|
|
| 12/2 | 12.0 | 11.8 | 29.0 | 36.0 | 83.0 | 12.0 | 6 | 2.00 | 40 | 20 |
|
|
| 16 | 16.0 | 15.8 | 35.0 | 42.0 | 92.0 | 16.0 | 6 | 0.30 | 40 | 20 |
|
|
| 16/0,5 | 16.0 | 15.8 | 35.0 | 42.0 | 92.0 | 16.0 | 6 | 0.50 | 40 | 20 |
|
|
| 16/1 | 16.0 | 15.8 | 35.0 | 42.0 | 92.0 | 16.0 | 6 | 1.00 | 40 | 20 |
|
|
| 16/2 | 16.0 | 15.8 | 35.0 | 42.0 | 92.0 | 16.0 | 6 | 2.00 | 40 | 20 |
|
|
| 20 | 20.0 | 19.8 | 44.0 | 52.0 | 104.0 | 20.0 | 6 | 0.30 | 40 | 20 |
|
|
| 20/0,5 | 20.0 | 19.8 | 44.0 | 52.0 | 104.0 | 20.0 | 6 | 0.50 | 40 | 20 |
|
|
| 20/1 | 20.0 | 19.8 | 44.0 | 52.0 | 104.0 | 20.0 | 6 | 1.00 | 40 | 20 |
|
|
| 20/2 | 20.0 | 19.8 | 44.0 | 52.0 | 104.0 | 20.0 | 6 | 2.00 | 40 | 20 |
|
