EXM1-M03-0113 | EXM1 Chipmaker Z6 3xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features No Weldon Unequal tooth pitch Chip breaking 3xD Dynamic helical pitch Non-Center Cutting Corner radius

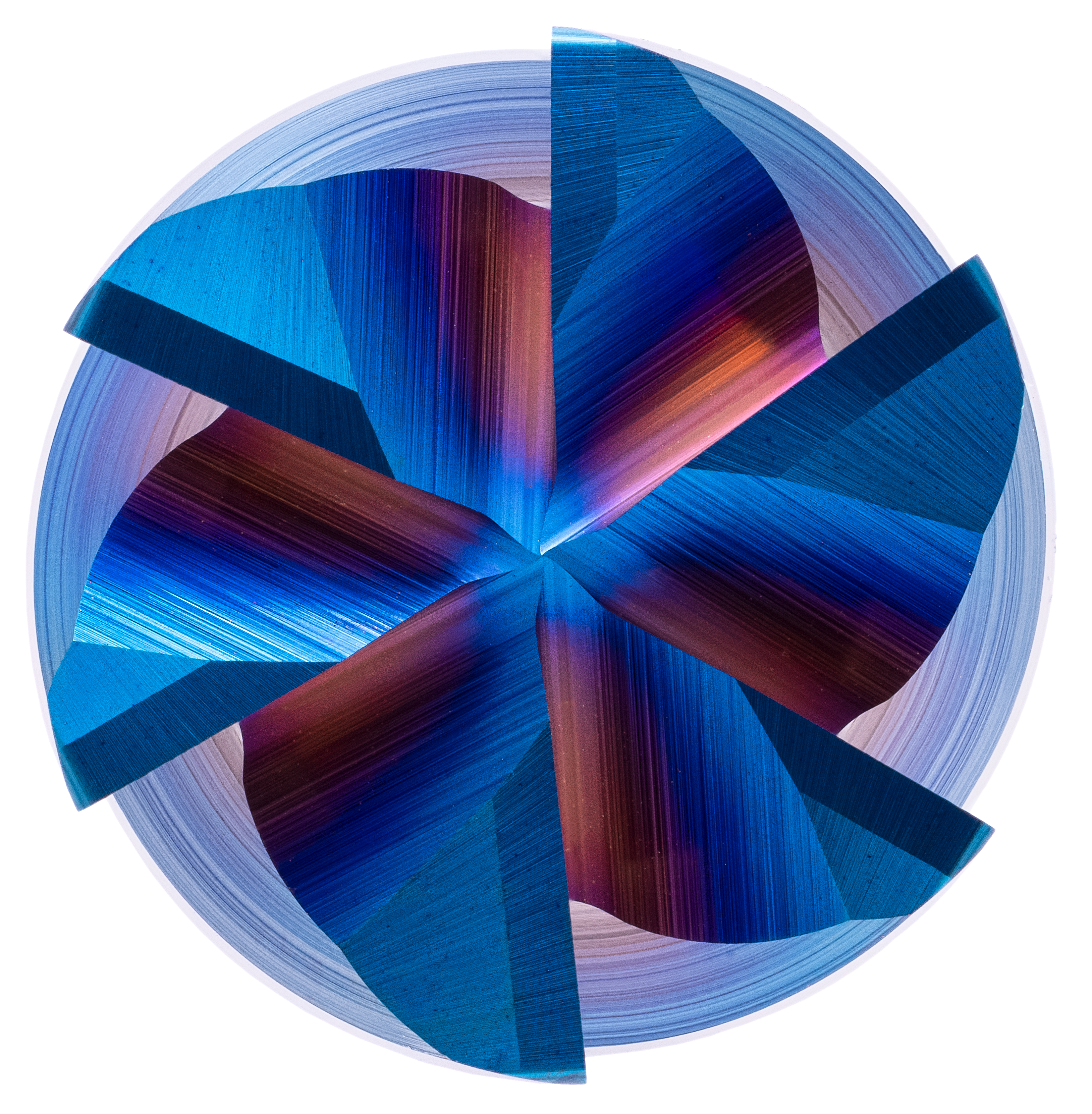

  • 6 cutting edges for best performance and an excellent material removal rate
  • Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
  • Ideal chip evacuation, even with high feed rates and big radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
Suitability for
Roughing Finishing


EXM1-M03-0113
EXM1-M03-0113
EXM1-M03-0113
EXM1-M03-0113
EXM1-M03-0113

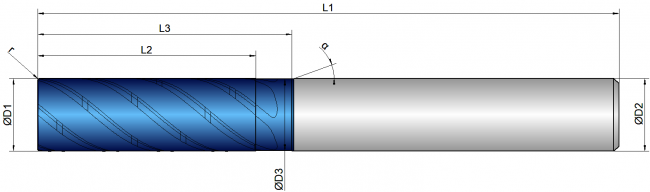

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
6 6.0 5.8 20.0 25.0 63.0 6.0 6 0.15 40 20 green

8 8.0 7.8 26.0 30.0 70.0 8.0 6 0.20 40 20 green

10 10.0 9.8 32.0 36.0 80.0 10.0 6 0.20 40 20 green

12 12.0 11.8 39.0 45.0 93.0 12.0 6 0.20 40 20 red

16 16.0 15.8 51.0 55.0 110.0 16.0 6 0.30 40 20 green

20 20.0 19.8 63.0 70.0 125.0 20.0 6 0.30 40 20 green
