EXM1-M03-0124 | EXM1 Chipmaker Z6 4xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch Chip breaking 4xD Dynamic helical pitch Non-Center Cutting Corner radius

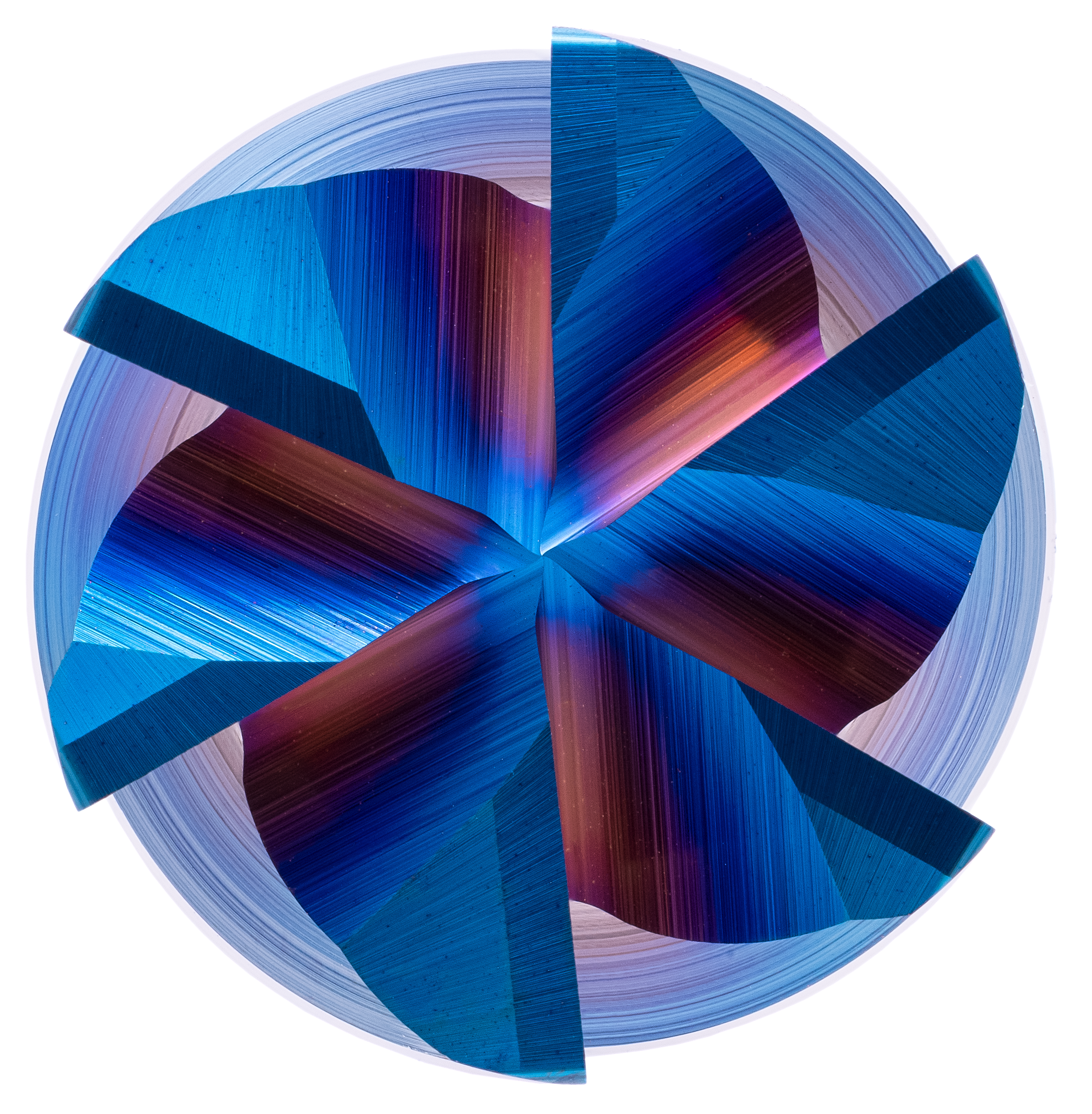

  • 6 cutting edges for best performance and an excellent material removal rate
  • Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
  • Ideal chip evacuation, even with high feed rates and big radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
Suitability for
Roughing Finishing


Products for processing Stainless steel (VA) Product series "Stainless steel (VA)" at a glance
EXM1-M03-0124
EXM1-M03-0124
EXM1-M03-0124
EXM1-M03-0124
EXM1-M03-0124

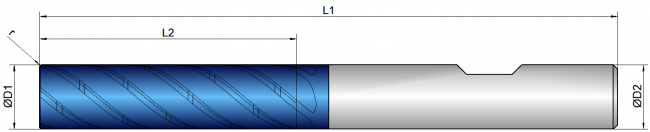

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6 6.0 26.0 67.0 6.0 6 0.15 40 orange

6/0,5 6.0 26.0 67.0 6.0 6 0.50 40 orange

6/1 6.0 26.0 67.0 6.0 6 1.00 40 orange

6/2 6.0 26.0 67.0 6.0 6 2.00 40 orange

8 8.0 34.0 75.0 8.0 6 0.20 40 orange

8/0,5 8.0 34.0 75.0 8.0 6 0.50 40 orange

8/1 8.0 34.0 75.0 8.0 6 1.00 40 orange

8/2 8.0 34.0 75.0 8.0 6 2.00 40 orange

10 10.0 42.0 90.0 10.0 6 0.20 40 orange

10/0,5 10.0 42.0 90.0 10.0 6 0.50 40 orange

10/1 10.0 42.0 90.0 10.0 6 1.00 40 orange

10/2 10.0 42.0 90.0 10.0 6 2.00 40 orange

12 12.0 51.0 100.0 12.0 6 0.20 40 orange

12/0,5 12.0 51.0 100.0 12.0 6 0.50 40 orange

12/1 12.0 51.0 100.0 12.0 6 1.00 40 orange

12/2 12.0 51.0 100.0 12.0 6 2.00 40 orange

16 16.0 67.0 125.0 16.0 6 0.30 40 green

16/0,5 16.0 67.0 125.0 16.0 6 0.50 40 orange

16/1 16.0 67.0 125.0 16.0 6 1.00 40 red

16/2 16.0 67.0 125.0 16.0 6 2.00 40 orange

20 20.0 83.0 150.0 20.0 6 0.30 40 orange

20/0,5 20.0 83.0 150.0 20.0 6 0.50 40 orange

20/1 20.0 83.0 150.0 20.0 6 1.00 40 orange

20/2 20.0 83.0 150.0 20.0 6 2.00 40 orange
