EXM1-M03-0133 | EXM1 Chipmaker Z6 5xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features No Weldon Unequal tooth pitch Chip breaking 5xD Dynamic helical pitch Non-Center Cutting Corner radius

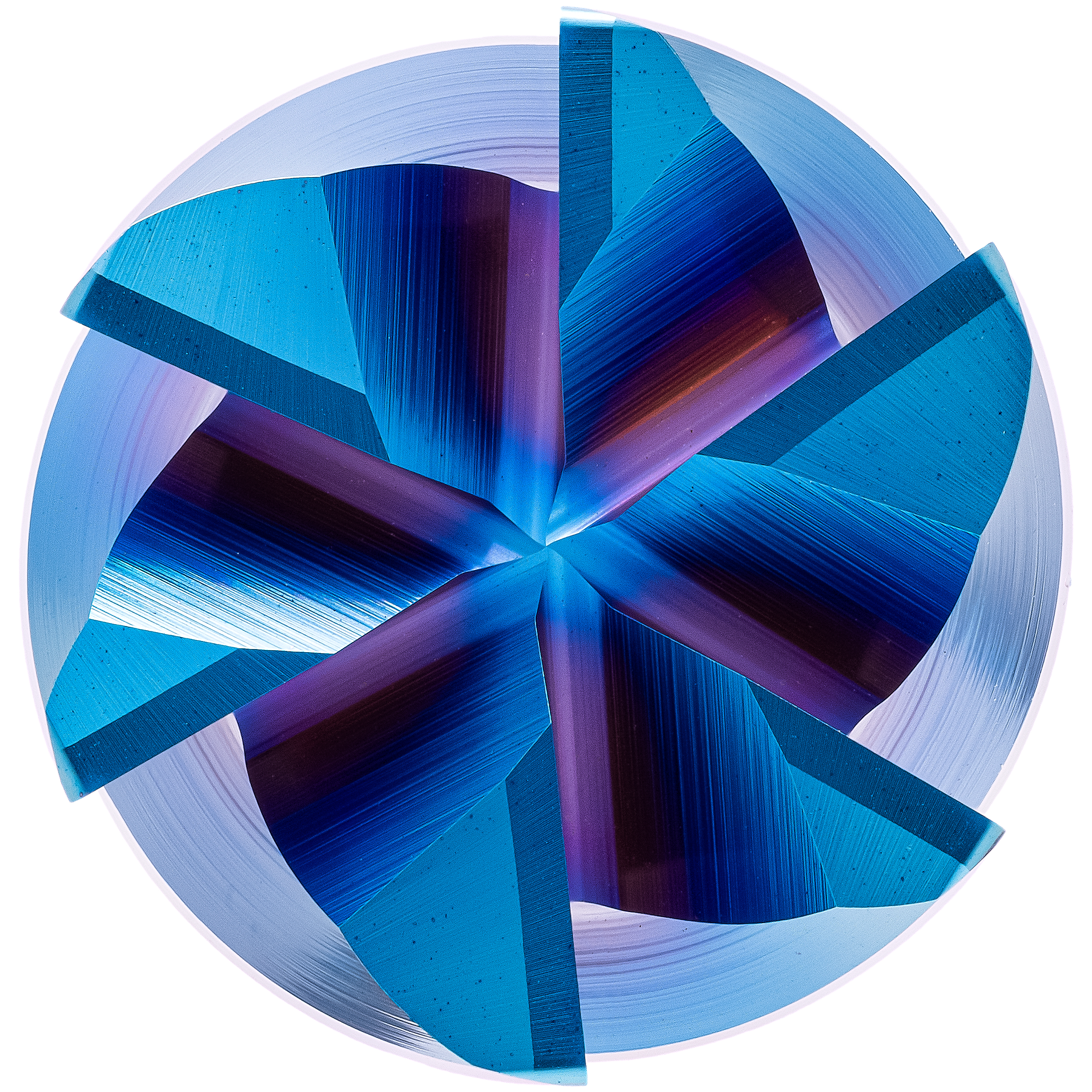

  • 6 cutting edges for best performance and an excellent material removal rate
  • Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
  • Ideal chip evacuation, even with high feed rates and big radial depth of cutting
Suitability for
Roughing Finishing


EXM1-M03-0133
EXM1-M03-0133
EXM1-M03-0133
EXM1-M03-0133
EXM1-M03-0133

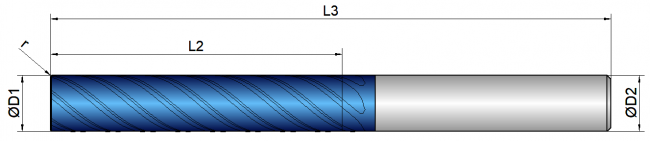

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6 6.0 31.0 75.0 6.0 6 0.15 40 green

8 8.0 42.0 90.0 8.0 6 0.20 40 green

10 10.0 52.0 100.0 10.0 6 0.20 40 green

12 12.0 62.0 119.0 12.0 6 0.25 40 green

16 16.0 82.0 134.0 16.0 6 0.30 40 green

20 20.0 102.0 160.0 20.0 6 0.30 40 green
