EXM1-M04-0043 | EXM1 Mirrormaker Z7 4xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy High Performance Cutting
Applications Trimming X
Features No Weldon Unequal tooth pitch 4xD Dynamic helical pitch Non-Center Cutting Sharp-edged
  • Slightly conical tool core and special helical pitch

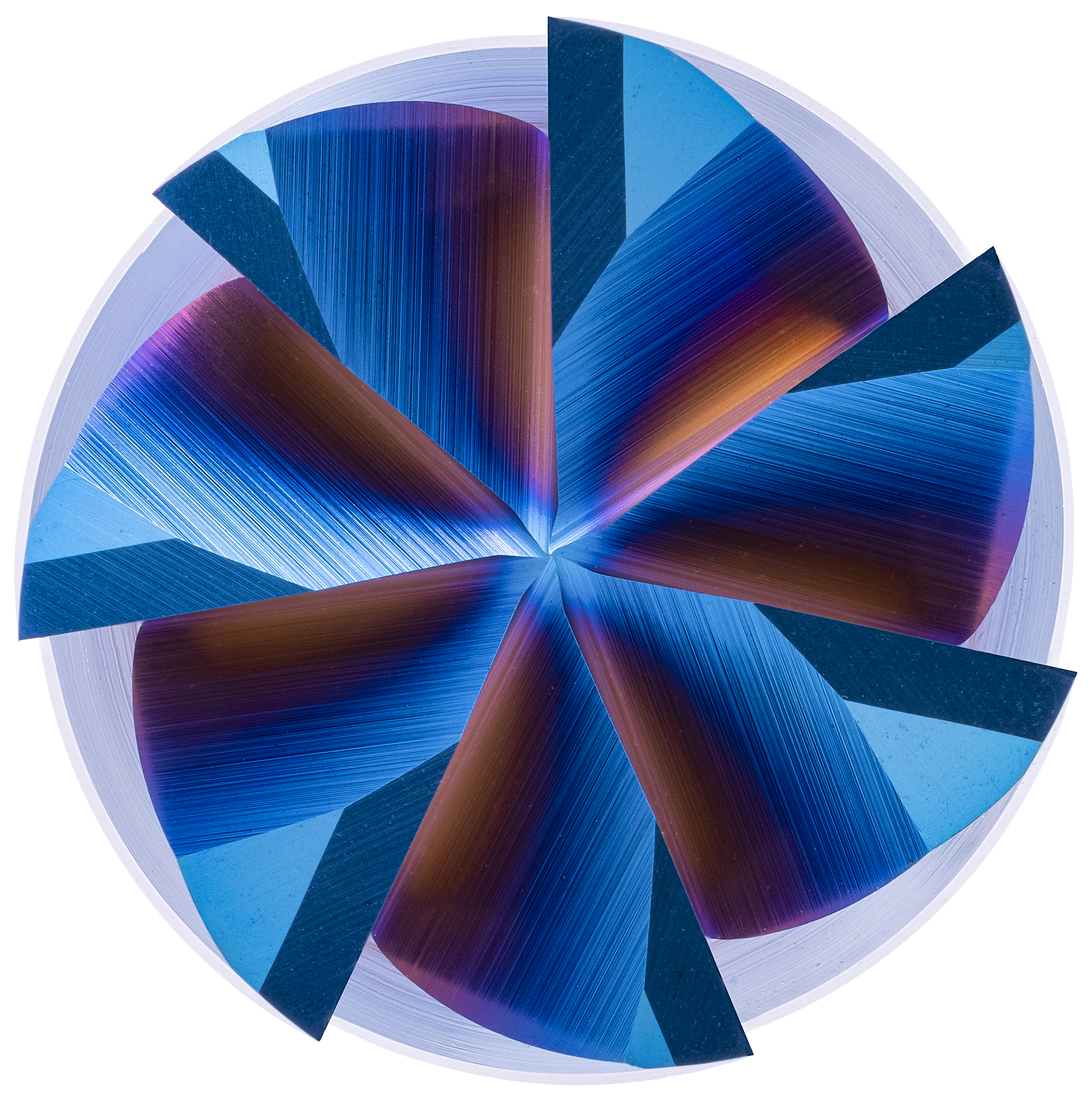

  • 7 specially finished cutting edges with optimized geometry
  • Face-Finish-bevel for smooth workpiece surfaces
  • For excellent surfaces and maximum dimensional accuracy
  • 7 cutting edges for highest feed rates
Suitability for
Roughing Finishing


EXM1-M04-0043
EXM1-M04-0043
EXM1-M04-0043
EXM1-M04-0043
EXM1-M04-0043

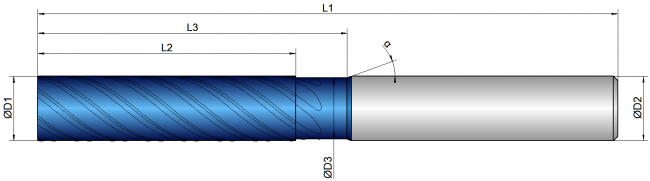

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
6 6.0 5.8 26.0 32.0 63.0 6.0 7 39 20 orange
