Expert

EXM1-M04-0053 | EXM1 Mirrormaker Z7 5xD ANNX

Cooling water max
Tolerance e8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy High Performance Cutting
Applications Trimming X
Features No Weldon Unequal tooth pitch 5xD Dynamic helical pitch Non-Center Cutting Sharp-edged
  • Slightly conical tool core and special helical pitch

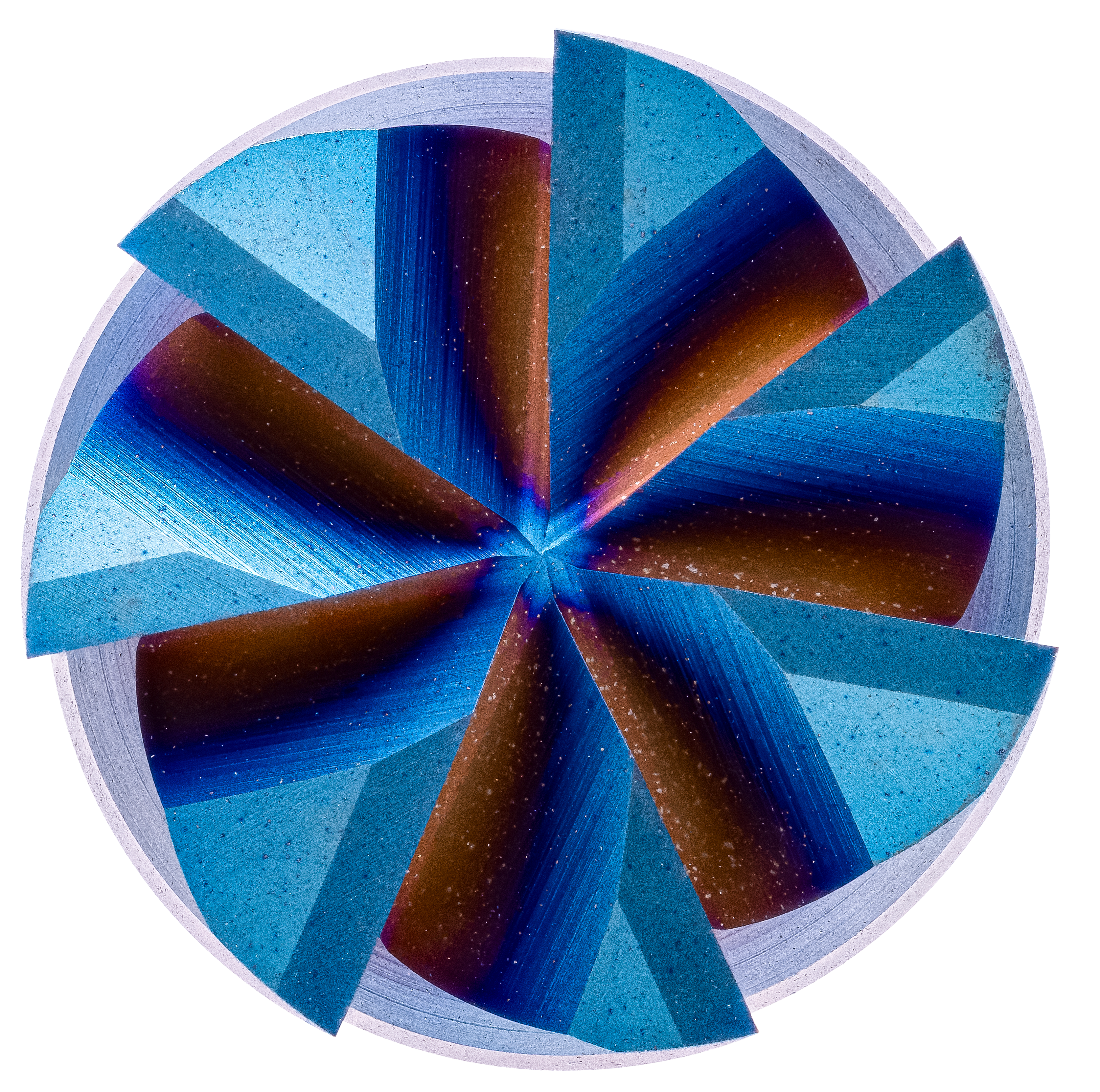

  • 7 specially finished cutting edges with optimized geometry
  • Face-Finish-bevel for smooth workpiece surfaces
  • 7 cutting edges for highest feed rates
  • For excellent surfaces and maximum dimensional accuracy
Suitability for
Roughing Finishing


EXM1-M04-0053
EXM1-M04-0053
EXM1-M04-0053
EXM1-M04-0053
EXM1-M04-0053
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
6 6.0 31.0 75.0 6.0 7 39 red

8 8.0 42.0 90.0 8.0 7 39 green

10 10.0 52.0 100.0 10.0 7 39 green

12 12.0 62.0 119.0 12.0 7 39 green

16 16.0 82.0 134.0 16.0 7 39 green

20 20.0 102.0 160.0 20.0 7 39 green
