EXM1-M06-0054 | EXM1 Formmaker Z4 2xD ANNX
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | AlphaNox Navy X |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Optimierte Mikrogeometrie mit höherer Vibrationsresistenz sowie verstärkter Schneidkantenstabilität
- Spezielle Ungleichteilung gepaart mit variabler Drallsteigung für eine perfekte Laufruhe
- Geometrie für das Konturfräsen, hohe seitliche Zustellungen sowie Vollnutfräsen bis 1xD

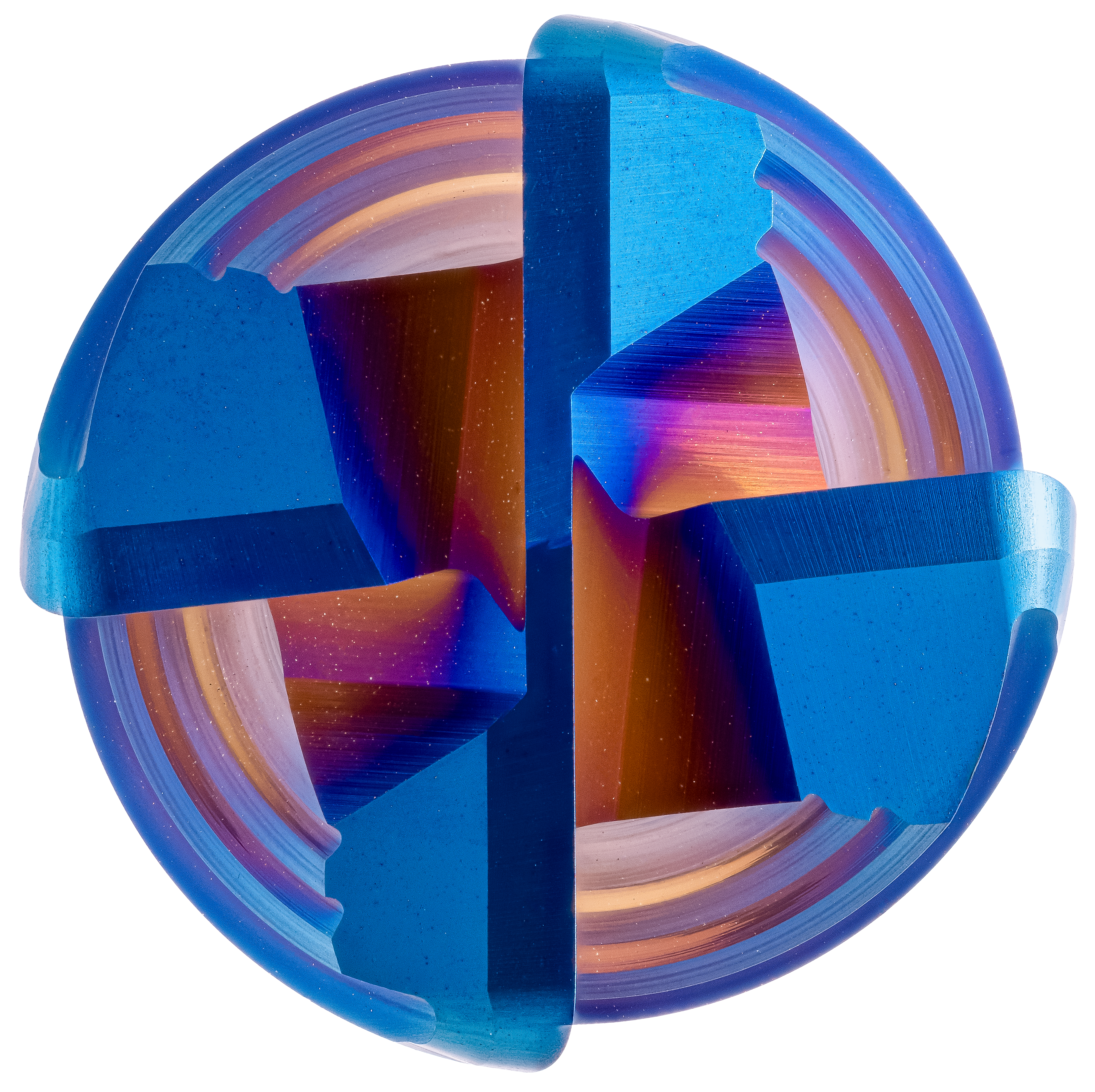

- Angepasste Stirn mit zwei Schneiden bis zur Mitte, zum prozesssicheren helikalen Eintauchen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

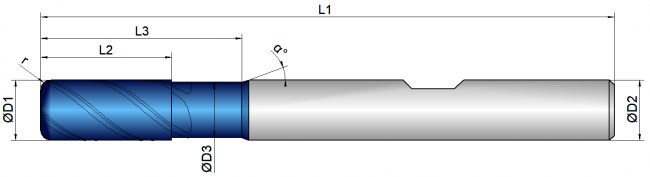

EXM1-M06-0054
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2/0,25 | 2,0 | 1,8 | 5,0 | 8,0 | 57,0 | 6,0 | 4 | 0,25 | 40 | 20 |
|
|
| 3/0,25 | 3,0 | 2,8 | 8,0 | 13,0 | 57,0 | 6,0 | 4 | 0,25 | 40 | 20 |
|
|
| 3/0,5 | 3,0 | 2,8 | 8,0 | 13,0 | 57,0 | 6,0 | 4 | 0,50 | 40 | 20 |
|
|
| 3/1 | 3,0 | 2,8 | 8,0 | 13,0 | 57,0 | 6,0 | 4 | 1,00 | 40 | 20 |
|
|
| 4/0,25 | 4,0 | 3,7 | 11,0 | 17,0 | 57,0 | 6,0 | 4 | 0,25 | 40 | 20 |
|
|
| 4/0,5 | 4,0 | 3,7 | 11,0 | 17,0 | 57,0 | 6,0 | 4 | 0,50 | 40 | 20 |
|
|
| 4/1 | 4,0 | 3,7 | 11,0 | 17,0 | 57,0 | 6,0 | 4 | 1,00 | 40 | 20 |
|
|
| 5/0,25 | 5,0 | 4,7 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 0,25 | 40 | 20 |
|
|
| 5/0,5 | 5,0 | 4,7 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 0,50 | 40 | 20 |
|
|
| 5/1 | 5,0 | 4,7 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 1,00 | 40 | 20 |
|
|
| 6/0,5 | 6,0 | 5,5 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 0,50 | 40 | 20 |
|
|
| 6/1 | 6,0 | 5,5 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 1,00 | 40 | 20 |
|
|
| 6/1,5 | 6,0 | 5,5 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 1,50 | 40 | 20 |
|
|
| 6/2 | 6,0 | 5,5 | 13,0 | 20,0 | 57,0 | 6,0 | 4 | 2,00 | 40 | 20 |
|
|
| 8/0,5 | 8,0 | 7,5 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 0,50 | 40 | 20 |
|
|
| 8/1 | 8,0 | 7,5 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 1,00 | 40 | 20 |
|
|
| 8/2 | 8,0 | 7,5 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 2,00 | 40 | 20 |
|
|
| 8/3 | 8,0 | 7,5 | 19,0 | 25,0 | 63,0 | 8,0 | 4 | 3,00 | 40 | 20 |
|
|
| 10/0,5 | 10,0 | 9,5 | 22,0 | 30,0 | 72,0 | 10,0 | 4 | 0,50 | 40 | 20 |
|
|
| 10/1 | 10,0 | 9,5 | 22,0 | 30,0 | 72,0 | 10,0 | 4 | 1,00 | 40 | 20 |
|
|
| 10/2 | 10,0 | 9,5 | 22,0 | 30,0 | 72,0 | 10,0 | 4 | 2,00 | 40 | 20 |
|
|
| 10/3 | 10,0 | 9,5 | 22,0 | 30,0 | 72,0 | 10,0 | 4 | 3,00 | 40 | 20 |
|
|
| 12/0,5 | 12,0 | 11,0 | 26,0 | 36,0 | 83,0 | 12,0 | 4 | 0,50 | 40 | 20 |
|
|
| 12/1 | 12,0 | 11,0 | 26,0 | 36,0 | 83,0 | 12,0 | 4 | 1,00 | 40 | 20 |
|
|
| 12/2 | 12,0 | 11,0 | 26,0 | 36,0 | 83,0 | 12,0 | 4 | 2,00 | 40 | 20 |
|
|
| 12/3 | 12,0 | 11,0 | 26,0 | 36,0 | 83,0 | 12,0 | 4 | 3,00 | 40 | 20 |
|
|
| 16/0,5 | 16,0 | 15,0 | 34,0 | 42,0 | 92,0 | 16,0 | 4 | 0,50 | 40 | 20 |
|
|
| 16/1 | 16,0 | 15,0 | 34,0 | 42,0 | 92,0 | 16,0 | 4 | 1,00 | 40 | 20 |
|
|
| 16/2 | 16,0 | 15,0 | 34,0 | 42,0 | 92,0 | 16,0 | 4 | 2,00 | 40 | 20 |
|
|
| 16/3 | 16,0 | 15,0 | 34,0 | 42,0 | 92,0 | 16,0 | 4 | 3,00 | 40 | 20 |
|
|
| 20/0,5 | 20,0 | 19,0 | 42,0 | 52,0 | 104,0 | 20,0 | 4 | 0,50 | 40 | 20 |
|
|
| 20/1 | 20,0 | 19,0 | 42,0 | 52,0 | 104,0 | 20,0 | 4 | 1,00 | 40 | 20 |
|
|
| 20/2 | 20,0 | 19,0 | 42,0 | 52,0 | 104,0 | 20,0 | 4 | 2,00 | 40 | 20 |
|
|
| 20/3 | 20,0 | 19,0 | 42,0 | 52,0 | 104,0 | 20,0 | 4 | 3,00 | 40 | 20 |
|
|
| 20/4 | 20,0 | 19,0 | 42,0 | 52,0 | 104,0 | 20,0 | 4 | 4,00 | 40 | 20 |
|
