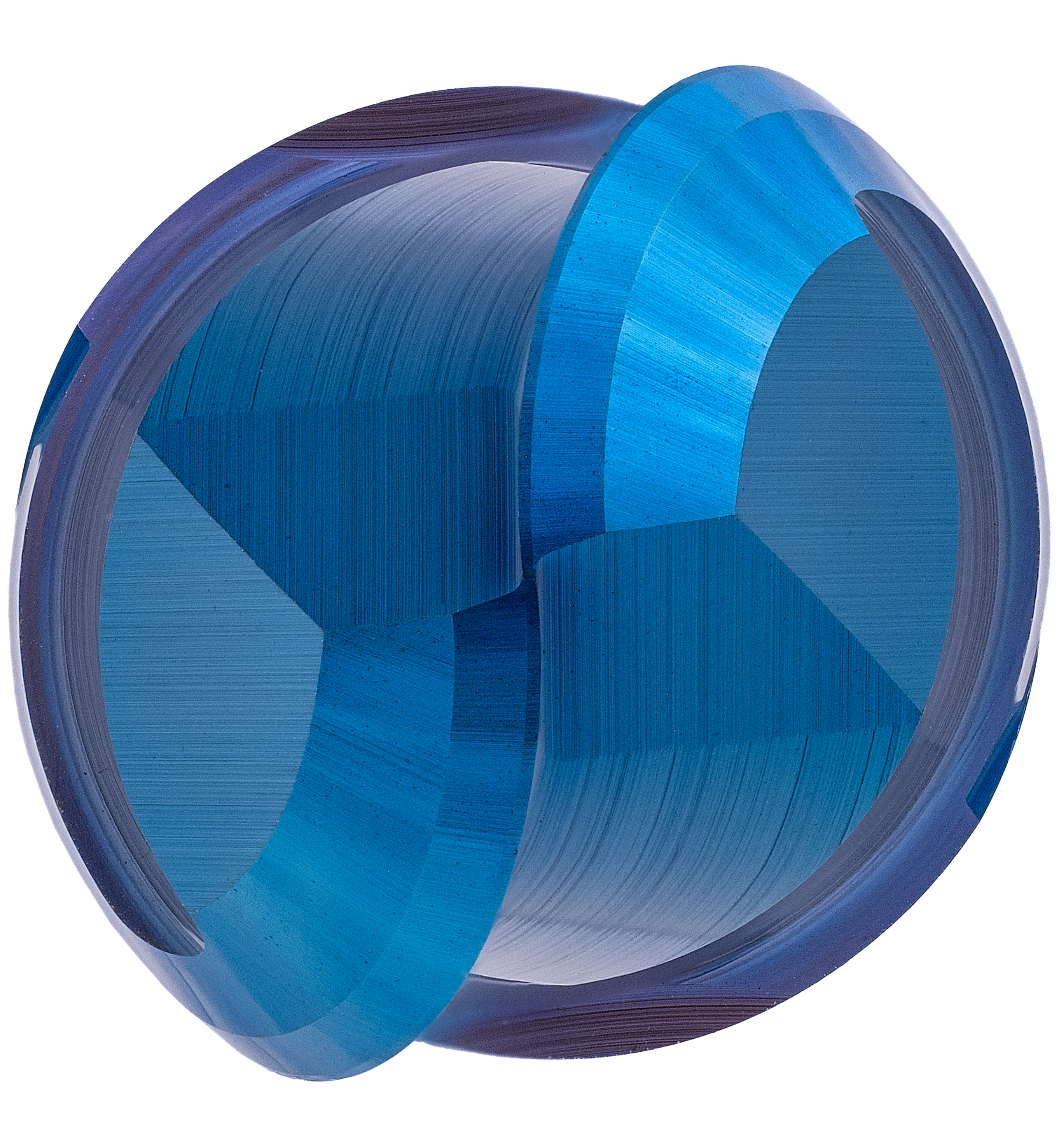

EXM1-M08-0013 | EXM1 Rowmaker Z2 1xD long ANNX
| Cooling |
|
|---|---|
| Tolerance | f8 |
| Coating | AlphaNox Navy X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Adjusted core for smooth running
- Defined microbevel for support and stabilization
- Optimized cross cutting edge for maximum stability in the tool center
- Radius tolerance r ≤ 2 mm: ± 0.003 mm
- Radius tolerance r > 2 mm: ± 0.005 mm
- For use in HSC milling
- For roughing and finishing
- Long version for deeper cavities
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

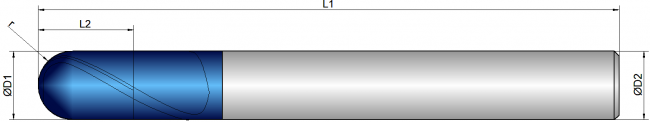

EXM1-M08-0013
|
D1
|
L2
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|
| 0,5 | 0.5 | 1.5 | 75.0 | 6.0 | 2 | 0.25 | 30 | 12 |
|
|
| 1 | 1.0 | 2.0 | 75.0 | 6.0 | 2 | 0.50 | 30 | 12 |
|
|
| 1,5 | 1.5 | 3.0 | 75.0 | 6.0 | 2 | 0.75 | 30 | 12 |
|
|
| 2 | 2.0 | 4.0 | 75.0 | 6.0 | 2 | 1.00 | 30 | 12 |
|
|
| 2,5 | 2.5 | 5.0 | 75.0 | 6.0 | 2 | 1.25 | 30 | 12 |
|
|
| 3 | 3.0 | 6.0 | 75.0 | 6.0 | 2 | 1.50 | 30 | 12 |
|
|
| 4 | 4.0 | 7.0 | 75.0 | 6.0 | 2 | 2.00 | 30 | 12 |
|
|
| 5 | 5.0 | 8.0 | 75.0 | 6.0 | 2 | 2.50 | 30 | 12 |
|
|
| 6 | 6.0 | 10.0 | 75.0 | 6.0 | 2 | 3.00 | 30 | - |
|
|
| 8 | 8.0 | 12.0 | 75.0 | 8.0 | 2 | 4.00 | 30 | - |
|
|
| 10 | 10.0 | 14.0 | 85.0 | 10.0 | 2 | 5.00 | 30 | - |
|
|
| 12 | 12.0 | 16.0 | 100.0 | 12.0 | 2 | 6.00 | 30 | - |
|
