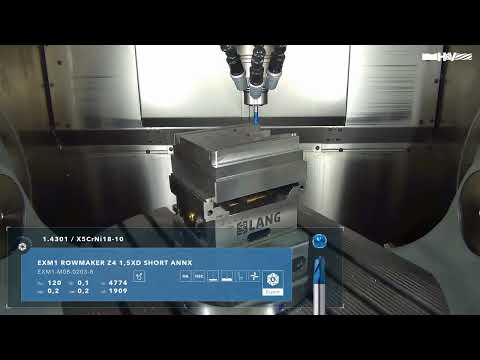

EXM1-M08-0203 | EXM1 Rowmaker Z4 1,5xD short ANNX

Cooling water max
Tolerance f8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Engraving Multipass milling X, Y, Z
Features No Weldon Center Cutting
  • Adjusted wedge angle and helical pitch for smooth running and a soft cut
  • Reinforced face geometry with a special finishing bevel for maximum performance and surface quality
  • Highest machining performance due to four cutting edges
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For use in HSC milling
  • For roughing and finishing
Suitability for
Roughing Finishing


EXM1-M08-0203
EXM1-M08-0203
EXM1-M08-0203
EXM1-M08-0203
EXM1-M08-0203
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
β
winkel_beta
3 3.0 5.0 54.0 6.0 4 1.50 40 12 green
4 4.0 8.0 54.0 6.0 4 2.00 40 12 green
5 5.0 9.0 54.0 6.0 4 2.50 40 12 green
6 6.0 10.0 54.0 6.0 4 3.00 40 - green
8 8.0 12.0 59.0 8.0 4 4.00 40 - green
10 10.0 14.0 66.0 10.0 4 5.00 40 - green
12 12.0 16.0 73.0 12.0 4 6.00 40 - green
16 16.0 22.0 82.0 16.0 4 8.00 40 - green
