EXM1-M08-0223 | EXM1 Rowmaker Z4 1xD long ANNX

Cooling water max
Tolerance f8
Coating AlphaNox Navy X
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Engraving Multipass milling X, Y, Z
Features No Weldon Center Cutting 1xD Corner radius
  • Adjusted wedge angle and helical pitch for smooth running and a soft cut
  • Reinforced face geometry with a special finishing bevel for maximum performance and surface quality
  • Highest machining performance due to four cutting edges
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For use in HSC milling
  • For roughing and finishing
  • Long version for deeper cavities
Suitability for
Roughing Finishing


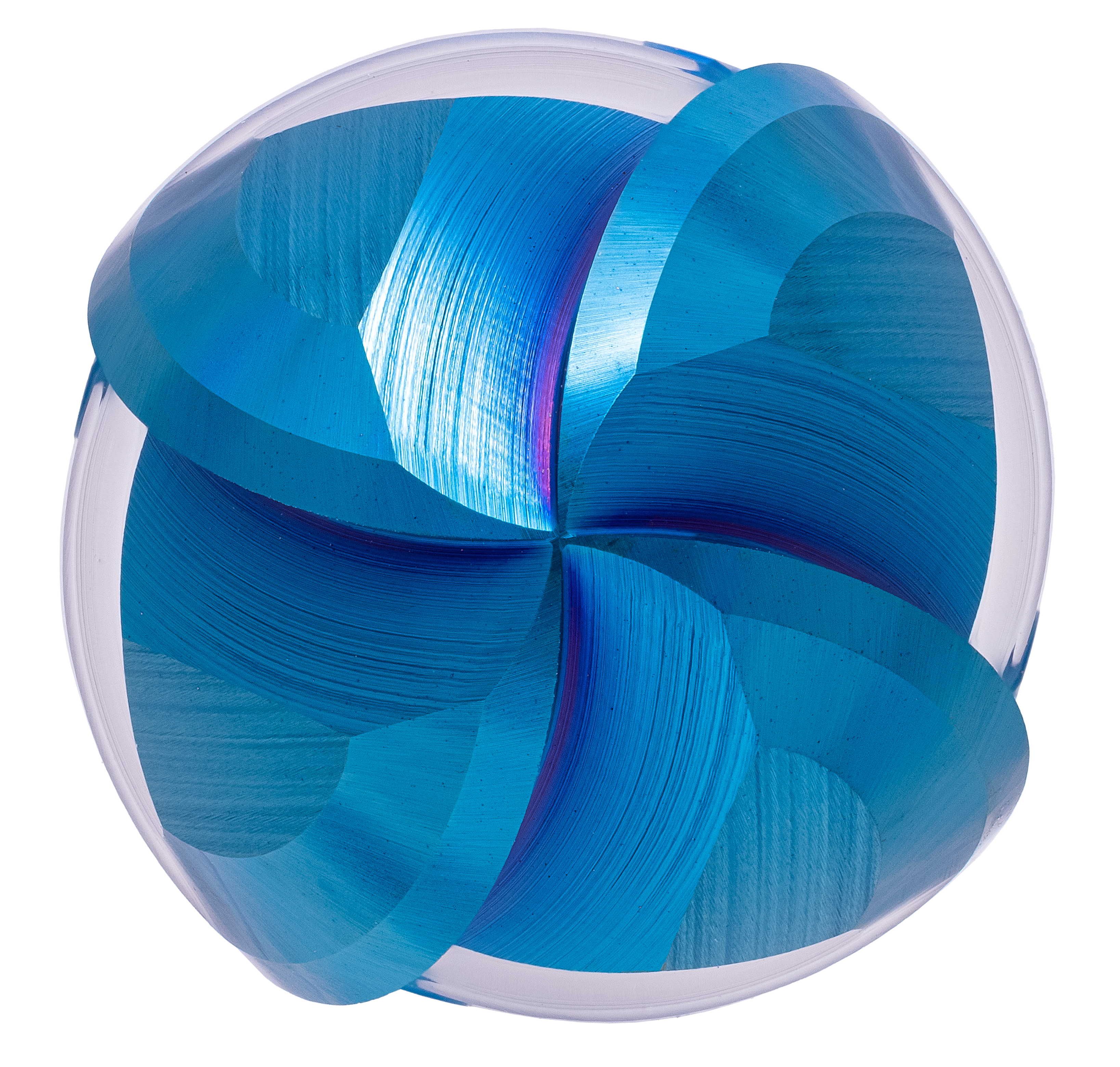

EXM1-M08-0223
EXM1-M08-0223
EXM1-M08-0223
EXM1-M08-0223
EXM1-M08-0223

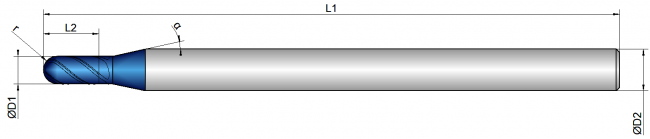

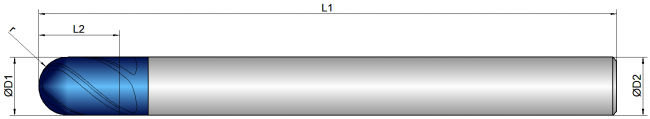

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
β
winkel_beta
3 3.0 5.0 83.0 6.0 4 1.50 40 12 green

4 4.0 8.0 83.0 6.0 4 2.00 40 12 green

5 5.0 9.0 83.0 6.0 4 2.50 40 12 green

6 6.0 10.0 83.0 6.0 4 3.00 40 - green

8 8.0 12.0 100.0 8.0 4 4.00 40 - green

10 10.0 14.0 100.0 10.0 4 5.00 40 - green

12 12.0 16.0 100.0 12.0 4 6.00 40 - green

16 16.0 22.0 125.0 16.0 4 8.00 40 - green
