EXM1-M26-0123 | EXM1 Smoothmaker Z4 280° ANNX
Cooling |
![]() |
---|---|
Tolerance | f8 |
Coating | AlphaNox Navy X |
Downloads | Catalog page & Cutting data |
Strategy |
|
---|---|
Applications |
|
Features |
|
- 4 specially relief-ground cutting edges for efficient 5-axis machining of demanding work pieces
- Thanks to the 280° cutting edge, the entire ball can be used and the tool is designed for undercut machining
- Perfectly suited for for- and backward deburring with high surface quality requirements
Suitability for | |
---|---|
Roughing | Finishing |
|
|

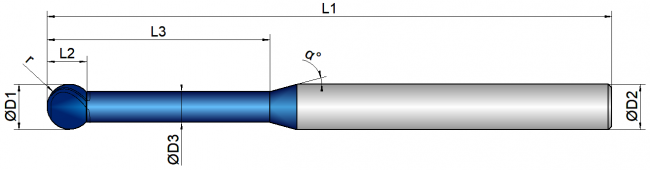

EXM1-M26-0123
|
D1
|
D3
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
---|---|---|---|---|---|---|---|---|---|---|---|
0,8 | 0.8 | 0.4 | 6.0 | 60.0 | 4.0 | 4 | 0.40 | 30 | 15 |
![]() |
|
1,3 | 1.3 | 0.7 | 8.0 | 60.0 | 4.0 | 4 | 0.65 | 30 | 15 |
![]() |
|
1,5 | 1.5 | 0.8 | 9.0 | 60.0 | 4.0 | 4 | 0.75 | 30 | 15 |
![]() |
|
1,8 | 1.8 | 0.9 | 10.0 | 60.0 | 4.0 | 4 | 0.90 | 30 | 15 |
![]() |
|
2,3 | 2.3 | 1.2 | 13.0 | 70.0 | 6.0 | 4 | 1.15 | 30 | 15 |
![]() |
|
2,5 | 2.5 | 1.3 | 14.0 | 70.0 | 6.0 | 4 | 1.25 | 30 | 15 |
![]() |
|
2,8 | 2.8 | 1.4 | 15.0 | 70.0 | 6.0 | 4 | 1.40 | 30 | 15 |
![]() |
|
3,3 | 3.3 | 1.6 | 18.0 | 70.0 | 6.0 | 4 | 1.65 | 30 | 15 |
![]() |
|
3,8 | 3.8 | 1.9 | 20.0 | 70.0 | 6.0 | 4 | 1.90 | 30 | 15 |
![]() |
|
4,8 | 4.8 | 2.4 | 25.0 | 70.0 | 6.0 | 4 | 2.40 | 30 | 15 |
![]() |
|
5,8 | 5.8 | 2.9 | 30.0 | 70.0 | 6.0 | 4 | 2.90 | 30 | 15 |
![]() |
|
7,8 | 7.8 | 3.9 | 40.0 | 100.0 | 8.0 | 4 | 3.90 | 30 | 15 |
![]() |
|
