EXN1-M01-0043 | EXN1 Performmaker Z2 2xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data

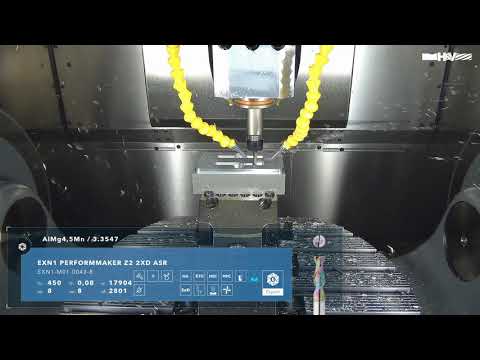

Strategy Extended Trochoidal Cutting High Speed Cutting High Performance Cutting
Applications Trimming Full slot X, Y, Z helical
Features No Weldon 2xD Center Cutting Sharp-edged
  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • For use in high speed milling machines
  • For roughing and finishing, up to 1.5xD full slot
  • For process reliable, helical diving and immersion
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M01-0043
EXN1-M01-0043
EXN1-M01-0043
EXN1-M01-0043
EXN1-M01-0043
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
1 1.0 0.9 3.0 5.0 57.0 6.0 2 38 20 green

2 2.0 1.8 6.0 8.0 57.0 6.0 2 38 20 green

3 3.0 2.8 8.0 13.0 57.0 6.0 2 38 20 orange

4 4.0 3.7 13.0 18.0 57.0 6.0 2 38 20 green

6 6.0 5.5 16.0 21.0 57.0 6.0 2 38 20 green

8 8.0 7.5 22.0 27.0 63.0 8.0 2 38 20 orange

10 10.0 9.4 25.0 30.0 72.0 10.0 2 38 20 green

12 12.0 11.4 28.0 33.0 83.0 12.0 2 38 20 green

16 16.0 15.4 36.0 41.0 92.0 16.0 2 38 20 green

20 20.0 19.4 41.0 51.0 104.0 20.0 2 38 20 red
