EXN1-M01-0093 | EXN1 Performmaker Z3 2xD ASR
| Cooling |
|
|---|---|
| Tolerance | h6 |
| Coating | AlphaSlide Rainbow |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Defined clearance angle for ideal stabilization with high cutting depths
- Special helical pitch for smooth running and soft cut
- Extra large chip chambers for an extreme chip volume
- Sharp-edged version without edge protection
- For process reliable, helical diving and immersion
- For roughing and finishing, up to 2xD full slot
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

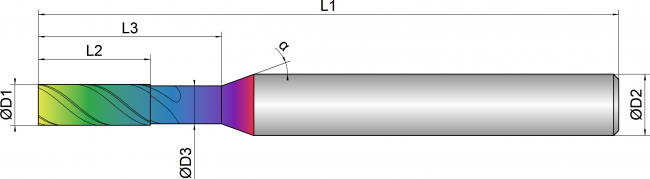

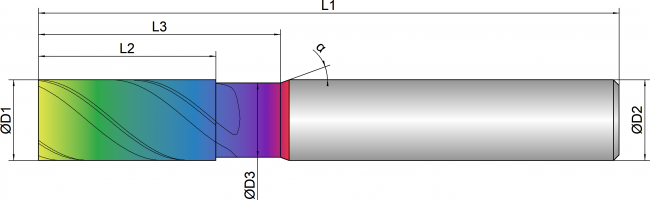

EXN1-M01-0093
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 2.0 | 1.8 | 6.0 | 12.0 | 57.0 | 6.0 | 3 | 45 | 20 |
|
|
| 3 | 3.0 | 2.7 | 8.0 | 14.0 | 57.0 | 6.0 | 3 | 45 | 20 |
|
|
| 4 | 4.0 | 3.7 | 11.0 | 16.0 | 57.0 | 6.0 | 3 | 45 | 20 |
|
|
| 5 | 5.0 | 4.7 | 13.0 | 18.0 | 57.0 | 6.0 | 3 | 45 | 20 |
|
|
| 6 | 6.0 | 5.7 | 13.0 | 20.0 | 57.0 | 6.0 | 3 | 45 | 20 |
|
|
| 8 | 8.0 | 7.4 | 21.0 | 26.0 | 63.0 | 8.0 | 3 | 45 | 20 |
|
|
| 10 | 10.0 | 9.2 | 22.0 | 31.0 | 72.0 | 10.0 | 3 | 45 | 20 |
|
|
| 12 | 12.0 | 11.0 | 26.0 | 37.0 | 83.0 | 12.0 | 3 | 45 | 20 |
|
|
| 16 | 16.0 | 15.0 | 36.0 | 43.0 | 92.0 | 16.0 | 3 | 45 | 20 |
|
|
| 20 | 20.0 | 19.0 | 41.0 | 53.0 | 104.0 | 20.0 | 3 | 45 | 20 |
|
