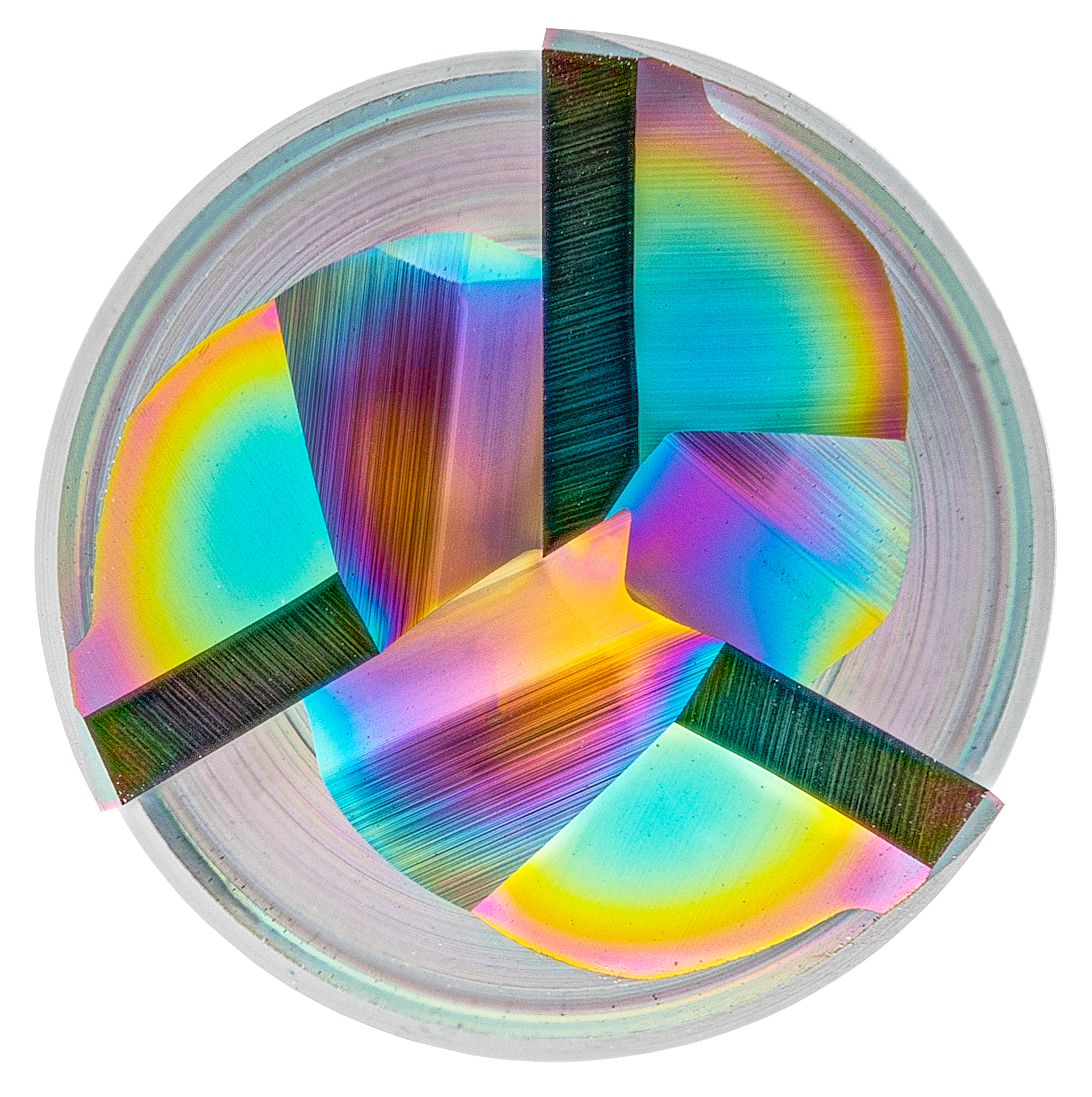

EXN1-M01-0103 | EXN1 Performmaker Z3 2xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data

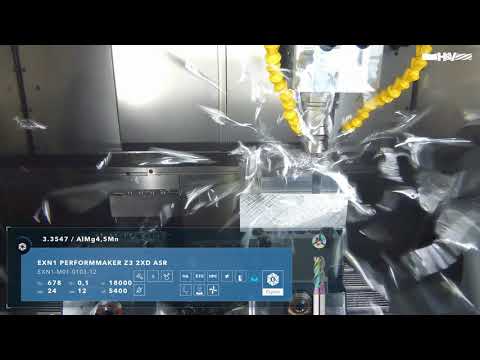

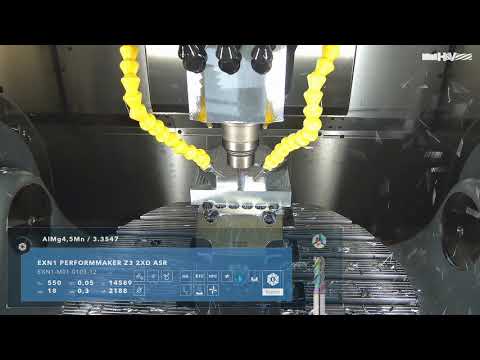

Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch 2xD Center Cutting Corner bevel
  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • For process reliable, helical diving and immersion
  • For roughing and finishing, up to 2xD full slot
Suitability for
Roughing Finishing


EXN1-M01-0103
EXN1-M01-0103
EXN1-M01-0103
EXN1-M01-0103
EXN1-M01-0103

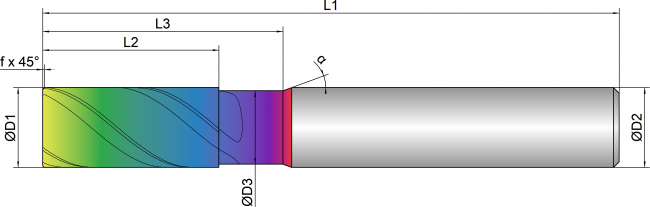

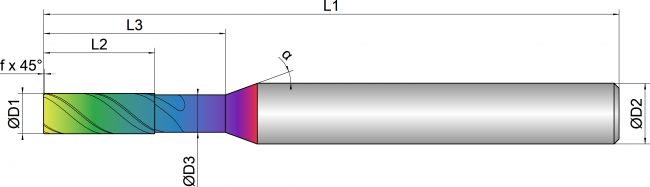

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
α
winkel_alpha
2 2.0 1.8 5.0 10.0 57.0 6.0 3 0.05 45 20 green

3 3.0 2.7 8.0 12.0 57.0 6.0 3 0.10 45 20 green

4 4.0 3.7 11.0 18.0 57.0 6.0 3 0.10 45 20 green

5 5.0 4.7 13.0 18.0 57.0 6.0 3 0.10 45 20 green

6 6.0 5.7 13.0 18.0 57.0 6.0 3 0.20 45 20 green

8 8.0 7.4 21.0 25.0 63.0 8.0 3 0.20 45 20 green

10 10.0 9.2 22.0 30.0 72.0 10.0 3 0.20 45 20 green

12 12.0 11.0 26.0 36.0 83.0 12.0 3 0.20 45 20 green

16 16.0 15.0 36.0 42.0 92.0 16.0 3 0.20 45 20 green

20 20.0 19.0 41.0 52.0 104.0 20.0 3 0.20 45 20 orange
