EXN1-M01-0123 | EXN1 Performmaker Z3 3xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch 3xD Center Cutting
  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • For process reliable, helical diving and immersion
  • For roughing and finishing
Suitability for
Roughing Finishing


EXN1-M01-0123
EXN1-M01-0123
EXN1-M01-0123
EXN1-M01-0123
EXN1-M01-0123

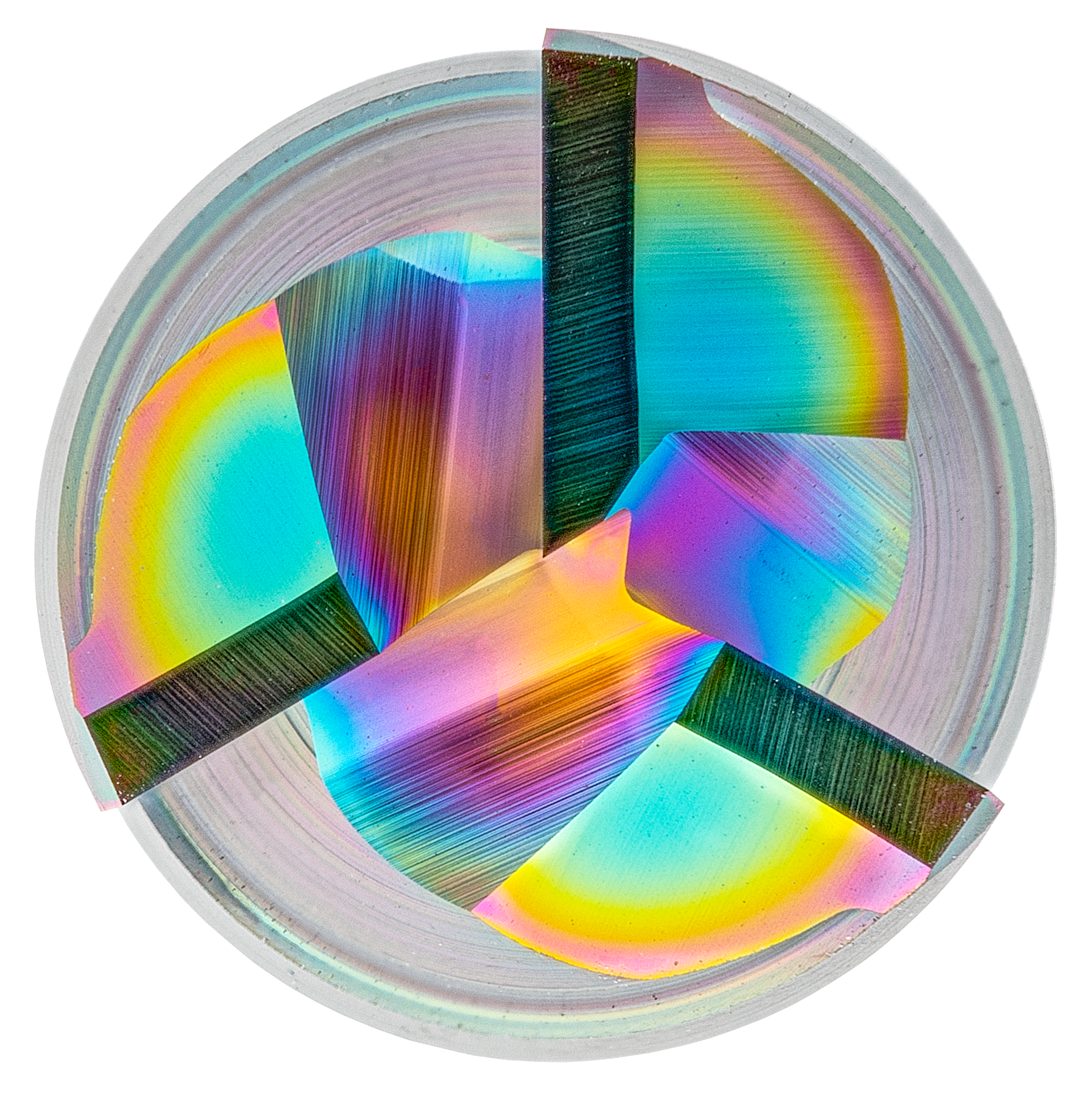

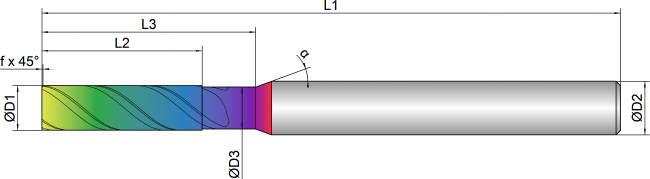

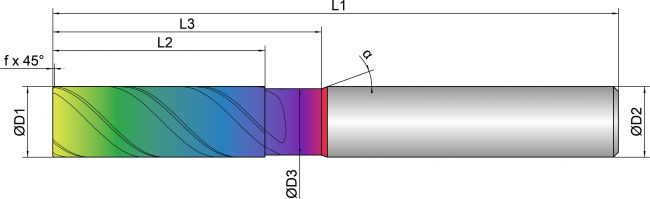

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
α
winkel_alpha
5 5.0 4.7 18.0 24.0 65.0 6.0 3 0.10 45 20 green
