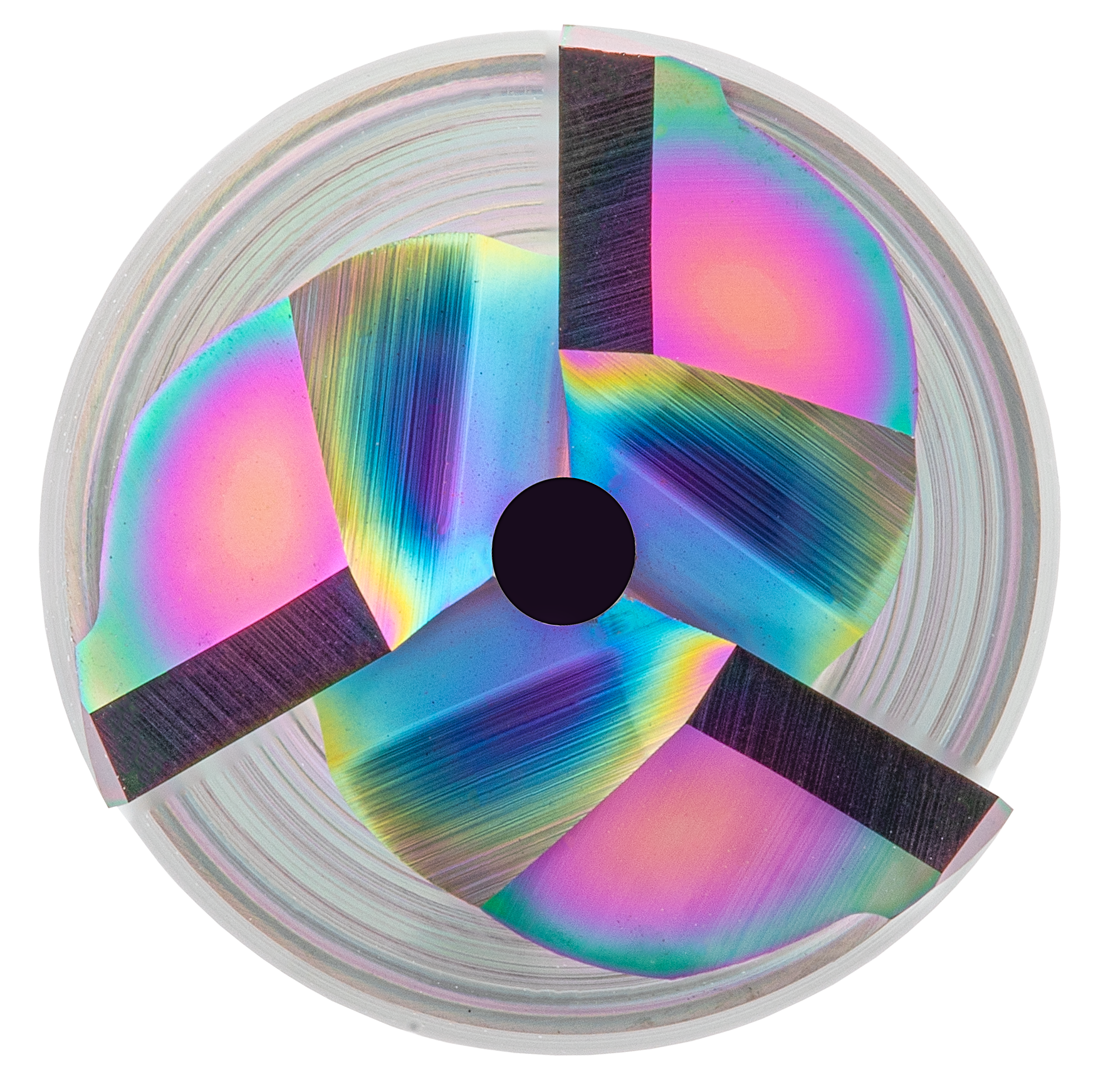

EXN1-M01-0213 | EXN1 Performmaker Z3 1,5xD long IC ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch Coolant duct system Non-Center Cutting
  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • With central inner cooling
  • Long version for deeper cavities
  • For process reliable, helical diving and immersion
  • For roughing and finishing
Suitability for
Roughing Finishing


EXN1-M01-0213
EXN1-M01-0213
EXN1-M01-0213
EXN1-M01-0213
EXN1-M01-0213

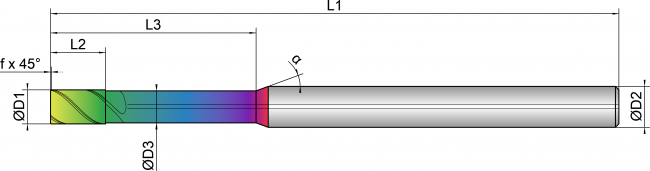

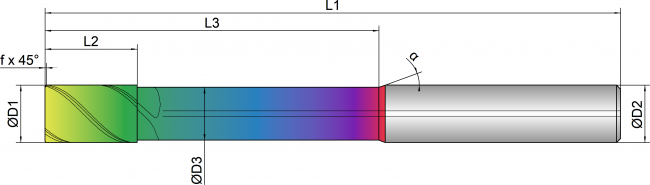

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
α
winkel_alpha
5 5.0 4.7 8.0 30.0 83.0 6.0 3 0.10 45 20 orange
6 6.0 5.7 10.0 42.0 83.0 6.0 3 0.20 45 20 green
8 8.0 7.4 13.0 62.0 100.0 8.0 3 0.20 45 20 green
10 10.0 9.2 16.0 58.0 100.0 10.0 3 0.20 45 20 green
12 12.0 11.0 19.0 73.0 119.0 12.0 3 0.20 45 20 green
16 16.0 15.0 25.0 100.0 150.0 16.0 3 0.20 45 20 green
20 20.0 19.0 32.0 98.0 150.0 20.0 3 0.20 45 20 green
