EXN1-M01-0293 | EXN1 Performmaker Z4 2xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch 2xD Dynamic helical pitch Center Cutting Sharp-edged
  • Extra large chip chambers for ideal chip evacuation
  • Unequal tooth pitch combined with variable helical pitch for smooth running

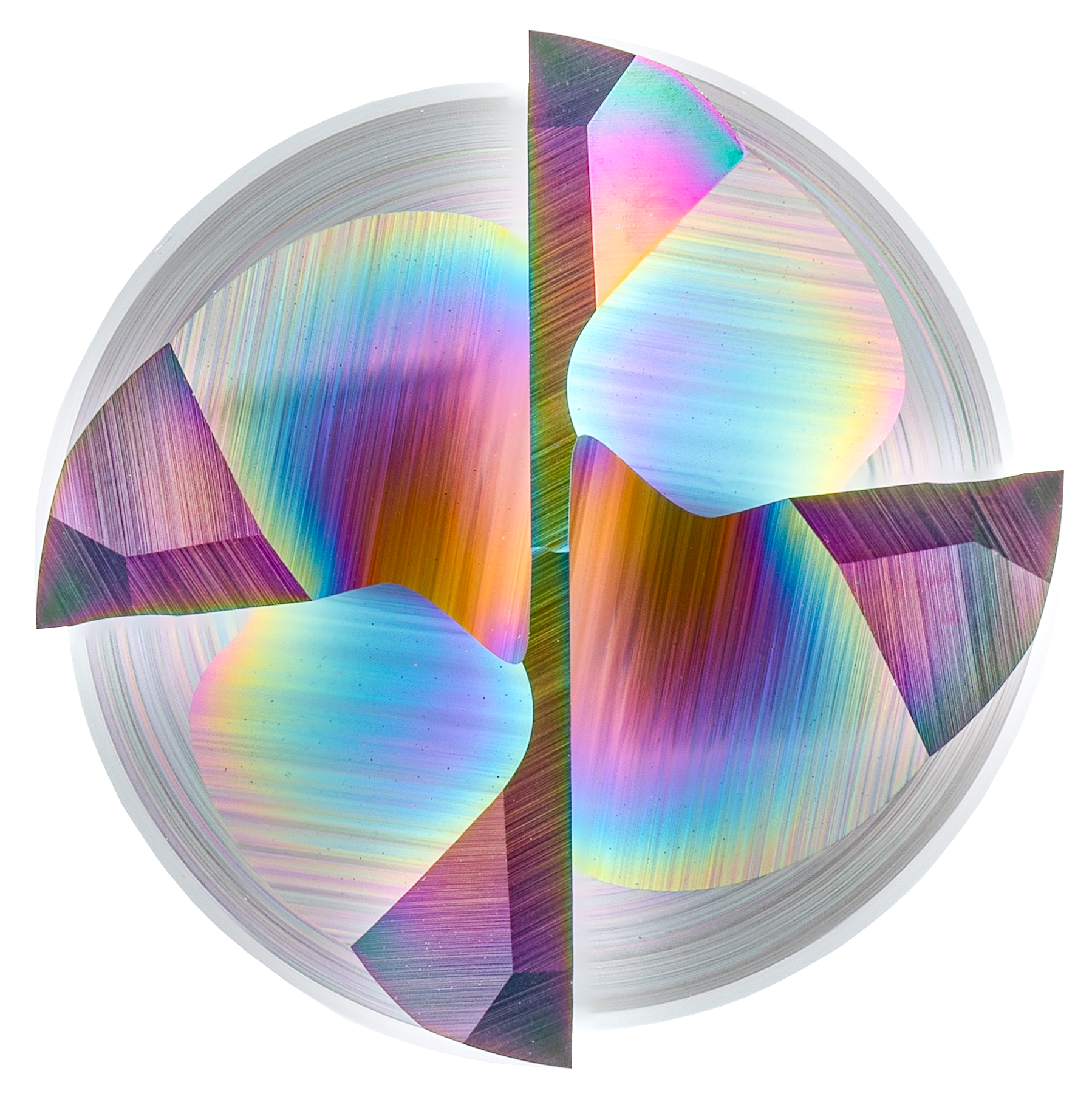

  • Reinforced face with 2 cutting edges to the center
  • Perfected for high radial depth of cutting and full slot milling
  • For process reliable, helical diving and immersion
  • For roughing and finishing, up to 1.5xD full slot
Suitability for
Roughing Finishing


EXN1-M01-0293
EXN1-M01-0293
EXN1-M01-0293
EXN1-M01-0293
EXN1-M01-0293

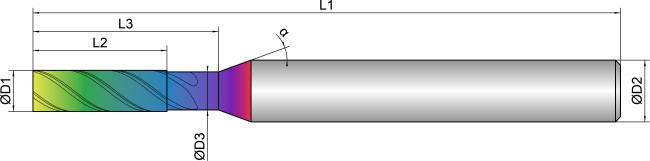

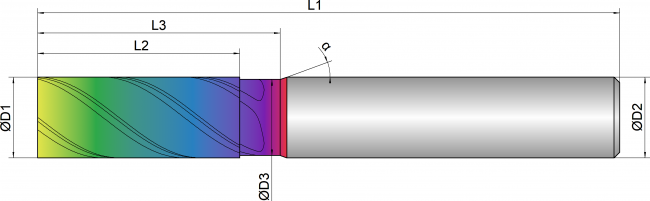

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
2 2.0 1.8 6.0 13.0 57.0 6.0 4 38 20 orange

3 3.0 2.7 10.0 14.0 57.0 6.0 4 38 20 green

4 4.0 3.7 13.0 18.0 57.0 6.0 4 38 20 orange

5 5.0 4.5 14.0 18.0 57.0 6.0 4 38 20 orange

6 6.0 5.5 16.0 21.0 57.0 6.0 4 38 20 green

7 7.0 6.5 16.0 25.0 63.0 8.0 4 38 20 red

8 8.0 7.5 22.0 27.0 63.0 8.0 4 38 20 green

10 10.0 9.4 25.0 30.0 72.0 10.0 4 38 20 green

12 12.0 11.4 28.0 33.0 83.0 12.0 4 38 20 green

14 14.0 13.0 30.0 36.0 83.0 14.0 4 38 20 green

16 16.0 15.4 36.0 41.0 92.0 16.0 4 38 20 green

18 18.0 17.0 38.0 42.0 92.0 18.0 4 38 20 orange

20 20.0 19.4 41.0 51.0 104.0 20.0 4 38 20 orange

25 25.0 24.0 52.0 62.0 125.0 25.0 4 38 20 orange
