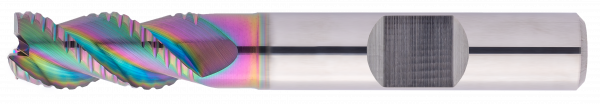

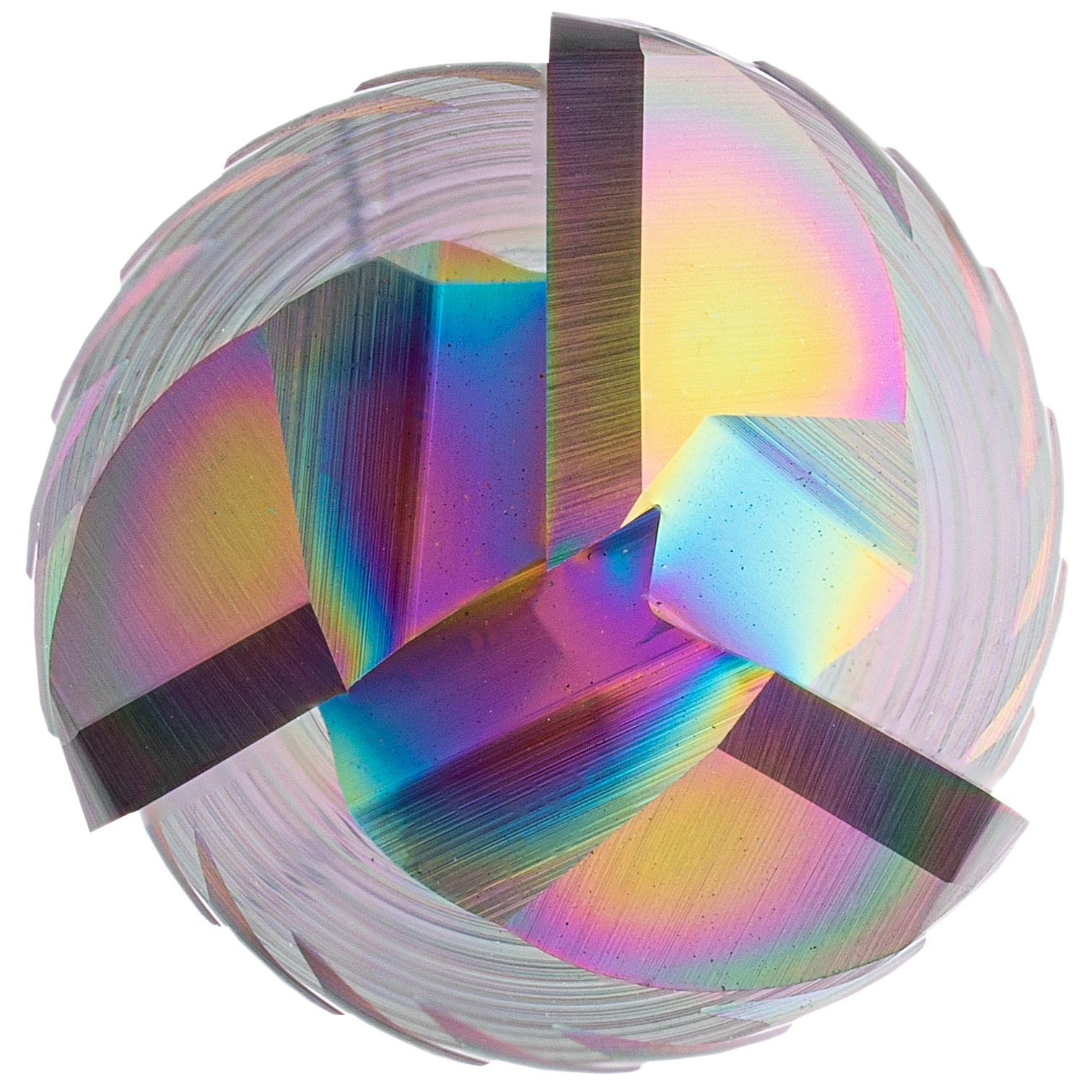

EXN1-M02-0024 | EXN1 Slotmaker Z3 2xD ASR
Cooling |
![]() ![]() ![]() ![]() |
---|---|
Tolerance | e8 |
Coating | AlphaSlide Rainbow |
Downloads | Catalog page & Cutting data |
Strategy |
|
---|---|
Applications |
|
Features |
|
- Roughing teeth for the smallest chips in volume machining
- Special helical pitch for smooth running and soft cut
- Extra large chip chambers for an extreme chip volume
- Also ideally designed for trochoidal milling
- For roughing, up to 2xD full slot
- For process reliable, helical diving and immersion
Suitability for | |
---|---|
Roughing | Finishing |
|
|

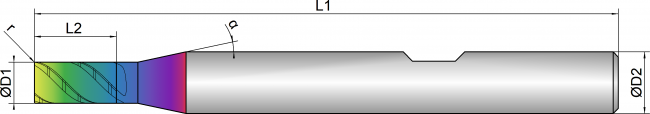

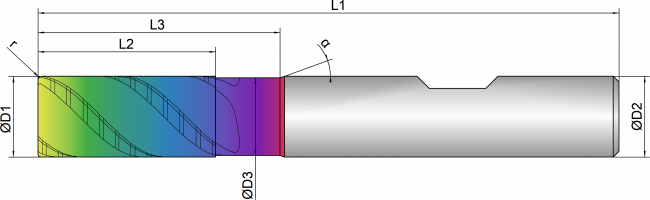

EXN1-M02-0024
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
---|---|---|---|---|---|---|---|---|---|---|---|---|
4 | 4.0 | - | 8.0 | - | 57.0 | 6.0 | 3 | 0.10 | 45 | 12 |
![]() |
|
5 | 5.0 | - | 9.0 | - | 57.0 | 6.0 | 3 | 0.20 | 45 | 12 |
![]() |
|
6 | 6.0 | 5.6 | 13.0 | 19.0 | 57.0 | 6.0 | 3 | 0.20 | 45 | 20 |
![]() |
|
8 | 8.0 | 7.6 | 19.0 | 25.0 | 63.0 | 8.0 | 3 | 0.20 | 45 | 20 |
![]() |
|
10 | 10.0 | 9.6 | 22.0 | 30.0 | 72.0 | 10.0 | 3 | 0.32 | 45 | 20 |
![]() |
|
12 | 12.0 | 11.4 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 0.32 | 45 | 20 |
![]() |
|
16 | 16.0 | 15.4 | 32.0 | 42.0 | 92.0 | 16.0 | 3 | 0.32 | 45 | 20 |
![]() |
|
20 | 20.0 | 19.4 | 41.0 | 52.0 | 104.0 | 20.0 | 3 | 0.50 | 45 | 20 |
![]() |
