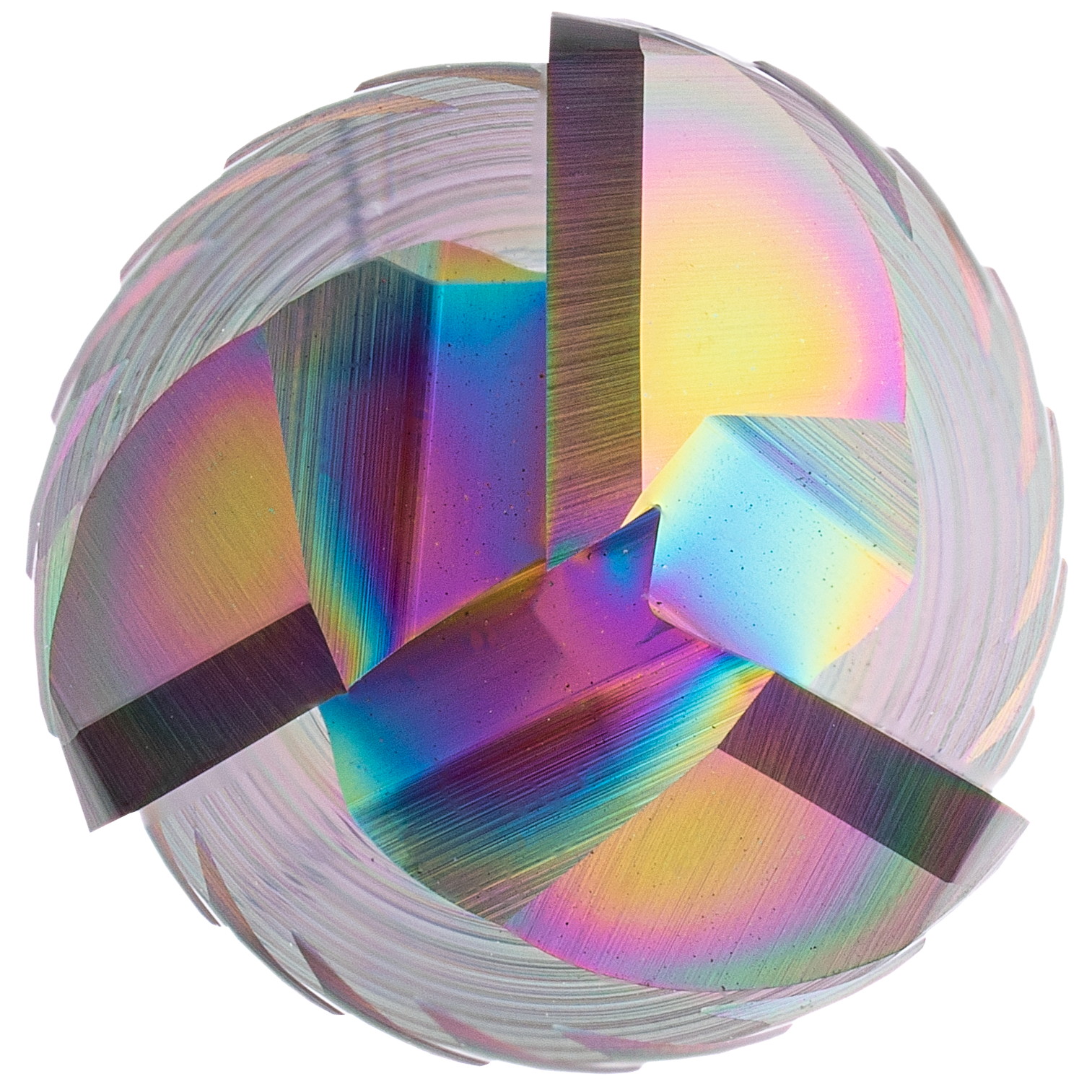

EXN1-M02-0053 | EXN1 Slotmaker Z3 3xD ASR

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch Serrated edge 3xD Center Cutting Corner radius
  • Roughing teeth for the smallest chips in volume machining
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • Also ideally designed for trochoidal milling
  • For roughing, up to 3xD full slot
  • For process reliable, helical diving and immersion
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M02-0053
EXN1-M02-0053
EXN1-M02-0053
EXN1-M02-0053
EXN1-M02-0053

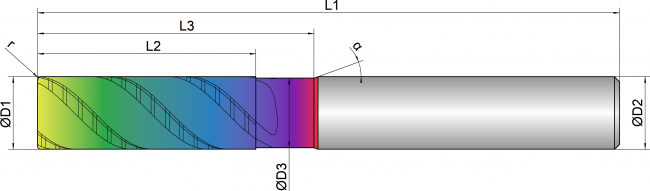

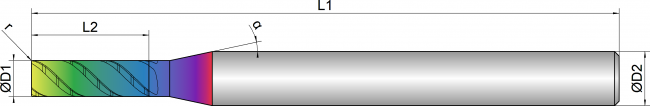

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
4 4.0 - 13.0 - 65.0 6.0 3 0.10 45 12 orange

5 5.0 - 16.0 - 65.0 6.0 3 0.20 45 12 green

6 6.0 5.6 18.0 24.0 65.0 6.0 3 0.20 45 20 green

8 8.0 7.6 24.0 30.0 70.0 8.0 3 0.20 45 20 green

10 10.0 9.6 30.0 38.0 80.0 10.0 3 0.32 45 20 red

12 12.0 11.4 36.0 46.0 93.0 12.0 3 0.32 45 20 green

16 16.0 15.4 48.0 58.0 110.0 16.0 3 0.32 45 20 green

20 20.0 19.4 60.0 74.0 125.0 20.0 3 0.50 45 20 orange
