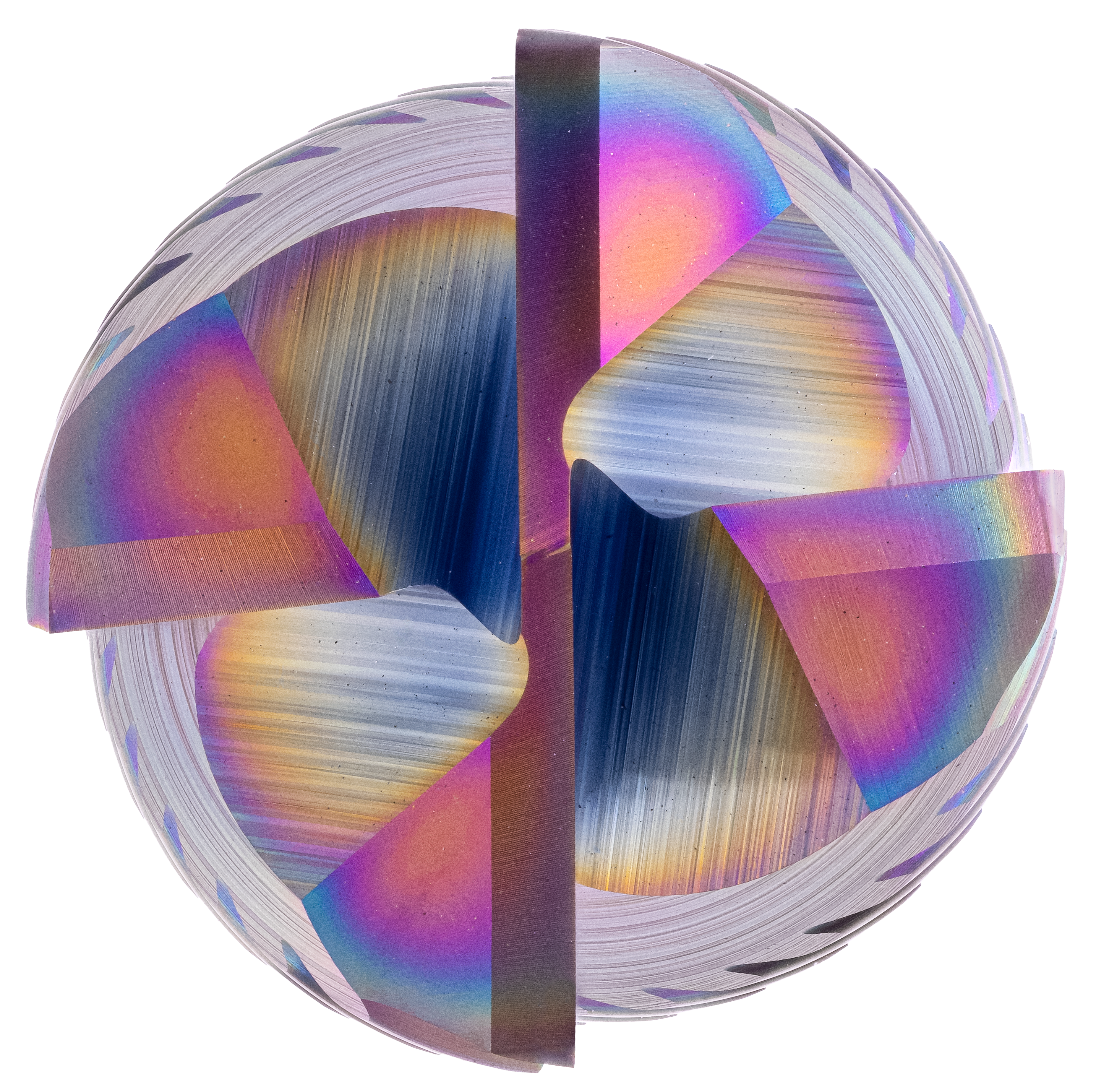

EXN1-M02-0063 | EXN1 Slotmaker Z4 4xD ASR

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming X, Y helical
Features No Weldon Unequal tooth pitch Serrated edge 4xD Dynamic helical pitch Center Cutting Corner radius
  • Special roughing profile combined with 4 teeth for the highest performance in volume machining
  • Special helical pitch for smooth running and soft cut
  • For process reliable helical immersion
  • Excellent for trochoidal milling
Suitability for
Roughing Finishing


EXN1-M02-0063
EXN1-M02-0063
EXN1-M02-0063
EXN1-M02-0063
EXN1-M02-0063

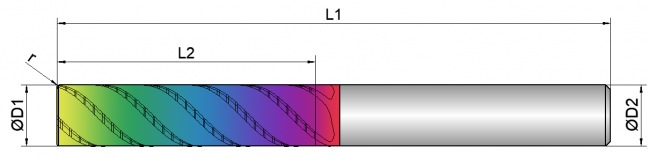

L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
