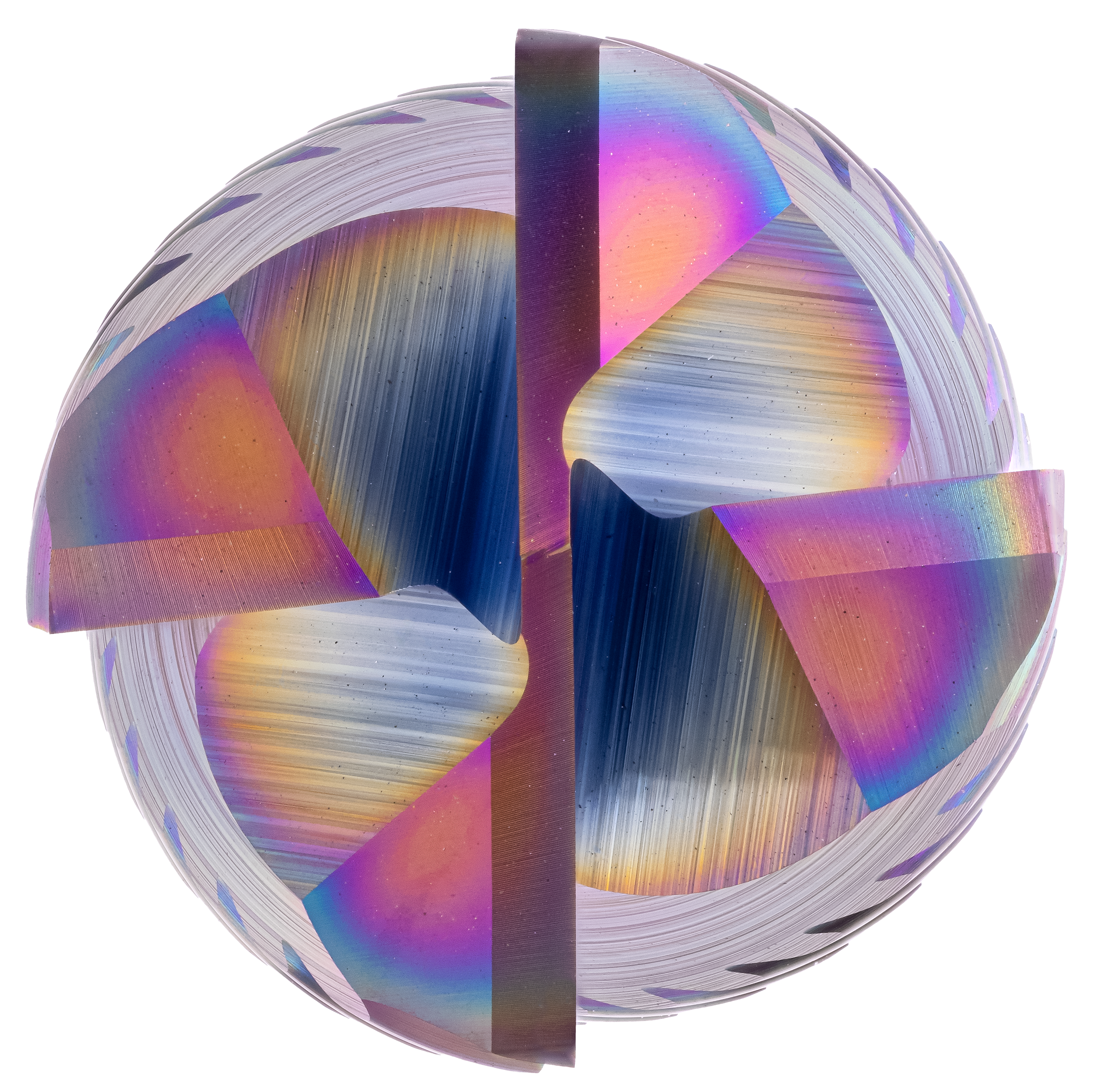

EXN1-M02-0074 | EXN1 Slotmaker Z4 5xD ASR

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch Serrated edge 5xD Dynamic helical pitch Center Cutting Corner radius
  • Special roughing profile combined with 4 teeth for the highest performance in volume machining
  • Special helical pitch for smooth running and soft cut
  • Excellent for trochoidal milling
  • For process reliable helical immersion
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M02-0074
EXN1-M02-0074
EXN1-M02-0074
EXN1-M02-0074
EXN1-M02-0074
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6 6.0 31.0 75.0 6.0 4 0.20 45 orange

8 8.0 42.0 90.0 8.0 4 0.25 45 orange

10 10.0 52.0 100.0 10.0 4 0.25 45 orange

12 12.0 62.0 120.0 12.0 4 0.30 45 orange

16 16.0 82.0 134.0 16.0 4 0.40 45 red

20 20.0 102.0 160.0 20.0 4 0.50 45 orange
