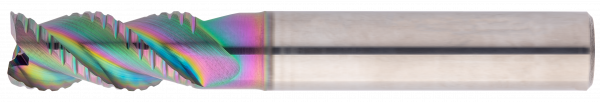

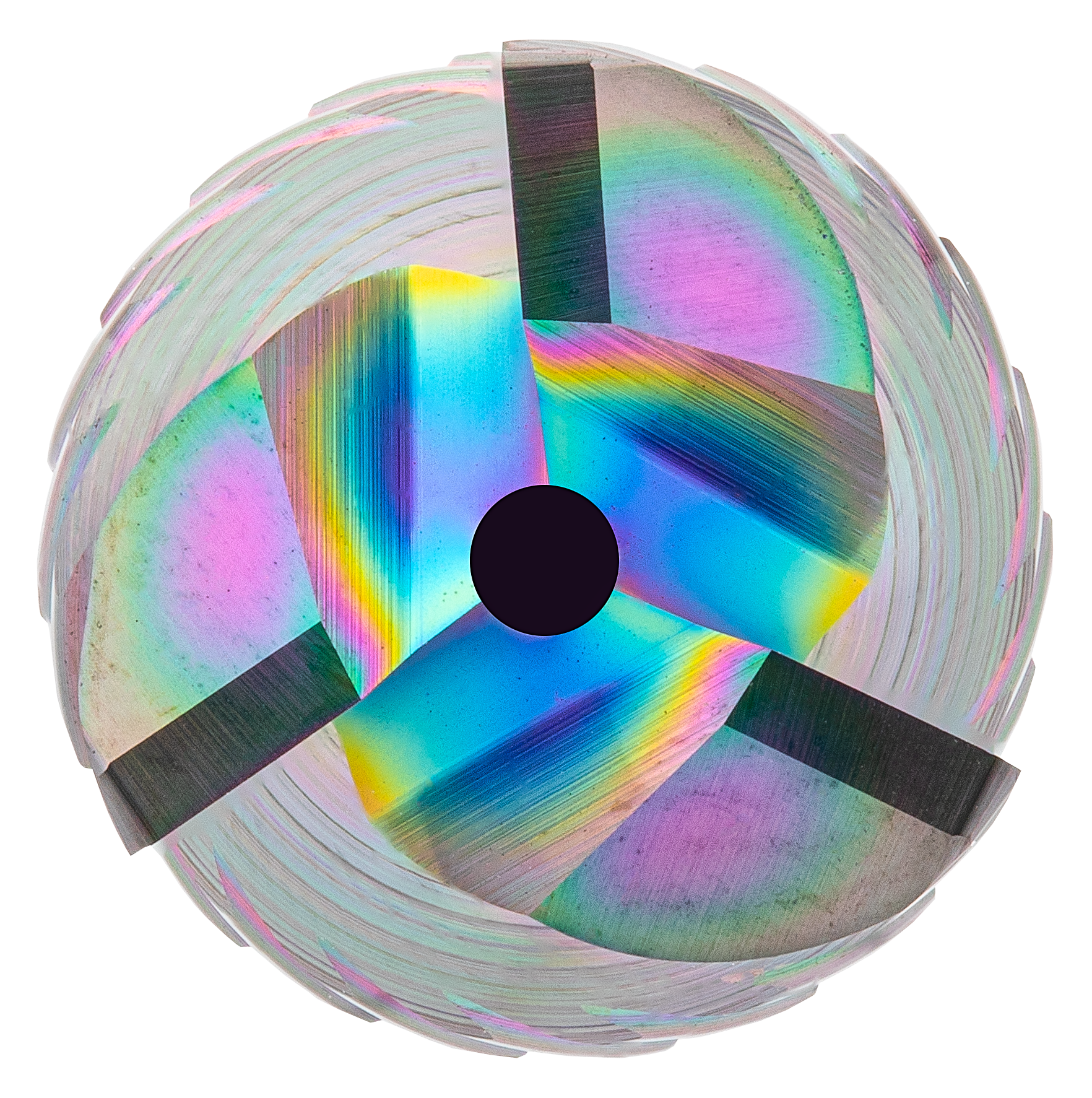

EXN1-M02-0123 | EXN1 Slotmaker Z3 2xD IC ASR

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch Coolant duct system Serrated edge 2xD Non-Center Cutting Corner radius
  • Roughing teeth for the smallest chips in volume machining
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • With central inner cooling
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical diving and immersion
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M02-0123
EXN1-M02-0123
EXN1-M02-0123
EXN1-M02-0123
EXN1-M02-0123

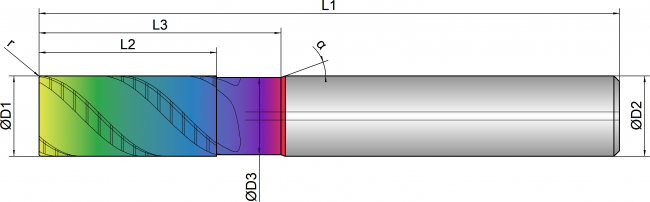

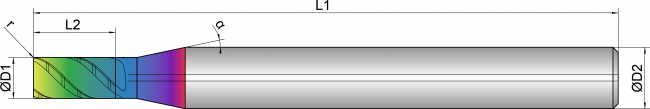

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
4 4.0 - 8.0 - 57.0 6.0 3 0.10 45 12 green

5 5.0 - 9.0 - 57.0 6.0 3 0.20 45 12 green

6 6.0 5.6 13.0 19.0 57.0 6.0 3 0.20 45 20 green

8 8.0 7.6 19.0 25.0 63.0 8.0 3 0.20 45 20 green

10 10.0 9.6 22.0 30.0 72.0 10.0 3 0.32 45 20 orange

12 12.0 11.4 26.0 36.0 83.0 12.0 3 0.32 45 20 orange

16 16.0 15.4 32.0 42.0 92.0 16.0 3 0.32 45 20 orange

20 20.0 19.4 41.0 52.0 104.0 20.0 3 0.50 45 20 orange
